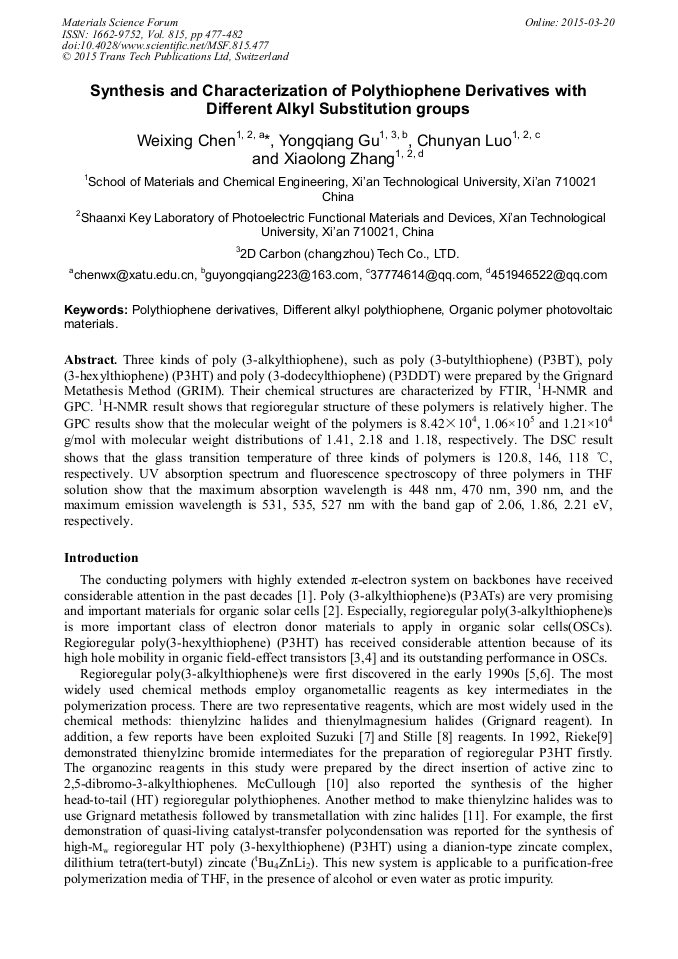

Synthesis and Characterization of Polythiophene Derivatives with Different Alkyl Substitution Groups

Abstract:

Three kinds of poly (3-alkylthiophene), such as poly (3-butylthiophene) (P3BT), poly (3-hexylthiophene) (P3HT) and poly (3-dodecylthiophene) (P3DDT) were prepared by the Grignard Metathesis Method (GRIM). Their chemical structures are characterized by FTIR, ¹H-NMR and GPC. ¹H-NMR result shows that regioregular structure of these polymers is relatively higher. The GPC results show that the molecular weight of the polymers is 8.42×10⁴, 1.06×10⁵ and 1.21×10⁴ g/mol with molecular weight distributions of 1.41, 2.18 and 1.18, respectively. The DSC result shows that the glass transition temperature of three kinds of polymers is 120.8, 146, 118 °C, respectively. UV absorption spectrum and fluorescence spectroscopy of three polymers in THF solution show that the maximum absorption wavelength is 448 nm, 470 nm, 390 nm, and the maximum emission wavelength is 531, 535, 527 nm with the band gap of 2.06, 1.86, 2.21 eV, respectively.

• Periodical: Materials Science Forum (Volume 815)
• Pages: 477-482
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.815.477
• Online since: March 2015
• Authors: Wei Xing Chen*, Yong Qiang Gu, Chun Yan Luo, Xiao Long Zhang
• Keywords: Different Alkyl Polythiophene, Organic Polymer Photovoltaic Materials, Polythiophene Derivatives

References

[1] R.D. McCullough, Adv. Mater., 1998, 10, 93-116.

[2] Z. Bao, Materials and Fabrication Needs for Low-Cost Organic Transistor Circuits, Adv. Mater. 12(3), 227-230 (2000).

DOI: 10.1002/(sici)1521-4095(200002)12:3<227::aid-adma227>3.0.co;2-u

[3] Z. Bao; A. Dodabalapur; A. J. Lovinger, Soluble and processable regioregular poly(3-hexylthiophene) for thin film field-effect transistor applications with high mobility, Appl. Phys. Lett. 69(26), 4108-4110 (1996).

DOI: 10.1063/1.117834

[4] J. -F. Chang; B. Sun; D. W. Breiby; M. M. Nielsen; T. I. Soelling; M. Giles; I. McCulloch; H. Sirringhaus, Enhanced mobility of poly(3-hexylthiophene) transistors by spin-coating from high-boiling-point solvents, Chem. Mater. 16(23), 4772-4776 (2004).

DOI: 10.1021/cm049617w

[5] R. McCullough; R. Lowe, Enhanced Electrical-Conductivity in Regio-selectively Synthesized Poly(3-alkylthiophenes), J. Chem. Soc., Chem. Commun. (1), 70-72 (1992).

DOI: 10.1039/c39920000070

[6] R. McCullough; R. Lowe; M. Jayaraman; D. Anderson, Design, Synthesis, and Control of Conducting Polymer Architectures - Structurally Homogeneous Poly(3-Alkylthiophenes), J. Org. Chem. 58(4), 904-912 (1993).

DOI: 10.1021/jo00056a024

[7] I.A. Liversedge, S.J. Higgins,M. Giles,M. Heeney, L. McCullough, Tetrahedron Lett. 47 (2006) 5143.

[8] R.D. McCullough, P.C. Ewbank, R.S. Loewe, J. Am. Chem. Soc. 119 (1997) 633.

[9] T. -A. Chen, X. Wu, R.D. Rieke, J. Am. Chem. Soc. 117 (1995) 233.

[10] (a) R.D. McCullough, R.D. Lowe, M. Jayaraman, D.L. Anderson, J. Org. Chem. 58(1993)904; (b) R.S. Lowe, S.M. Khersonsky, R.D. McCullough, Adv. Mater. 11 (1999) 250.

[11] A patent was filed July, 2005, Rieke, R.D., Rieke Metals Inc., patent is pending.

[12] Iovu, M. C.; Sheina, E. E.; Gil, R. R.; McCullough, R. D. Macromolecules 2005, 38, 8649.

[13] Miyakoshi, R.; Yokoyama, A.; Yokozawa, T. J. Am. Chem. Soc. 2005, 127, 17542.

[14] A. Nambu, H. Kondoh, I. Nakai, K. Amemiya, T. Ohta, Surf. Sci. 530 (2003) 101.

[15] SCHILINSKY P, ASAWAPIROM U, SCH ERFS U. Chem. Mater., 2005, 17: 2175 -2180.

[16] Tianliang Zhai, Lin Xie, et al., NEW CHEMICAL MATERIALS, 2011, 39(9): 84-87.

[17] J. S. Chen, C. S. Shi, Q. Fu, F. C. Zhao, Y. Hu, Y. L. Feng and D. G. Ma, J. Mater. Chem., 2012, 22, 5164.

[18] P Pfeifer and D Avnir, J. Chem. Phys., 1983, 79, 3558-3565.

[19] M. Ranger, D. Rondeau and M. Leclerc, Macromolecules, 1997, 30, 7686-7691.
