Full SiC DCDC-Converter with a Power Density of more than 100kW/dm3

Otto Kreutzer; Martin März; Hideki Nakata

doi:10.4028/www.scientific.net/MSF.821-823.884

Paper Titles

SiC UV Detectors under Heavy Ions Irradiation
p.867

High Voltage Wide Bandgap Photoconductive Switching
p.871

Study of the Stability of 4H-SiC Detectors by Thermal Neutron Irradiation
p.875

Development of SiC Power Module and Loss Evaluation in DC-DC Converter Circuit Application
p.879

Full SiC DCDC-Converter with a Power Density of more than 100kW/dm³
p.884

Comparison of Turn-Off Strategies for SiC Thyristors
p.889

High Current (1225A) Optical Triggering of 18-kV 4H-SiC Thyristor in Purely Inductive Load Circuit
p.893

Design and Characterization of 500 °C Schmitt Trigger in 4H-SiC
p.897

Hetero-Epitaxial Single Crystal 3C-SiC Opto-Mechanical Pressure Sensor
p.902

HomeMaterials Science ForumMaterials Science Forum Vols. 821-823Full SiC DCDC-Converter with a Power Density of...

Full SiC DCDC-Converter with a Power Density of more than 100kW/dm³

Abstract:

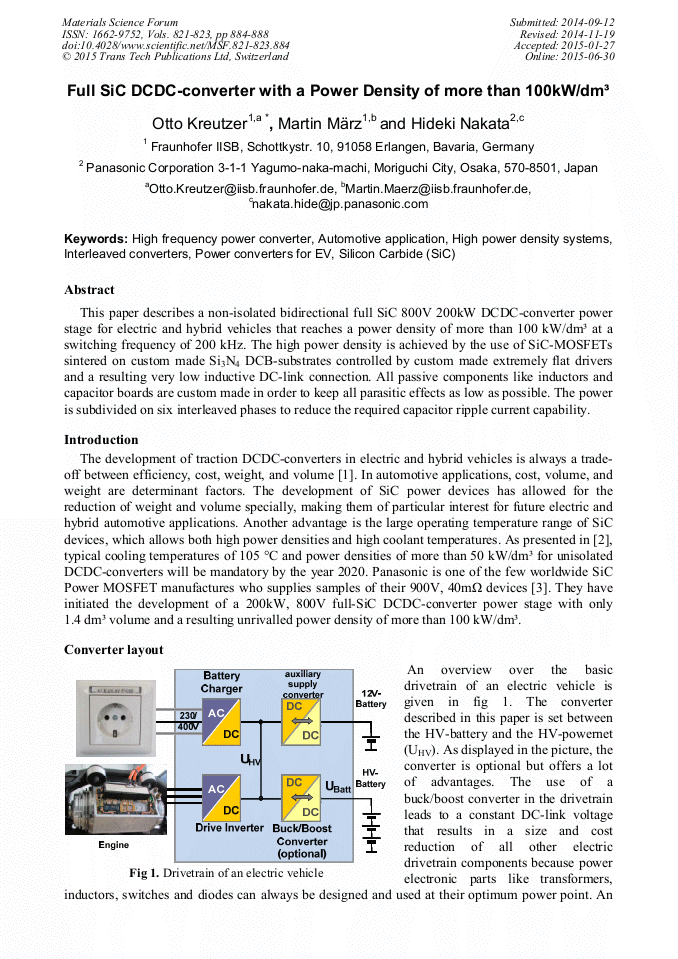

This Paper describes a non-isolated bidirectional full SiC 800V 200kW DCDC-converter power stage for electric and hybrid vehicles that reaches a power density of more than 100 kW/dm3 at a switching frequency of 200 kHz. The high power density is achieved by the use of SiC-MOSFETs sintered on custom made Si₃N₄ DCB-substrates controlled by custom made extremely flat drivers and a resulting very low inductive DC-link connection. All passive components like inductors and capacitor boards are custom made in order to keep all parasitic effects as low as possible. The power is subdivided on six interleaved phases to reduce the required capacitor ripple current capability.
