Fe-Si-Al Alloys Prepared by a Spark Plasma Sintering Technique

Abstract:

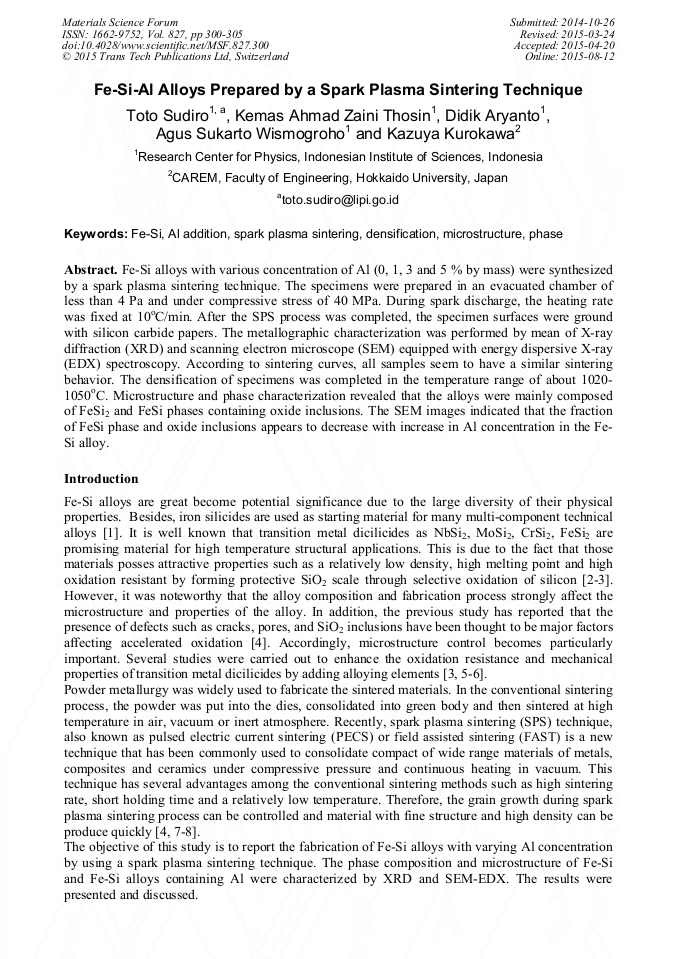

Fe-Si alloys with various concentration of Al (0, 1, 3 and 5 % by mass) were synthesized by a spark plasma sintering technique. The specimens were prepared in an evacuated chamber of less than 4 Pa and under compressive stress of 40 MPa. During spark discharge, the heating rate was fixed at 10°C/min. After the SPS process was completed, the specimen surfaces were ground with silicon carbide papers. The metallographic characterization was performed by mean of X-ray diffraction (XRD) and scanning electron microscope (SEM) equipped with energy dispersive X-ray (EDX) spectroscopy. According to sintering curves, all samples seem to have a similar sintering behavior. The densification of specimens was completed in the temperature range of about 1020-1050°C. Microstructure and phase characterization revealed that the alloys were mainly composed of FeSi₂ and FeSi phases containing oxide inclusions. The SEM images indicated that the fraction of FeSi phase and oxide inclusions appears to decrease with increase in Al concentration in the Fe-Si alloy.

• Periodical: Materials Science Forum (Volume 827)
• Pages: 300-305
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.827.300
• Online since: August 2015
• Authors: Toto Sudiro*, Kemas Ahmad Zaini Thosin, Didik Aryanto, Agus Sukarto Wismogroho, Kazuya Kurokawa
• Keywords: Al Addition, Densification, Fe-Si, Microstructure, Phase, Spark Plasma Sintering

References

[1] A. Il'inskii, S. Slyusarenko, O. Slukhovskii, I. Kaban, W. Hoyer, Structural properties of liquid Fe-Si alloys, Journal of Non-Crystalline Solid 306 (2002) 90-98.

DOI: 10.1016/s0022-3093(02)01051-7

[2] Kazuya Kurokawa, Akira Yamauchi, Classification of Oxidation Behavior of Disilicides, Solid State Phenomena 127 (2007) 227-232.

DOI: 10.4028/www.scientific.net/ssp.127.227

[3] F. Zhang, L. T. Zhang, A. D. Shan, J. S. Wu, Microstructural effect on oxidation kinetics of NbSi2 at 1023 K, Journal of Alloys and Compounds 422 (2006) 308-312.

DOI: 10.1016/j.jallcom.2005.12.015

[4] J. Kuchino, K. Kurokawa, T. Shibayama, H. Takahashi, Effect of microstructure on oxidation resistance of MoSi2 fabricated by spark plasma sintering, Vacuum 73 (2004) 623–628.

DOI: 10.1016/j.vacuum.2003.12.081

[5] J. Cheng, S. Yi, J. S. Park, Oxidation behavior of Nb–Si–B alloys with the NbSi2 coating layer formed by a pack cementation technique, Int. Journal of Refractory Metals and Hard Materials 41 (2013) 103-109.

DOI: 10.1016/j.ijrmhm.2013.02.010

[6] R. Mitra, V. V. Rama Rao, A. Venugopal Rao, Effect of small aluminum additions on microstructure and mechanical properties of molybdenum di-silicide, Intermetallics 7 (1999) 213-232.

DOI: 10.1016/s0966-9795(98)00064-8

[7] M. Tokita, Trends in Advanced SPS Spark Plasma Sintering Systems and Technology, J. Soc. Powder Technol. Jpn. 30 (1993) 790-804.

[8] M. Suárez, A. Fernández, J.L. Menéndez, R. Torrecillas, H. U. Kessel, J. Hennicke, R. Kirchner and T. Kessel, Challenges and Opportunities for Spark Plasma Sintering: A Key Technology for a New Generation of Materials, in Burcu Ertuğ (Ed. ), Sintering Applications, InTech, Chapters published February 06, 2013 under CC BY 3. 0 license.

DOI: 10.5772/53706

[9] A. Yamauchi, K. Yoshimi, K. Kurokawa, S. Hanada, Synthesis of Mo-Si-B in situ composites by mechanical alloying, Journal of Alloys and Compounds 434–435 (2007) 420–423.

DOI: 10.1016/j.jallcom.2006.08.218

[10] K. Kurokawa, H. Houzumi, I. Saeki, H. Takahashi, Low temperature oxidation of fully dense and porous MoSi2, Materials Science and Engineering A261 (1999) 292–299.

DOI: 10.1016/s0921-5093(98)01078-8
