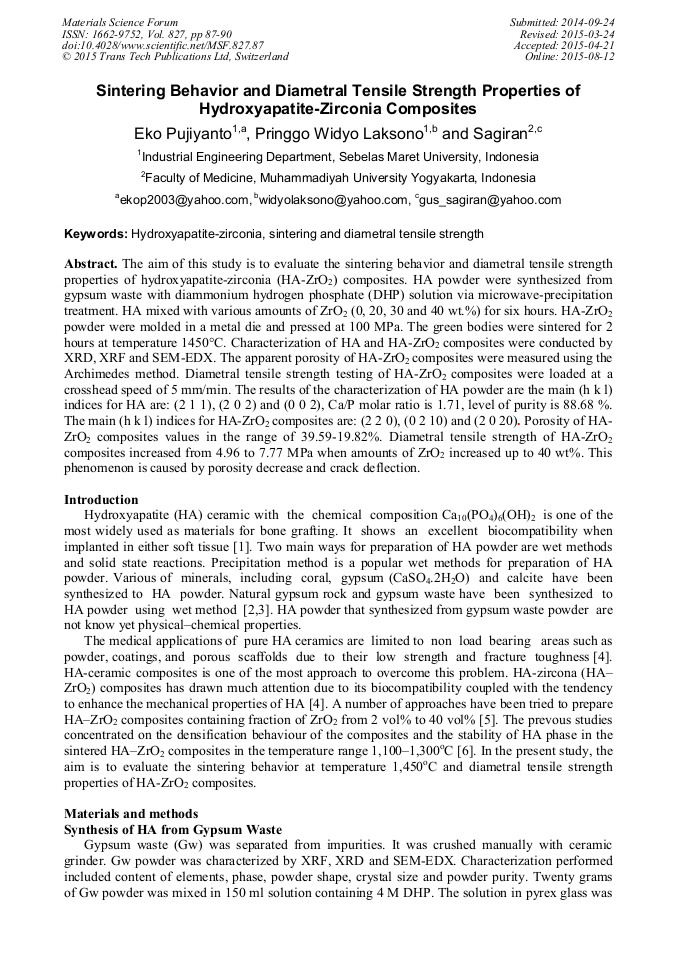

Sintering Behavior and Diametral Tensile Strength Properties of Hydroxyapatite-Zirconia Composites

Abstract:

. The aim of this study is to evaluate the sintering behavior and diametral tensile strength properties of hydroxyapatite-zirconia (HA-ZrO₂) composites. HA powder were synthesized from gypsum waste with diammonium hydrogen phosphate (DHP) solution via microwave-precipitation treatment. HA mixed with various amounts of ZrO₂ (0, 20, 30 and 40 wt.%) for six hours. HA-ZrO₂ powder were molded in a metal die and pressed at 100 MPa. The green bodies were sintered for 2 hours at temperature 1450°C. Characterization of HA and HA-ZrO₂ composites were conducted by XRD, XRF and SEM-EDX. The apparent porosity of HA-ZrO₂ composites were measured using the Archimedes method. Diametral tensile strength testing of HA-ZrO₂ composites were loaded at a crosshead speed of 5 mm/min. The results of the characterization of HA powder are the main (h k l) indices for HA are: (2 1 1), (2 0 2) and (0 0 2), Ca/P molar ratio is 1.71, level of purity is 88.68 %. The main (h k l) indices for HA-ZrO₂ composites are: (2 2 0), (0 2 10) and (2 0 20). Porosity of HA-ZrO₂ composites values in the range of 39.59-19.82%. Diametral tensile strength of HA-ZrO₂ composites increased from 4.96 to 7.77 MPa when amounts of ZrO₂ increased up to 40 wt%. This phenomenon is caused by porosity decrease and crack deflection.

• Periodical: Materials Science Forum (Volume 827)
• Pages: 87-90
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.827.87
• Online since: August 2015
• Authors: Eko Pujiyanto*, Pringgo Widyo Laksono, Sagiran Sagiran
• Keywords: Diametral Tensile Strength, Hydroxyapatite-Zirconia, Sintering Strength

References

[1] M.K. Hilal, M.Y. Shareef, K.A. Maher, R.V. Noort, Fabrication and characterisation of a calcium phosphate-zirconia composites 3 (2012) 112-119.

[2] E. Pujiyanto, P.W. Laksono, J. Triyono, Synthesis and characterization of hydroxyapatite powder from natural gypsum rock, Advanced Materials Research 893 (2014) 56-59.

DOI: 10.4028/www.scientific.net/amr.893.56

[3] H. Katsuki, and S. Furuta, Microwave Versus Conventional Hydrothermal Synthesis of Hydroxyapatite Crystals from Gypsum, Journal American Ceramic Society 87 (1999) 2257-2259.

DOI: 10.1111/j.1151-2916.1999.tb02073.x

[4] R.R. Rao, T. S Kannan, Synthesis and sintering of hidroxyapatite-zirconia composites, Material Science and Engineering C 20 (2002) 187-193.

[5] Y. Nayak, R. P. Rana, S. K. Pratihar, S. Bhattacharyya, Pressureless sintering of dense hydroxyapatite–zirconia composites, J Mater Sci: Mater Med. 19 (2008) 2437–2444.

DOI: 10.1007/s10856-008-3371-z

[6] E.S. Ahn, N.J. Gleason, J.Y. Ying, The Effect of Zirconia Reinforcing Agents on the Microstructure and Mechanical Properties of Hydroxyapatite-Based Nanocomposites, J. Am. Ceram. Soc. 88 (2005) 3374-3379.

DOI: 10.1111/j.1551-2916.2005.00636.x

[7] Cullity, B.D. and Stock, S.R., Elements of X-Ray Diffraction, 3th Edition, Prentice Hall, (2001).

[8] German, R.M., Powder Metallurgy Science, 2th Edition, Metal Powder Industries Federation, New Jersey. (1994).

[9] Corbridge, D.E.C., Phosphorus: An Outline of Its Chemistry, Biochemistry and Technology, Elsevier, Amsterdam, (1990).
