Effect of Natural Aging on RT and HSR Superplasticity of Ultrafine Grained Zn-22Al Alloy

Abstract:

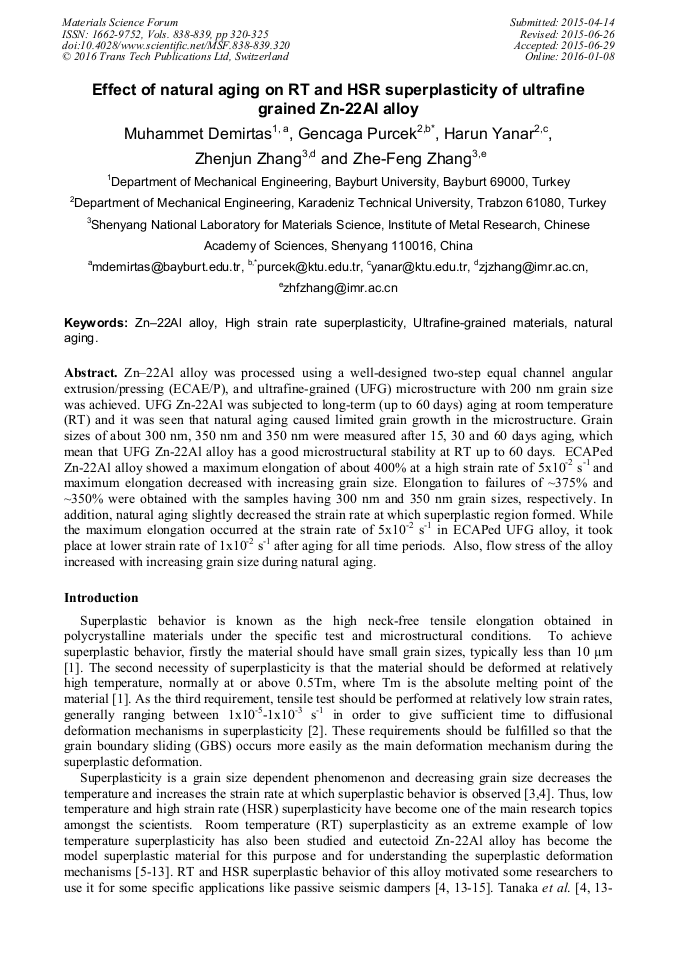

Zn–22Al alloy was processed using a well-designed two-step equal channel angular extrusion/pressing (ECAE/P), and ultrafine-grained (UFG) microstructure with 200 nm grain size was achieved. UFG Zn-22Al was subjected to long-term (up to 60 days) aging at room temperature (RT) and it was seen that natural aging caused limited grain growth in the microstructure. Grain sizes of about 300 nm, 350 nm and 350 nm were measured after 15, 30 and 60 days aging, which mean that UFG Zn-22Al alloy has a good microstructural stability at RT up to 60 days. ECAPed Zn-22Al alloy showed a maximum elongation of about 400% at a high strain rate of 5x10^-2 s^-1 and maximum elongation decreased with increasing grain size. Elongation to failures of ~375% and ~350% were obtained with the samples having 300 nm and 350 nm grain sizes, respectively. In addition, natural aging slightly decreased the strain rate at which superplastic region formed. While the maximum elongation occurred at the strain rate of 5x10^-2 s^-1 in ECAPed UFG alloy, it took place at lower strain rate of 1x10^-2 s^-1 after aging for all time periods. Also, flow stress of the alloy increased with increasing grain size during natural aging.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 320-325
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.320
• Online since: January 2016
• Authors: Muhammet Demirtas, Gençağa Pürçek*, Harun Yanar, Zhen Jun Zhang, Zhe Feng Zhang
• Keywords: High Strain Rate Superplasticity, Natural Aging, Ultrafine-Grained Materials, Zn–22Al Alloy

References

[1] T.G. Langdon, Seventy-five years of superplasticity: historic developments and new opportunities, J. Mater. Sci. 44 (2009) 5998-6010.

DOI: 10.1007/s10853-009-3780-5

[2] O.A. Kaibyshev, Superplasticity of Alloys Intermetallides and Ceramics, first ed., Springer-Verlag, Berlin, (1992).

[3] M. Kawasaki, T.G. Langdon, Principles of superplasticity in ultrafine-grained materials, J. Mater. Sci. 42 (2007) 1782–1796.

DOI: 10.1007/s10853-006-0954-2

[4] T. Tanaka, K. Makii, H. Ueda, A. Kushibe, M. Kohzu, K. Higashi, Study on practical application of a new seismic damper using a Zn–Al alloy with a nanocrystalline microstructure, Int. J. Mech. Sci. 45 (2003) 1599–1612.

DOI: 10.1016/j.ijmecsci.2003.12.001

[5] S.H. Xia, J. Wang, J.T. Wang, J.Q. Liu, Improvement of room-temperature superplasticity in Zn–22 wt. %Al alloy, Mater. Sci. Eng. A 493 (2008) 111-115.

DOI: 10.1016/j.msea.2007.07.100

[6] T. Hirata, T. Tanaka, S.W. Chung, Y. Takigawa, K. Higashi, Relationship between deformation behavior and microstructural evolution of friction stir processed Zn–22wt. % Al alloy, Scr. Mater. 56 (2007) 477-480.

DOI: 10.1016/j.scriptamat.2006.11.022

[7] T. Tanaka, H. Watanabe, K. Higashi, Microstructure in Zn–Al Alloys after Equal-Channel-Angular Extrusion, Mater. Trans. 44 (2003) 1891-1894.

DOI: 10.2320/matertrans.44.1891

[8] T. Tanaka, K. Higashi, Superplasticity at Room Temperature in Zn-22Al Alloy Processed by Equal-Channel-Angular Extrusion, Mater. Trans. 45, (2004) 1261-1265.

DOI: 10.2320/matertrans.45.1261

[9] P. Kumar, C. Xu, T.G. Langdon, Mechanical characteristics of a Zn–22% Al alloy processed to very high strains by ECAP, Mater. Sci. Eng. A 429 (2006) 324-328.

DOI: 10.1016/j.msea.2006.05.044

[10] Y. Huang, T.G. Langdon, Characterization of deformation processes in a Zn-22% Al alloy using atomic force microscopy, J. Mater. Sci. 37 (2002) 4993-4998.

[11] C.F. Yang, J.H. Pan, M.C. Chuang, Achieving high strain rate superplasticity via severe plastic deformation processing, J. Mater. Sci. 43 (2008) 6260-6266.

DOI: 10.1007/s10853-008-2909-2

[12] M. Demirtas, G. Purcek, H. Yanar, Z.J. Zhang, Z.F. Zhang, Improvement of high strain rate and room temperature superplasticity in Zn–22Al alloy by two-step equal-channel angular pressing, Mater. Sci. Eng. A 620 (2014) 233-240.

DOI: 10.1016/j.msea.2014.09.114

[13] T. Tanaka, K. Makii, A. Kushibe, M. Kohzu, K. Higashi, Capability of superplastic forming in the seismic device using Zn–22Al eutectoid alloy, Scr. Mater. 49 (2003) 361-366.

DOI: 10.1016/s1359-6462(03)00328-2

[14] T. Tanaka, S.W. Chung, L.F. Chaing, K. Makii, A. Kushibe, M. Kohzu, K. Higashi, Post-characteristics of formed Zn-22 mass%Al alloy to seismic damper for general residence, Mater. Trans. 45 (2004) 2542-2546.

DOI: 10.2320/matertrans.45.2542

[15] T. Tanaka, S.W. Chung, L.F. Chaing, K. Makii, A. Kushibe, M. Kohzu, K. Higashi, On applying superplastic Zn-22 wt. %Al alloy with nanocrystalline grains to general residential seismic dampers, Mater. Sci. Eng. A 410-411 (2005) 109-113.

DOI: 10.1016/j.msea.2005.08.115
