Superplastic Behavior of an AA2139 Subjected to ECAP

Article Preview

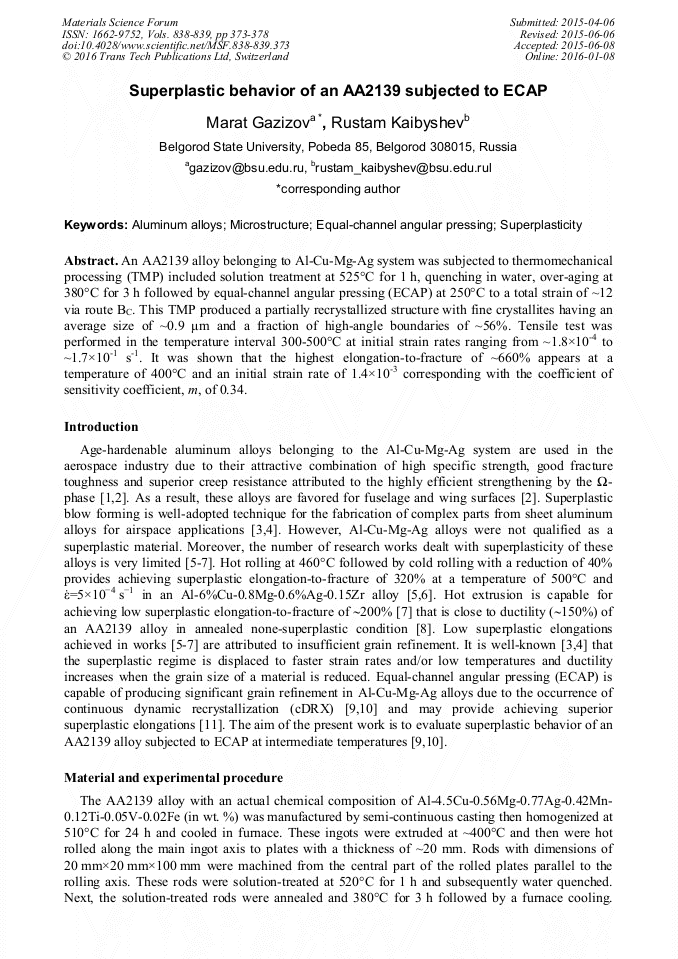

Abstract:

An AA2139 alloy belonging to Al-Cu-Mg-Ag system was subjected to thermomechanical processing (TMP) included solution treatment at 525°C for 1 h, quenching in water, over-aging at 380°C for 3 h followed by equal-channel angular pressing (ECAP) at 250°C to a total strain of ~12 via route BC. This TMP produced a partially recrystallized structure with fine crystallites having an average size of ~0.9 μm and a fraction of high-angle boundaries of ~56%. Tensile test was performed in the temperature interval 300-500°C at initial strain rates ranging from ~1.8×10-4 to ~1.7×10-1 s-1. It was shown that the highest elongation-to-fracture of ~660% appears at a temperature of 400°C and an initial strain rate of 1.4×10-3 corresponding with the coefficient of sensitivity coefficient, m, of 0.34.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 838-839)

Pages:

373-378

Citation:

Online since:

January 2016

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] I.J. Polmear, Light Alloys: From Traditional Alloys to Nanocrystals, fourth ed., Butterworth-Heinemann/Elsevier, UK, (2006).

DOI: 10.1017/s000192400008670x

Google Scholar

[2] I.J. Polmear, G. Pons, Y. Barbaux, H. Octor, C. Sanchez, A.J. Morton, W.E. Borbidge, S. Rogers, After concord: evaluation of creep resistant Al-Cu-Mg-Ag alloys, Mater. Sci. Tech. 15 (1999) 861–868.

DOI: 10.1179/026708399101506599

Google Scholar

[3] O.A. Kaibyshev, Superplasticity of Alloy, Intermetallics and Ceramics, Springer-Verlag, Berlin, (1992).

Google Scholar

[4] J. Pilling, N. Ridley, Superplasticity in Crystalline Solids, The Institute of Metals, London, (1989).

Google Scholar

[5] D.H. Xiao, M. Song, Superplastic deformation of an as-rolled Al-Cu-Mg-Ag alloy, Mater. Des. 30 (2009) 424–426.

DOI: 10.1016/j.matdes.2008.05.001

Google Scholar

[6] D.H. Xiao, J.N. Wang, K.H. Chen, B.Y. Huang, Superplastic deformation of a heat resistant Al-Cu-Mg-Ag-Mn alloy, J. Mater. Proc. Tech. 209 (2009) 3300–3305.

DOI: 10.1016/j.jmatprotec.2008.07.053

Google Scholar

[7] D.Y. Ding, J.N. Wang, D.H. Xiao, K. Xu, H.L. Yang, Superplastic deformation of Al-Cu-Mg-Ag alloys at elevated temperatures, J. Mater. Sci. Lett. 22 (2003) 703-705.

Google Scholar

[8] D. Tagirov, D. Zhemchuzhnikova, M. Gazizov, R. Kaibyshev, Effect of annealing on structure and mechanical behavior of an AA2139 alloy, Mater. Sci. Forum 783-786 (2014) 258-263.

DOI: 10.4028/www.scientific.net/msf.783-786.258

Google Scholar

[9] M. Gazizov, S. Malopheyev, R. Kaibyshev, The effect of second-phase particles on grain refinement during equal-channel angular pressing in an Al-Cu-Mg-Ag alloy, J. Mater. Sci. 50(2) (2015) 990-1005.

DOI: 10.1007/s10853-014-8659-4

Google Scholar

[10] M. Gazizov, R. Kaibyshev, Effect of over-aging on the microstructural evolution in an Al-Cu-Mg-Ag alloy during ECAP at 300°C, J. Alloy Compd. 527 (2012) 163–175.

DOI: 10.1016/j.jallcom.2012.02.144

Google Scholar

[11] A. Mogucheva, D. Tagirova, R. Kaibyshev, Superplasticity in a 5024 aluminium alloy processed by severe plastic deformation, Mater. Sci. Forum. 735 (2013) 353-358.

DOI: 10.4028/www.scientific.net/msf.735.353

Google Scholar

[12] M. Ferry, N.E. Hamilton, F.J. Humphreys, Continuous and discontinuous grain coarsening in a fine-grained particle-containing Al-Sc alloy, Acta Mater. 53 (2005) 1097–1109.

DOI: 10.1016/j.actamat.2004.11.006

Google Scholar
