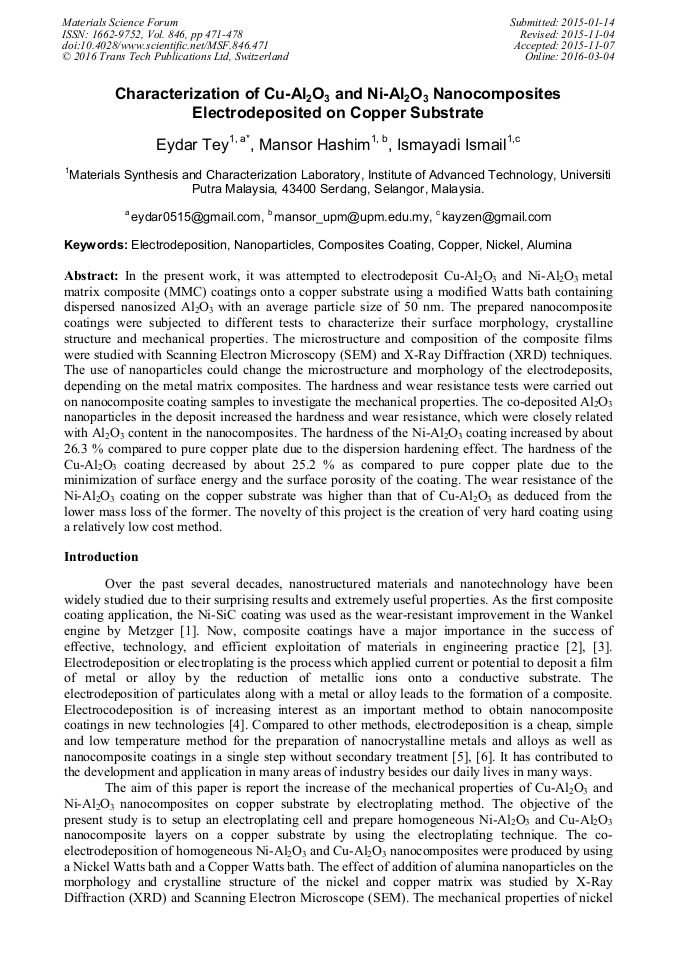

Characterization of Cu-Al₂O₃ and Ni-Al₂O₃ Nanocomposites Electrodeposited on Copper Substrate

Abstract:

In the present work, it was attempted to electrodeposit Cu-Al₂O₃ and Ni-Al₂O₃ metal matrix composite (MMC) coatings onto a copper substrate using a modified Watts bath containing dispersed nanosized Al₂O₃ with an average particle size of 50 nm. The prepared nanocomposite coatings were subjected to different tests to characterize their surface morphology, crystalline structure and mechanical properties. The microstructure and composition of the composite films were studied with Scanning Electron Microscopy (SEM) and X-Ray Diffraction (XRD) techniques. The use of nanoparticles could change the microstructure and morphology of the electrodeposits, depending on the metal matrix composites. The hardness and wear resistance tests were carried out on nanocomposite coating samples to investigate the mechanical properties. The co-deposited Al₂O₃ nanoparticles in the deposit increased the hardness and wear resistance, which were closely related with Al₂O₃ content in the nanocomposites. The hardness of the Ni-Al₂O₃ coating increased by about 26.3 % compared to pure copper plate due to the dispersion hardening effect. The hardness of the Cu-Al₂O₃ coating decreased by about 25.2 % as compared to pure copper plate due to the minimization of surface energy and the surface porosity of the coating. The wear resistance of the Ni-Al₂O₃ coating on the copper substrate was higher than that of Cu-Al2O3 as deduced from the lower mass loss of the former. The novelty of this project is the creation of very hard coating using a relatively low cost method.

• Periodical: Materials Science Forum (Volume 846)
• Pages: 471-478
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.846.471
• Online since: March 2016
• Authors: Eydar Tey*, Mansor Hashim, Ismayadi Ismail
• Keywords: Alumina, Composites Coating, Copper, Electrodeposition, Nanoparticles, Nickel

References

[1] W. Metzger, R. Oft, G. Laux, and H. Harst, Electrodeposition of dispersed layers, Galvanoteknik 61 (1) (1970) 998.

[2] M. Schlesinger, and M. Paunovic, Modern Electroplating 5th Edition, Ohn Wiley & Sons Inc., New York, (2001) 33-114.

[3] I. Capek. Nanocomposite Structures and Dispersions, Elsevier, (2006) 1-69.

[4] L. Benea, P. L. Bonora, A. Borello, S. Martelli, F. Wenger, P. Ponthiaux and J. Galland, Sol. St. Ion. 151 (2002) 89-95.

[5] N. S. Qu, D. Zhu, K. C. Chan, and W. N. Lei, Surf Coat Tech 168 (2003) 123-128.

[6] A. Góral, J. Deda, E. Bełtowska-Lehman, and B. Major, Arch Metall Mater 53 (2008) 979-984.

[7] M. Masoudi, Synthesis and characterization of Ni-Al2O3-Cr, Ni-Al2O3-SiC and Ni-SiC-Cr nano hybrid composite coatings, Universiti Putra Malaysia, (2012) 51-123.

[8] A. Akarapu, Surface Property Modification of Copper By Nanocomposite Coating, Department of Metallurgical & Materials Engineering National Institute of Technology, Rourkela, (2011) 1-61.

[9] T. Borkar, Electrodeposition of Nickel Composite Coatings, Mumbai University, (2010) 33-75.

[10] P. Scherrer, Bestimmung der Grösse und der inneren Struktur von Kolloidteilchen mittels Röntgenstrahlen, Nachr. Ges. Wiss. Göttingen 26 (1918) 98-100.

DOI: 10.1007/978-3-662-33915-2_7

[11] J.I. Langford and A.J.C. Wilson, Scherrer after Sixty Years: A Survey and Some New Results in the Determination of Crystallite Size, J. Appl. Cryst. 11 (1978) 102-113.

DOI: 10.1107/s0021889878012844

[12] E. Beltowska-Lehman, A. Goral, and P. Indyka, Electrodeposition and Characterization of Ni/Al2O3 Nanocomposite Coatings, Archives of Metallurgy and Materials, 56 (4) (2011) 1-13.

DOI: 10.2478/v10172-011-0101-1

[13] N.M. Deraz, Structural and Morphological Characteristics of Copper-Alumina Nano-Composite, Int. J. Electrochem. Sci., 8 (2013) 5213 – 5222.

DOI: 10.1016/s1452-3981(23)14675-x

[14] G. Cârâc, C. Iticescu, L. Benea, Th. Lampke, and S. Steinhäuser, The Effect of Nano- Al2O3 Dispersed Phase In Nickel Matrix Electrodeposite,. Revue Roumaine de Chimie, 52 (11) (2007) 1057–1062.

[15] H. Gül, F. Kılıç, S. Aslan, A. Alp, and H. Akbulut, Characteristics of electro-co-deposited Ni–Al2O3 nano-particle reinforced metal matrix composite (MMC) coatings, Wear 267 (5-8) (2009) 976-990.

DOI: 10.1016/j.wear.2008.12.022

[16] A. Goral, E. Beltowaska-Lehman, and P. Indyka, Structure characterization of Ni/Al2O3 composite coatings prepared by electrodeposition, Solid State Phenomena 163 (2010) 64-67.

DOI: 10.4028/www.scientific.net/ssp.163.64

[17] A. Jung, and H. Natter, Nanocrystalline alumina dispersed in nanocrystalline nickel: enhanced mechanical properties, J Mater Sci 44 (2009) 2725–2735.

DOI: 10.1007/s10853-009-3330-1

[18] H. Gu¨l, F. KilIc¸ S. Aslan, A. Alp, and H. Akbulut, Characteristics of electro-co-deposited Ni/Al2O3 nano-particle reinforced metal matrix composite (MMC) coatings, Wear 267 (5–8) (2009) 976–990.

DOI: 10.1016/j.wear.2008.12.022
