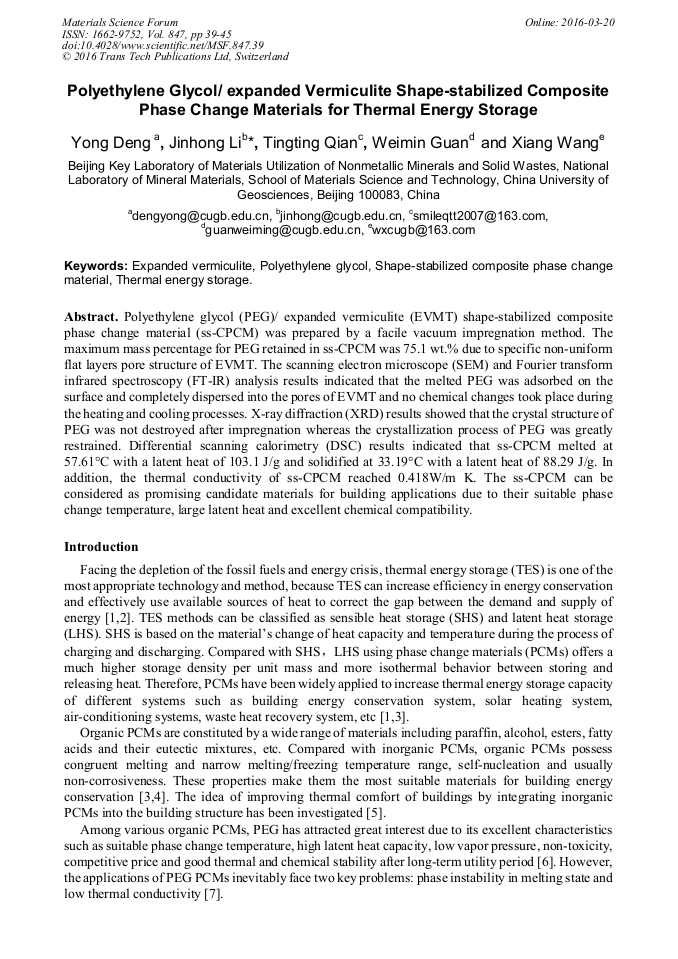

Polyethylene Glycol/Expanded Vermiculite Shape-Stabilized Composite Phase Change Materials for Thermal Energy Storage

Abstract:

Polyethylene glycol (PEG)/ expanded vermiculite (EVMT) shape-stabilized composite phase change material (ss-CPCM) was prepared by a facile vacuum impregnation method. The maximum mass percentage for PEG retained in ss-CPCM was 75.1 wt.% due to specific non-uniform flat layers pore structure of EVMT. The scanning electron microscope (SEM) and Fourier transform infrared spectroscopy (FT-IR) analysis results indicated that the melted PEG was adsorbed on the surface and completely dispersed into the pores of EVMT and no chemical changes took place during the heating and cooling processes. X-ray diffraction (XRD) results showed that the crystal structure of PEG was not destroyed after impregnation whereas the crystallization process of PEG was greatly restrained. Differential scanning calorimetry (DSC) results indicated that ss-CPCM melted at 57.61°C with a latent heat of 103.1 J/g and solidified at 33.19°C with a latent heat of 88.29 J/g. In addition, the thermal conductivity of ss-CPCM reached 0.418W/m K. The ss-CPCM can be considered as promising candidate materials for building applications due to their suitable phase change temperature, large latent heat and excellent chemical compatibility.

• Periodical: Materials Science Forum (Volume 847)
• Pages: 39-45
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.847.39
• Online since: March 2016
• Authors: Yong Deng, Jin Hong Li, Ting Ting Qian, Wei Min Guan, Xiang Wang
• Keywords: Expanded Vermiculite, Polyethylene Glycol, Shape-Stabilized Composite Phase Change Material, Thermal Energy Storage

References

[1] E. Oró, A. d. Gracia, A. Castell, M.M. Farid, L.F. Cabeza, Review on phase change materials (PCMs) for cold thermal energy storage applications, Appl Energy 99 (2012) 513-533.

DOI: 10.1016/j.apenergy.2012.03.058

[2] M.M. Kenisarin, K.M. Kenisarina, Form-stable phase change materials for thermal energy storage, Renew Sust Energ Rev 16 (2012) 1999-(2040).

DOI: 10.1016/j.rser.2012.01.015

[3] K. Pielichowska, K. Pielichowski, Phase change materials for thermal energy storage, Prog Mater Sci 65 (2014) 67-123.

DOI: 10.1016/j.pmatsci.2014.03.005

[4] R.K. Sharma, P. Ganesan, V.V. Tyagi, H.S. C Metselaar, S.C. Sandaran, Developments in organic solid–liquid phase change materials and their applications in thermal energy storage, Energy Convers Manage 95 (2015) 193-228.

DOI: 10.1016/j.enconman.2015.01.084

[5] B.W. Xu, Z.J. Li, Paraffin/diatomite composite phase change material incorporated cement-based composite for thermal energy storage, Appl Energy 105 (2013) 229-237.

DOI: 10.1016/j.apenergy.2013.01.005

[6] S. Karaman, A. Karaipekli, A. Sarı, A. Bicer, Polyethylen e glycol (PEG)/diatomite composite as a novel form -stable phase change material for thermal energy storage, Sol Energy Mater Sol Cells 95 (2011) 1647-1653.

DOI: 10.1016/j.solmat.2011.01.022

[7] T.T. Qian, J.H. Li , X. Min, Y. Deng, W.M. Guan, H.W. Ma, Polyethylene glycol/mesoporous calcium silicate shape -stabilized composite phase change material: Preparation, characterization, and adjustable thermal property, Energy 82 (2015) 333-340.

DOI: 10.1016/j.energy.2015.01.043

[8] M. Xiao, B. Feng, K. Gong, Preparation and performance of shape stabilizes phase change thermal storage materials with high thermal conductivity, Energy Convers Manage 43 (2002) 103–108.

DOI: 10.1016/s0196-8904(01)00010-3

[9] T.T. Qian, J.H. Li , X. Min, Y. Deng, W.M. Guan, N. Ning, Diatomite: A promising natural candidate as carrier material for low, middle and high temperature phase change material, Energy Convers Manage 98 (2015) 34-35.

DOI: 10.1016/j.enconman.2015.03.071

[10] A. Sarı, A. Karaipekli, Preparation, thermal properties and thermal reliability of capric acid/expanded perlite composite for thermal energy storage, Mater Chem Phys 109 (2008) 459–464.

DOI: 10.1016/j.matchemphys.2007.12.016

[11] O. Chung, S.G. Jeong, S. Kim, Preparation of energy effi cient paraffi nic PCMs/expanded vermiculite and perlite composites for energy saving in buildings, Sol Energy Mater Sol Cells 137 (2015) 107-112.

DOI: 10.1016/j.solmat.2014.11.001

[12] W.M. Guan, J.H. Li, T.T. Qian, X. Wang, Y. Deng, Preparation of paraffin/expanded vermiculite with enhanced thermal conductivity by implanting network carbon in vermiculite layers, Chem Eng J 277 (2015) 56-63.

DOI: 10.1016/j.cej.2015.04.077

[13] A. Shkatulov, J. Ryu, Y. Kato, Y. Aristov, Composite material Mg(OH)2/vermiculite,: A promising new candidate for storage of middle temperature heat, Energy 44 (2012) 1028-1034.

DOI: 10.1016/j.energy.2012.04.045

[14] Z.G. Zhang , N. Zhang, J. Peng, X.M. Fang, X.N. Gao, Y.T. Fang, Preparation and thermal energy storage properties of paraffin/expanded graphite composite phase change material, Appl Energy 91 (2012) 426-431.

DOI: 10.1016/j.apenergy.2011.10.014

[15] J.Y. Yu, J. He, C.Q. Ya, Preparation of phenolic resin/organized expanded vermiculite nanocomposite and its application in brake pad, J Appl Polym Sci 119 (2011) 275–280.

DOI: 10.1002/app.32557

[16] A.S. Gray, C. Uher, Thermal conductivity of mica at low temperatures, J Mater Sci 12 (1977) 959-965.

DOI: 10.1007/bf00540978

[17] A. Sarı, A. Bicer, Thermal energy storage properties and thermal reliability of some fatty acid esters/building material composites as novel form -stable PCMs, Sol. Energy Mater. Sol. Cells 101 (2012) 114-122.

DOI: 10.1016/j.solmat.2012.02.026

[18] Z.M. Sun, Y.Z. Zhang, S.L. Zheng, Y. Park, R.L. Frost, Preparation and thermal energy storage properties of paraffin/calcined diatomite composites as form-stable phase change materials. Thermochim. Acta 558 (2013) 16-21.

DOI: 10.1016/j.tca.2013.02.005

[19] S.K. Song, L.J. Dong, Y. Zhang, S. Chen, Q. Li, Y. Guo, S.F. Deng, S. Si, C.X. Xiong, Lauric acid/intercalated kaolinite a s form -stable phase change material for thermal energy storage, Energy 76 (2014) 385-389.

DOI: 10.1016/j.energy.2014.08.042
