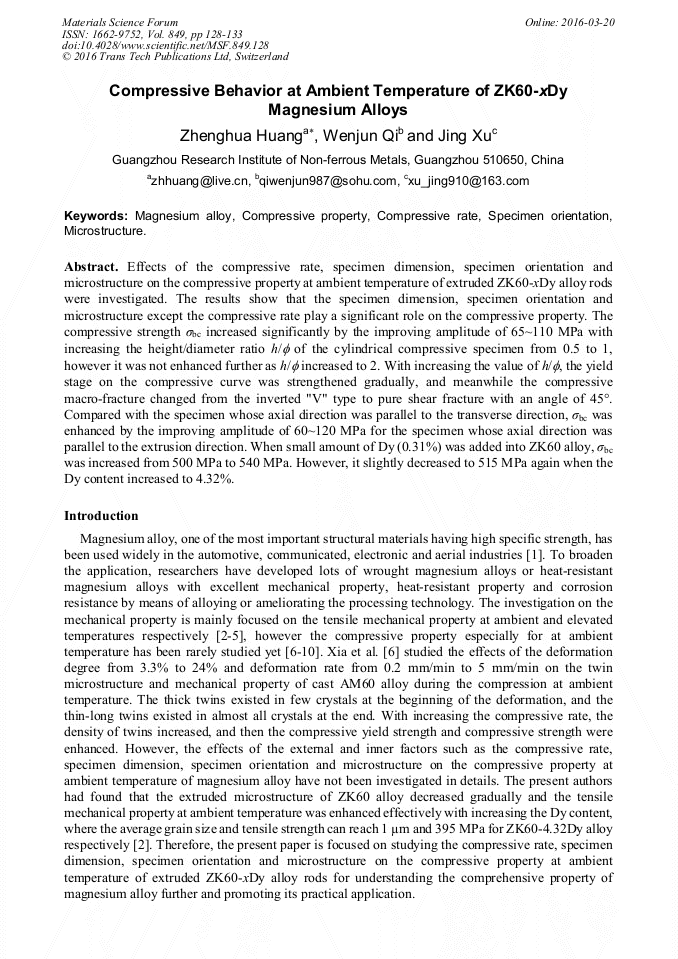

Compressive Behavior at Ambient Temperature of ZK60-xDy Magnesium Alloys

Abstract:

Effects of the compressive rate, specimen dimension, specimen orientation and microstructure on the compressive property at ambient temperature of extruded ZK60-xDy alloy rods were investigated. The results show that the specimen dimension, specimen orientation and microstructure except the compressive rate play a significant role on the compressive property. The compressive strength σ_bc increased significantly by the improving amplitude of 65~110 MPa with increasing the height/diameter ratio h/φ of the cylindrical compressive specimen from 0.5 to 1, however it was not enhanced further as h/φ increased to 2. With increasing the value of h/φ, the yield stage on the compressive curve was strengthened gradually, and meanwhile the compressive macro-fracture changed from the inverted "V" type to pure shear fracture with an angle of 45°. Compared with the specimen whose axial direction was parallel to the transverse direction, σ_bc was enhanced by the improving amplitude of 60~120 MPa for the specimen whose axial direction was parallel to the extrusion direction. When small amount of Dy (0.31%) was added into ZK60 alloy, σ_bc was increased from 500 MPa to 540 MPa. However, it slightly decreased to 515 MPa again when the Dy content increased to 4.32%.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 128-133
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.128
• Online since: March 2016
• Authors: Zheng Hua Huang, Wen Jun Qi*, Jing Xu
• Keywords: Compressive Property, Compressive Rate, Magnesium Alloy, Microstructure, Specimen Orientation

References

[1] I.J. Polmear, Magnesium alloys and applications, Mater. Sci. Technol. 10(1994) 1-14.

[2] Z.H. Huang, W.J. Qi, K.H. Zheng, X.M. Zhang, M. Liu, Z.M. Yu, J. Xu, Microstructures and mechanical properties of Mg-Zn-Zr-Dy wrought magnesium alloys, Bull. Mat. Sci. 36(2013) 437-445.

DOI: 10.1007/s12034-013-0469-9

[3] Z.H. Huang, W.J. Qi, J. Xu, Effects of Gd on microstructure and mechanical property of ZK60 magnesium alloy, Trans. Nonferrous Met. Soc. China 23(2013) 2568-2576.

DOI: 10.1016/s1003-6326(13)62769-7

[4] Z.H. Huang, W.J. Qi, J. Xu, Microstructures and mechanical properties of ZK60-xHo wrought magnesium alloys, Mat. Sci. Forum 747-748 (2013) 359-368.

DOI: 10.4028/www.scientific.net/msf.747-748.359

[5] Z.H. Huang, W.H.B. Liu, W.J. Qi, J. Xu, N. Zhou, Effects of Bi on the microstructure and mechanical property of ZK60 alloy, J. Magn. Alloys, 2015, 3(1): 29-35.

DOI: 10.1016/j.jma.2014.12.005

[6] W.J. Xia, C.H. Yang, C.Q. Huang, Z.H. Chen, Influence of deformation degree and rate on twins of cast AM60 during compression test, Mat. Mech. Eng. 30(2006) 13-15, 56 (in Chinese).

[7] Z.M. Zhang, Y. Ma, S.Z. Jia, C.J. Xu, X.F. Guo, Compression property of different extruded high-silicon Mg-9Al-6Si alloys, Mat. Mech. Eng. 35(2011) 28-31(in Chinese).

[8] L.H. Wu, J. Liu, S.K. Guan, Y. Gao, S.J. Wang, Effects of Sn addition on microstructure and room temperature compression properties of AZ70 Mg-alloy, Mat. Heat Treat. 35(2006) 13-16 (in Chinese).

[9] J.J. He, T.M. Liu, Y. Zhang, S. Xu, L.W. Lu, J. Tan, Deformation behaviour of hot extruded Mg alloy AZ31 during compressive deformation, Mater. Sci. Technol. 29(2013) 177-183.

DOI: 10.1179/1743284712y.0000000114

[10] J.J. He, T.M. Liu, H.B. Chen, L.W. Lu, F.S. Pan, Effects of prior compression on ductility and yielding behaviour in extruded magnesium alloy AZ31, Mater. Sci. Technol. 30(2014) 1488-1494.

DOI: 10.1179/026708313x13853742547939

[11] L.L. Chang, Y.N. Wang, X. Zhao, M. Qi, Grain size and texture effect on compression behavior of hot-extruded Mg-3Al-1Zn alloys at room temperature, Mater. Charact. 60(2009) 991-994.

DOI: 10.1016/j.matchar.2009.04.001

[12] Z.F. Zhang, H. Zhang, X.F. Pan, J. Das, J. Eckert, Effect of aspect ratio on the compressive deformation and fracture behaviour of Zr-based bulk metallic glass, Philos. Mag. Lett. 85(2005) 513-521.

DOI: 10.1080/09500830500395237
