Microstructures and Tensile Properties of Mg-6Gd-3Y-1.4Zn-0.4Zr Alloys

Abstract:

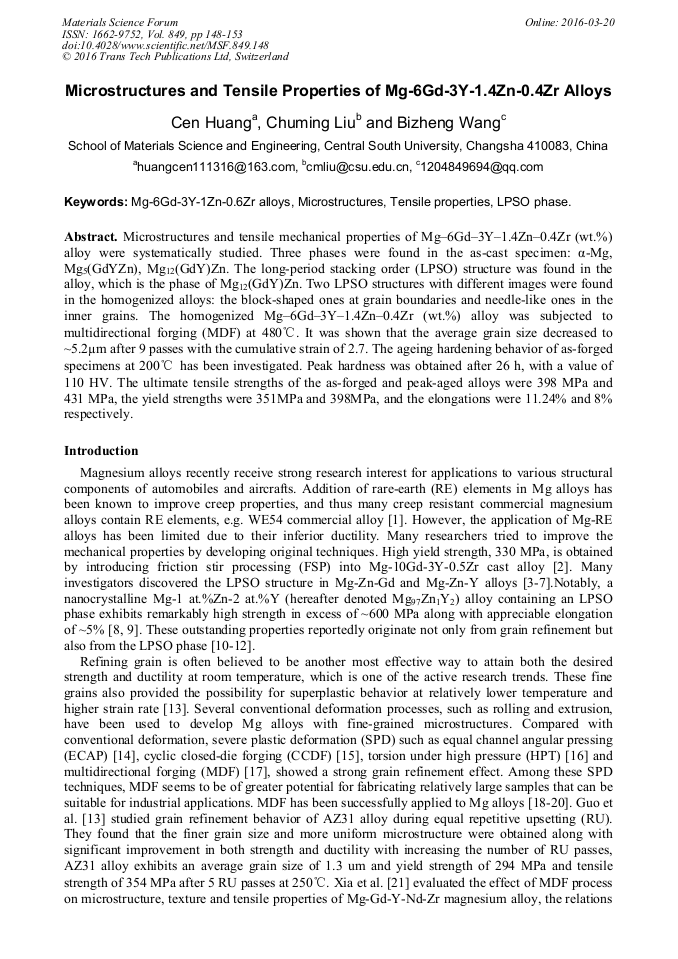

Microstructures and tensile mechanical properties of Mg–6Gd–3Y–1.4Zn–0.4Zr (wt.%) alloy were systematically studied. Three phases were found in the as-cast specimen: α-Mg, Mg₅(GdYZn), Mg₁₂(GdY)Zn. The long-period stacking order (LPSO) structure was found in the alloy, which is the phase of Mg₁₂(GdY)Zn. Two LPSO structures with different images were found in the homogenized alloys: the block-shaped ones at grain boundaries and needle-like ones in the inner grains. The homogenized Mg–6Gd–3Y–1.4Zn–0.4Zr (wt.%) alloy was subjected to multidirectional forging (MDF) at 480°C. It was shown that the average grain size decreased to ~5.2μm after 9 passes with the cumulative strain of 2.7. The ageing hardening behavior of as-forged specimens at 200°C has been investigated. Peak hardness was obtained after 26 h, with a value of 110 HV. The ultimate tensile strengths of the as-forged and peak-aged alloys were 398 MPa and 431 MPa, the yield strengths were 351MPa and 398MPa, and the elongations were 11.24% and 8% respectively.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 148-153
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.148
• Online since: March 2016
• Authors: Cen Huang*, Chu Ming Liu, Bi Zheng Wang
• Keywords: LPSO Phase, Mg-6Gd-3Y-1Zn-0.6Zr Alloys, Microstructure, Tensile Property

References

[1] Polmear IJ, Mater Sci Technol. 10 (1994) 1-16.

[2] B.L. Xiao, Q. Yang, J. Yang, W.G. Wang, G.M. Xie, Z.Y. Ma, J. Alloys Compd. 509 (2011) 2879-2884.

[3] K. Liu, J.H. Zhang, G.H. Su, D.X. Tang, L.L. Rokhlind, F.M. Elkind, J. Meng, J. Alloys Compd. 481 (2009) 811-818.

[4] M. Yamasaki, M. Sasaki, M. Nishijima, K. Hiraga, Y. Kawamura, Acta Mater. 55(2007) 6798-6805.

[5] S. Zhang, G.Y. Yuan, C. Lu, W.J. Ding, J. Alloys Compd. 509 (2011) 3515-3521.

[6] T. Itoi, T. Seimiya, Y. Kawamura, M. Hirohashi, Scripta Mater. 51 (2004) 107-111.

[7] Y. Gao, Q.D. Wang, J.H. Gu, Y. Zhao, Y. Tong, D.D. Yin, J. Alloys Compd. 477 (2009) 374-378.

[8] Y. Kawamura, K. Hayashi, A. Inoue, T. Masumoto, Mater. Trans. 42 (2001) 1172-1176.

[9] A. Inoue, Y. Kawamura, M. Matsushita, K. Hayashi, J. Koike, J. Mater. Res. 16 (2001) 1894-(1900).

[10] K. Hagihara, A. Kinoshita, Y. Sugino, M. Yamasaki, Y. Kawamura, H.Y. Yasuda, Y. Umakoshi, Acta Mater. 58 (2010) 6282-6293.

DOI: 10.1016/j.actamat.2010.07.050

[11] M. Yamasaki, K. Hagihara, S.I. Inoue, J.P. Hadorn, Y. Kawamura, Acta Mater. 61 (2013) 2065-(2076).

[12] K. Hagihara, N. Yokotani, Y. Umakoshi, Intermetallics. 18(2010) 267-276.

[13] W. Guo, Q.D. Wang, B. Ye, M.P. Liu, T. Peng, X.T. Liu, H. Zhou, Mater. Sci. Eng. A. 540 (2012) 115-122.

[14] V.M. Segal, Mater. Sci. Eng. A 197 (1995) 157-164.

[15] W. Guo, Q.D. Wang, B. Ye, H. Zhou, J. Alloys Comp. 558 (2013) 164-171.

[16] T. Hebesberger, H.P. Stüwe, A. Vorhauer, F. Wetscher, R. Pippan, Acta Mater. 53(2005) 393-402.

DOI: 10.1016/j.actamat.2004.09.043

[17] Q. Guo, H.G. Yan, Z.H. Chen, H. Zhang, Mater. Charact. 58 (2007) 162-167.

[18] Miura H, Maruoka T, Yang X, Jonas JJ. Scripta Mater. 66(2012) 49-51.

[19] Miura H, Yu G, Yang X. Mater Sci Eng A. 528(2011) 6981-6992.

[20] J Xing, X Yang, Miura H, Sakai T, Mater Trans. 49(2008) 69-75.

[21] X. S. Xia, Q. Chen, Z. D. Zhao, M. L. Ma, X. G. Li, K. Zhang, J. Alloys Compd. 623(2015) 62-68.

[22] S. Zhang, G.Y. Yuan, C. Lu, W.J. Ding, J. Alloys Compd. 509 (2011) 3515-3521.

[23] T. Itoi, T. Seimiya, Y. Kawamura, M. Hirohashi, Scripta Mater. 51 (2004) 107-111.

[24] Y. Gao, Q.D. Wang, J.H. Gu, Y. Zhao, Y. Tong, D.D. Yin, J. Alloys Compd. 477 (2009)374-378.

[25] L. Zheng, C.M. Liu, Y.C. Wan, P. W. Yang, X. Shu, J. Alloys Compd. 509(2011) 8832-8839.

[26] X.Z. Han, W.C. Xu, D.B. Shan, J. Alloys Compd. 509(2011) 8625-8631.
