Effect of Heat Treatment on Microstructures and Properties of AZ40M Alloy

Abstract:

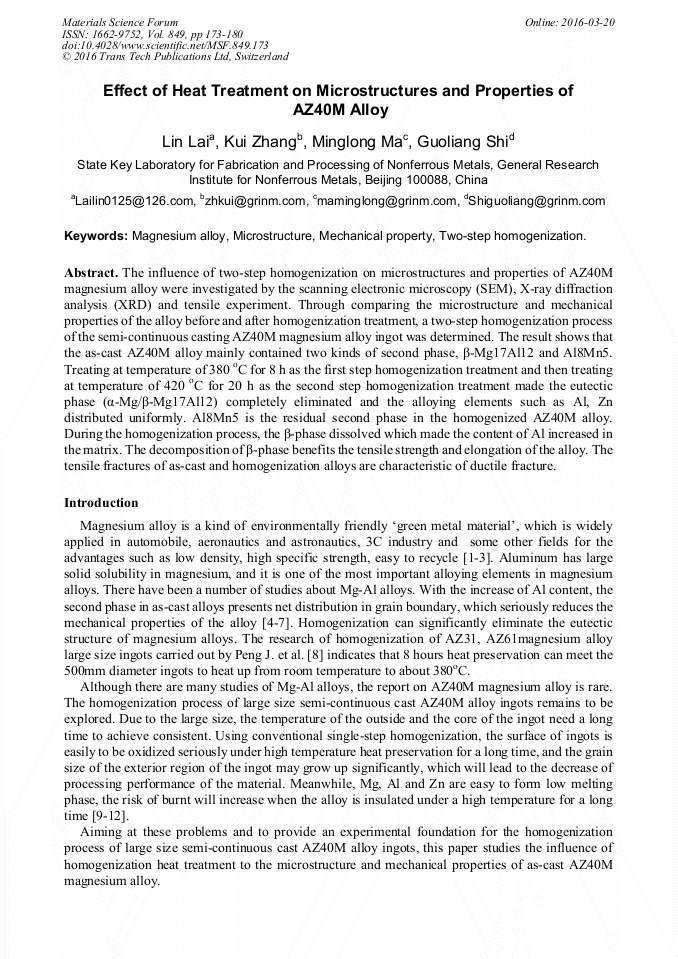

The influence of two-step homogenization on microstructures and properties of AZ40M magnesium alloy were investigated by the scanning electronic microscopy (SEM), X-ray diffraction analysis (XRD) and tensile experiment. Through comparing the microstructure and mechanical properties of the alloy before and after homogenization treatment, a two-step homogenization process of the semi-continuous casting AZ40M magnesium alloy ingot was determined. The result shows that the as-cast AZ40M alloy mainly contained two kinds of second phase, β-Mg17Al12 and Al8Mn5. Treating at temperature of 380 °C for 8 h as the first step homogenization treatment and then treating at temperature of 420 °C for 20 h as the second step homogenization treatment made the eutectic phase (α-Mg/β-Mg17Al12) completely eliminated and the alloying elements such as Al, Zn distributed uniformly. Al8Mn5 is the residual second phase in the homogenized AZ40M alloy. During the homogenization process, the β-phase dissolved which made the content of Al increased in the matrix. The decomposition of β-phase benefits the tensile strength and elongation of the alloy. The tensile fractures of as-cast and homogenization alloys are characteristic of ductile fracture.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 173-180
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.173
• Online since: March 2016
• Authors: Lin Lai, Kui Zhang, Ming Long Ma, Guo Liang Shi
• Keywords: Magnesium Alloy, Mechanical Properties, Microstructure, Two-Step Homogenization

References

[1] B.L. Mordike, T. Ebert, Magnesium: Properties-applications-potential. Materials Science and Engineering: A. 302(2001) 37-45.

[2] R. Alderliesten, C. RANS, R. Benedictus, The applicability of magnesium based Fibre Metal Laminates in aerospace structures. Composites Science and Technology. 68(2008) 2983-2993.

DOI: 10.1016/j.compscitech.2008.06.017

[3] E. Aghion, B. Bronfin, D. Eliezer, The role of the magnesium industry in protecting the environment, Journal of Materials Processing Tech. 117(2001) 381-385.

DOI: 10.1016/s0924-0136(01)00779-8

[4] Z. Peng, H. Geng, Q. Wang, Effect of melting technique on the microstructure and mechanical properties of AZ91 commercial magnesium alloys. Materials Science and Engineering A. 429(2006) 320-323.

DOI: 10.1016/j.msea.2006.05.066

[5] M. Shanthi, C.Y.H. Lim, L. Lu, Effects of grain size on the wear of recycled AZ91 Mg, Tribology international. 40(2007) 335-338.

DOI: 10.1016/j.triboint.2005.11.025

[6] K. Suresh, K.P. Rao, Y.V.R.K. Prasad, N. Hort, K.U. Kainer, Study of hot forging behavior of as-cast Mg–3Al–1Zn–2Ca alloy towards optimization of its hot workability, Materials and Design. 57(2014) 697–704.

DOI: 10.1016/j.matdes.2014.01.032

[7] J.P. Young, G. Ayoub, B. Mansoor, D.P. Field, The effect of hot rolling on the microstructure, texture andmechanical properties of twin roll cast AZ31Mg, Journal of Materials Processing Technology. 216(2015) 315-327.

DOI: 10.1016/j.jmatprotec.2014.09.023

[8] J. Peng, T. Jianquan, T. Xiaoshan, Inhomogeneity of microstructure and mechanical properties of a 500 mm diameter heavy section semi-continuous cast AZ61 magnesium alloy ingot. Research & Development, 11(2004) 213-221.

[9] A. Maltais, D. Dubé, M. Fiset, Improvements in the metallography of as-cast AZ91 alloy. Materials Characterization. 52(2004) 103-119.

DOI: 10.1016/j.matchar.2004.04.002

[10] Y. Wang, G. Liu, Z. Fan, A new heat treatment procedure for rheo-diecast AZ91D magnesium alloy. Scripta Mater. 54(2006) 903-908.

DOI: 10.1016/j.scriptamat.2005.10.073

[11] I.A. Yakubtsov, B.J. Diak, C.A. Sager, Effects of heat treatment on microstructure and tensile deformation of Mg AZ80 alloy at room temperature. Materials Science and Engineering: A. 496(2008) 247-255.

DOI: 10.1016/j.msea.2008.05.019

[12] S. Spigarelli, M.E. Mehtedi, M. Cabibbo, Analysis of high-temperature deformation and microstructure of an AZ31 magnesium alloy. Materials Science and Engineering: A, 462(2007) 197-201.

DOI: 10.1016/j.msea.2006.03.155

[13] C. Peng, D.H. StJohn, M. Qian, The Effect of Manganese on the Grain Size of Commercial AZ31 Alloy. Materials Science Forum, 488 (2005) 139-142.

DOI: 10.4028/www.scientific.net/msf.488-489.139

[14] B. Böttger, J. Eiken, M. Ohno, Controlling Microstructure in Magnesium Alloys: A Combined Thermodynamic, Experimental and Simulation Approach. Advanced Engineering Materials. 8(2006) 241-247.

DOI: 10.1002/adem.200500241

[15] H.Z. Ye, X.Y. Liu, In situ formation behaviors of Al8Mn5 particles in Mg-Al alloys. Journal of Alloys and Compounds. 419(2006) 54-60.

DOI: 10.1016/j.jallcom.2005.08.111

[16] M. Piché, A.D. Pelton, C. Brochu, Magnesium Technology From Magnesium Technology 2003. Essential Readings in Magnesium Technology. 2003, pp, 411.

DOI: 10.1002/9781118859803.ch65

[17] E. F. Emely, Principles of Magnesium technology, first ed., Oxford, Pergamon Press, (1966).
