Low Temperature Co-Fired ZnNb₂O₆ Dielectric Ceramic Doped by B₂O₃

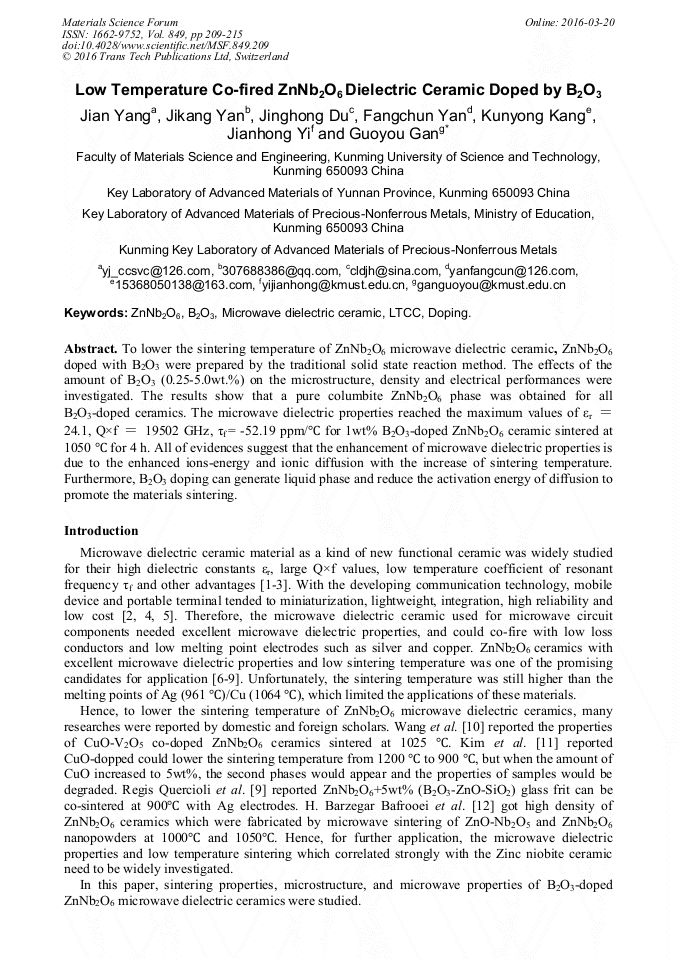

Abstract:

To lower the sintering temperature of ZnNb₂O₆ microwave dielectric ceramic, ZnNb₂O₆ doped with B₂O₃ were prepared by the traditional solid state reaction method. The effects of the amount of B₂O₃ (0.25-5.0wt.%) on the microstructure, density and electrical performances were investigated. The results show that a pure columbite ZnNb₂O₆ phase was obtained for all B₂O₃-doped ceramics. The microwave dielectric properties reached the maximum values of ε_r = 24.1, Q×f = 19502 GHz, τ_f = -52.19 ppm/°C for 1wt% B₂O₃-doped ZnNb₂O₆ ceramic sintered at 1050 °C for 4 h. All of evidences suggest that the enhancement of microwave dielectric properties is due to the enhanced ions-energy and ionic diffusion with the increase of sintering temperature. Furthermore, B₂O₃ doping can generate liquid phase and reduce the activation energy of diffusion to promote the materials sintering.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 209-215
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.209
• Online since: March 2016
• Authors: Jian Yang, Ji Kang Yan, Jing Hong Du, Fang Chun Yan, Kun Yong Kang, Jian Hong Yi, Guo You Gan*
• Keywords: B₂O₃, Doping, LTCC, Microwave Dielectric Ceramic, ZnNb₂O₆

References

[1] Sebastian, M.T. and H. Jantunen, Low loss dielectric materials for LTCC applications: a review, Int Mater Rev. 53 (2008) 57-90.

DOI: 10.1179/174328008x277524

[2] Yu, S., B. Tang, S. Zhang, et al., The effect of Mn addition on phase development, microstructure and microwave dielectric properties of ZrTi2O6–ZnNb2O6 ceramics, Mater Lett. 80 (2012) 124-126.

DOI: 10.1016/j.matlet.2012.04.093

[3] Zhang, J., Z. Yue, X. Zhang, et al., Low-temperature sintering and microwave dielectric properties of CaF2-doped MgTiO3 ceramics, Ceram Int. 41 (2015) S515-S519.

DOI: 10.1016/j.ceramint.2015.03.299

[4] Pullar, R.C., The synthesis, properties, and applications of columbite niobates (M2+Nb2O6): a critical review, J Am Ceram Soc. 92 (2009) 563-577.

[5] Li, E., P. Zhang, Y. Mi, et al., Low-Temperature Sintering Behavior and Dielectric Properties of Li2O-Nb2O5-TiO2 Ceramics with Li-B-Si-O Glass, J Electron Mater. 44 (2015) 4316-4321.

DOI: 10.1007/s11664-015-3927-x

[6] Pullar, R.C., J.D. Breeze, and N.M. Alford, Microwave dielectric properties of columbite structures niobate ceramics M2+Nb2O6, Key Eng. Mater. (2002) 224-226.

DOI: 10.4028/www.scientific.net/kem.224-226.1

[7] Pullar, R.C., K. Okeneme, and N. McN. Alford, Temperture compensated niobate microwave ceramic with the columbite structure M2+Nb2O6, J Euro Ceram Soc. 23 (2003) 2479-2483.

DOI: 10.1016/s0955-2219(03)00133-x

[8] Dai, J., C. Zhang, L. Shi, et al., Low-temperature synthesis of ZnNb2O6 powders via hydrothermal method, Ceram Int. 38 (2012) 1211-1214.

DOI: 10.1016/j.ceramint.2011.08.050

[9] Quercioli, R., J. Bernard, J. -M. Haussonne, et al., Low sintering temperature of ZnNb2O6 for silver co-sintering, Ceram Int. 40 (2014) 1771-1779.

DOI: 10.1016/j.ceramint.2013.07.077

[10] Ruyu, W., H. Jinliang, Z. Huanfu, et al., Effect of CuO and V2O5 Doping on Dielectric Properties of ZnNb2O6 Ceramics, Journal of the Chinese Ceramic Society. 4 (2006) 442-445.

[11] Kim, D. -W., K.H. Ko, and K.S. Hong, Influence of Copper(II) Oxide Additions to Zinc Niobate Microwave Ceramics on Sintering Temperature and Dielectric Properties, J Am Ceram Soc. 84 (2001) 1286-1290.

DOI: 10.1111/j.1151-2916.2001.tb00830.x

[12] Bafrooei, H.B., E.T. Nassaj, C.F. Hu, et al., Microwave sintering of nanopowder ZnNb2O6: Densification, microstructure and microwave dielectric properties, Physica B. 454 (2014) 35-41.

DOI: 10.1016/j.physb.2014.07.024

[13] Gao, F., J. Liu, R. Hong, et al., Microstructure and dielectric properties of low temperature sintered ZnNb2O6 microwave ceramics, Ceram Int. 35 (2009) 2687-2692.

DOI: 10.1016/j.ceramint.2009.03.012

[14] Shahgholi, N., K. Asadian, and T. Ebadzadeh, Microstructural and microwave dielectric properties of ZnNb2O6 ceramics prepared through microwave sintering, Ceram Int. 40 (2014) 14335-14339.

DOI: 10.1016/j.ceramint.2014.06.024

[15] R, V.M., R.C. P, and L.P. N, Sinterability and Dielectric Properties of ZnNb2O6-Glass Ceramic Composites. INTECH Open Access Publisher, India, 2011, pp.277-290.

[16] Zhang, Y.C., Z.X. Yue, Z.L. Gui, et al., Microwave dielectric properties of (Zn1−xMgx)Nb2O6 ceramics, Mater Lett. 57 (2003) 4531-4534.

DOI: 10.1016/s0167-577x(03)00357-4

[17] S, F.M., L.X. Q, and C.X. M, Structure and micriowave dielectric characteristics of Ca1-xNd2x/3TiO3 ceramics, J Euro Ceram Soc. 28 (2008) 585-590.

DOI: 10.1016/j.jeurceramsoc.2007.06.015
