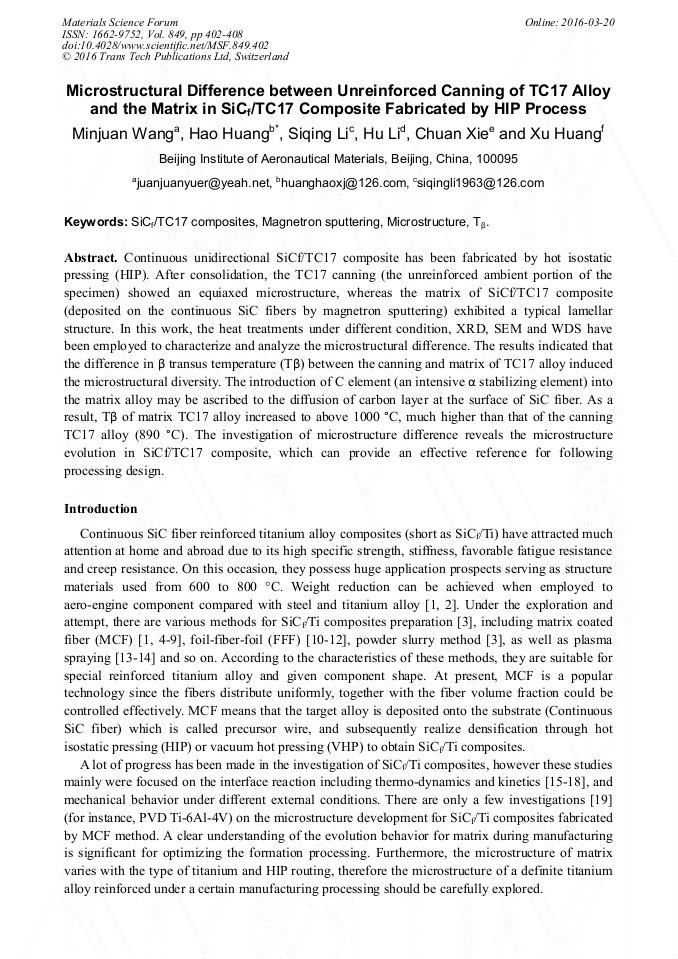

Microstructural Difference between Unreinforced Canning of TC17 Alloy and the Matrix in SiC_f/TC17 Composite Fabricated by HIP Process

Abstract:

Continuous unidirectional SiC_f/TC17 composite has been fabricated by hot isostatic pressing (HIP). After consolidation, the TC17 canning (the unreinforced ambient portion of the specimen) showed an equiaxed microstructure, whereas the matrix of SiC_f/TC17 composite (deposited on the continuous SiC fibers by magnetron sputtering) exhibited a typical lamellar structure. In this work, the heat treatments under different condition, XRD, SEM and WDS have been employed to characterize and analyze the microstructural difference. The results indicated that the difference in β transus temperature (T_β) between the canning and matrix of TC17 alloy induced the microstructural diversity. The introduction of C element (an intensive α stabilizing element) into the matrix alloy may be ascribed to the diffusion of carbon layer at the surface of SiC fiber. As a result, T_β of matrix TC17 alloy increased to above 1000 °C, much higher than that of the canning TC17 alloy (890 °C). The investigation of microstructure difference reveals the microstructure evolution in SiC_f/TC17 composite, which can provide an effective reference for following processing design.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 402-408
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.402
• Online since: March 2016
• Authors: Min Juan Wang, Hao Huang, Si Qing Li, Hu Li, Chuan Xie, Xu Huang
• Keywords: Magnetron Sputtering, Microstructure, SiC_f/TC17 Composites, T_β

References

[1] Y.G. Zhou, Y.Q. Yang, Progress in the study of titanium matrix composites reinforced by SiC fibers. Acta Metall. Sin. 38( 2002) 461-465.

[2] P.G. Partridge, C.M. Ward-Close, Processing of advanced continuous fiber composites: Current practice and potential developments. Int. Mater. Rev. 38(1993) 1-24.

DOI: 10.1179/imr.1993.38.1.1

[3] X.N. Mao, P.S. Zhang, L.L. Yu, etc. The new progress in the research of SiC fiber reinforced titanium matrix composites. Rare Metals lett. 24(2005) 1-7.

[4] Miriam Wood, Malcolm Ward-Close. Fiber-reinforced intermetallic compounds by physical vapour deposition. Mater. Sci. Eng. A. 192/193(1995) 590-596.

DOI: 10.1016/0921-5093(94)03282-3

[5] P.R. Subramanian, S. Krishnamurthy, etc., Processing of continuously reinforced Ti-alloy metal matrix composites (MMC) by magnetron sputtering. Mater. Sci. Eng. A. 244(1998) 1-10.

DOI: 10.1016/s0921-5093(97)00820-4

[6] H. X. Peng. Manufacturing titanium metal matrix composites by consolidating matrix coated fibres, J. Mater. Sci. Technol. 21( 2005) 647-651.

[7] C.M. Ward-Close, P.G. Partridge. A fibre coating process for advanced metal-matrix composites, J. Mater. Sci. 25(1990) 4315-4323.

DOI: 10.1007/bf00581090

[8] D. Bettge, B. Gunther, etc. Mechanical behavior and fatigue damage of a titanium matrix composite reinforced with continuous SiC fibers, Mater. Sci. Eng. A. 452-453(2007) 536-544.

DOI: 10.1016/j.msea.2006.10.107

[9] R. Leucht, H.J. Dudek. Properties of SiC fiber reinforced titanium alloys processed by fibre coating and hot isostatic pressing, Mater. Sci. Eng. A. 188(1994) 201-210.

DOI: 10.1016/0921-5093(94)90373-5

[10] Y.W. Xun, M.J. Tan, etc., Processing and interface stability of SiC fiber reinforced Ti-15V-3Cr matrix composites, J. Mater. Process Tech. 102(2000) 215-220.

DOI: 10.1016/s0924-0136(00)00473-8

[11] Kashif Naseem, Y.Q. Yang, etc., SEM in situ study on the mechanical behavior of SiCf/Ti composite subjected to axial tensile load. Mater. Sci. Eng. A. 528(2011) 4507-4515.

DOI: 10.1016/j.msea.2011.02.064

[12] T.J.A. Doel, D.C. Cardona, etc., Fatigue crack growth in selectively reinforced titanium metal matrix composites, Int. J. Fatigue, 20(1998) 35-50.

DOI: 10.1016/s0142-1123(97)00093-5

[13] R. Yang, N.L. Shi, etc. Recent Progress in SiC fibre reinforced titanium matrix composites, Titanium Ind. Prog., 22(2005) 32-36.

[14] Sarala D janarthany, Jean-Claude Viala, etc. Development of SiCf/TiAl composites: Progressing and interfacial phenomena, Mater. Sci. Eng. A. 300(2001) 211-218.

[15] Constantin Vahlas, Ian W. Hall, etc. Investigation of interfacial reactivity in composite materials, Mater. Sci. Eng. A. 259(1999) 269–278.

[16] Y.Q. Yang, B. Huang, etc., Interfacial Reaction and Interfacial bonding strength of SiCf/Ti-matrix composites, Chinses Symp. on Mater. Sci. and Image Tech. (2007).

[17] Y.F. Xu, T.X. Su, etc. Study of interfacial stress distribution in SiC fiber reinforced titanium matrix composites on Transverse Tensile Tests, J. Mater. Eng. Perform, 21(2012)2446-2450.

DOI: 10.1007/s11665-011-0094-y

[18] C. Badini, M. Ferraris., Thermal stability of interfaces in Ti-6Al-4V reinforced by SiC sigma fibres, J. Mater. Sci. 29(1994) 4840-4846.

DOI: 10.1007/bf00356531

[19] G.M. Zhao, Y.Q. Yang, etc., Microstructure and grain growth of the matrix of SiCf/Ti–6Al–4V composites prepared by the consolidation of matrix-coated fibers in the β phase field, Compos. Part B, 52(2013) 155-163.

DOI: 10.1016/j.compositesb.2013.04.024

[20] P.P. Wang. Research on mechanical properties of in-situ synthesized 7715D titanium matrix composites with equiaxed and lamellar microstructures, Diss. 2010, 25-26.

[21] X. Zhang, Y.M. Wang, etc., The interfacial thermal stability and element diffusion mechanism of SiCf/TC17 composite, Acta Metall. Sin., 48(2012) 1306-1314.

DOI: 10.3724/sp.j.1037.2012.00347
