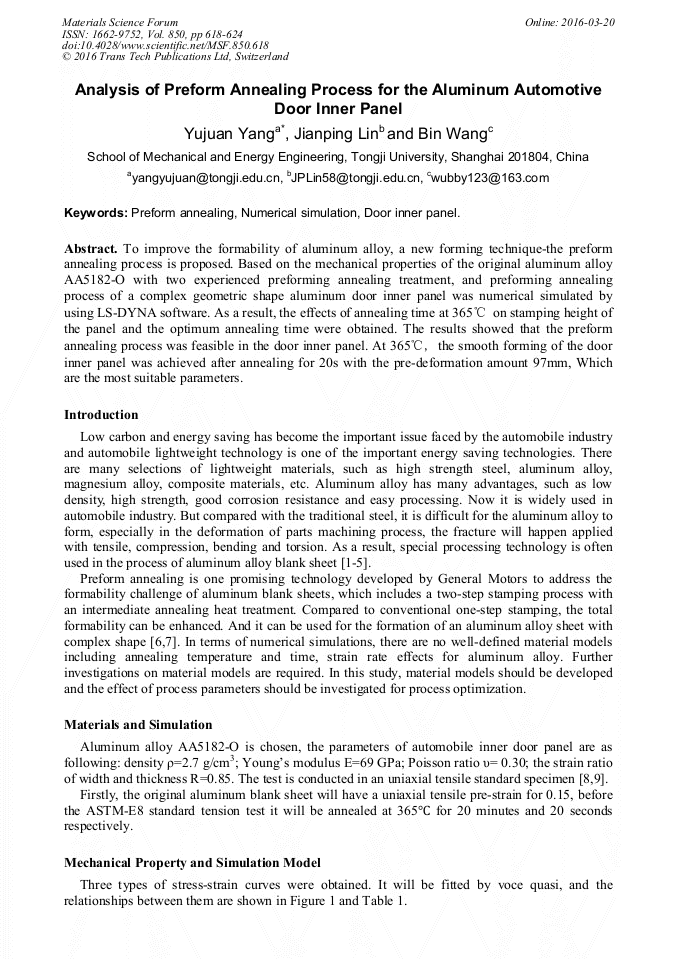

Analysis of Preform Annealing Process for the Aluminum Automotive Door Inner Panel

Abstract:

To improve the formability of aluminum alloy, a new forming technique-the preform annealing process is proposed. Based on the mechanical properties of the original aluminum alloy AA5182-O with two experienced preforming annealing treatment, and preforming annealing process of a complex geometric shape aluminum door inner panel was numerical simulated by using LS-DYNA software. As a result, the effects of annealing time at 365°C on stamping height of the panel and the optimum annealing time were obtained. The results showed that the preform annealing process was feasible in the door inner panel. At 365°C, the smooth forming of the door inner panel was achieved after annealing for 20s with the pre-deformation amount 97mm, Which are the most suitable parameters.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 618-624
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.618
• Online since: March 2016
• Authors: Yu Juan Yang, Jian Pin Lin, Bin Wang
• Keywords: Door Inner Panel, Numerical Simulation, Preform Annealing

References

[1] Serkan Toros, Fahrettin Ozturk, Ilyas Kacar．Review of Warm Forming of Aluminum-Magnesium Alloys [J]. Journal of Materials Processing Technology, 207(1/2/3) ( 2008) 1-12.

DOI: 10.1016/j.jmatprotec.2008.03.057

[2] Li J, Kim S, Lee T M, et al. The Effect of Pre-strain and Subsequent Annealing on the Mechanical Behavior of AA5182-O [J]. Materials Science and Engineering: A, 528(10/11) (2011) 3905-3914.

DOI: 10.1016/j.msea.2010.12.014

[3] Abedrabbo N, Pourboghrat F, Carsley J E. Forming of AA5182-O and AA5754-O at Elevated Temperatures Using Coupled Thermo-mechanical Finite Element Models [J]. International Journal of Plasticity, 23(5) (2007) 841-875.

DOI: 10.1016/j.ijplas.2006.10.005

[4] Butuc M C, Gracio J J, Rocha A B. A Theoretical Study on Forming Limit Diagrams Prediction [J]. Journal of Materials Processing Technology, 142(3) (2003) 714-724.

DOI: 10.1016/s0924-0136(03)00813-6

[5] Li J, Carsley J E, Stoughton T B, et al. Forming Limit Analysis for Two-stage Forming of 5182-O Aluminum Sheet with Intermediate Annealing [J]. International Journal of Plasticity, 45（2013）21-43.

DOI: 10.1016/j.ijplas.2012.10.004

[6] Abedrabbo N, Pourboghrat F, Carsley J E. Forming of AA5182-O and AA5754-O at Elevated Temperatures Using Coupled Thermo-Mechanical Finite Element Models [J]. International Journal of Plasticity, 23(5) (2007）841-875.

DOI: 10.1016/j.ijplas.2006.10.005

[7] Butuc MC, Gracio JJ, Rocha AB. A Theoretical Study on Forming Limit Diagrams Prediction [J]. Journal of Materials Processing Technology, 142(3) (2003) 714-724.

DOI: 10.1016/s0924-0136(03)00813-6

[8] Arthur Shapiro. Finite Element Modeling of Hot Stamping [J]. Steel Research, 80(9)（2009）658-654.

[9] Lee TM, Hartfield-Wünsch SE, Xu S. Demonstration of the Preform Anneal Process to Form a One-Piece Aluminum Door Inner Panel [J]. SAE Paper No. 2006-01-0987.

DOI: 10.4271/2006-01-0987
