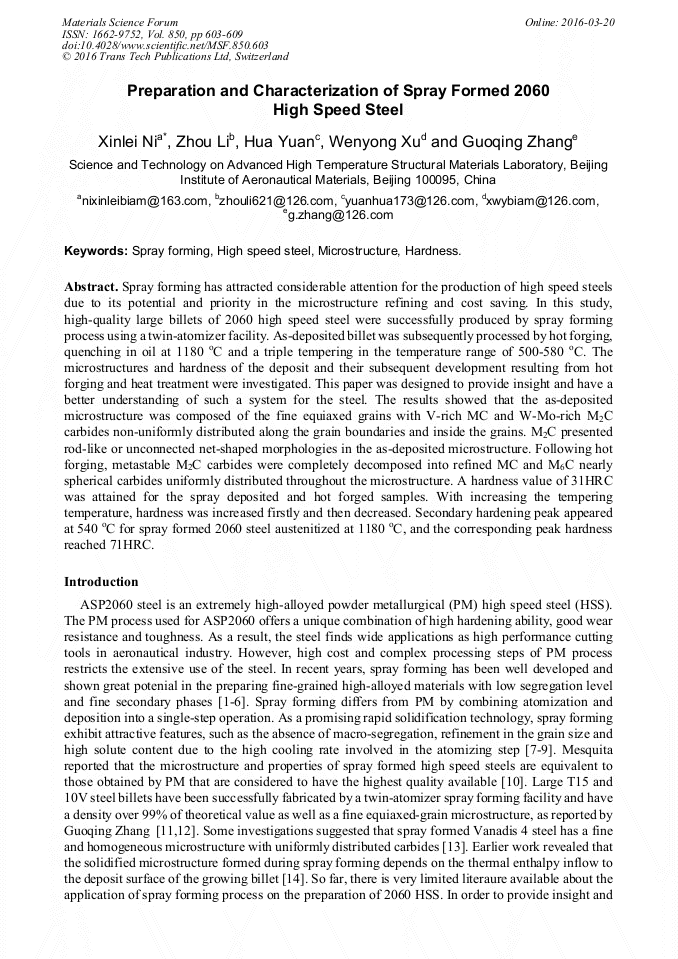

Preparation and Characterization of Spray Formed 2060 High Speed Steel

Abstract:

Spray forming has attracted considerable attention for the production of high speed steels due to its potential and priority in the microstructure refining and cost saving. In this study, high-quality large billets of 2060 high speed steel were successfully produced by spray forming process using a twin-atomizer facility. As-deposited billet was subsequently processed by hot forging, quenching in oil at 1180 °C and a triple tempering in the temperature range of 500-580 °C. The microstructures and hardness of the deposit and their subsequent development resulting from hot forging and heat treatment were investigated. This paper was designed to provide insight and have a better understanding of such a system for the steel. The results showed that the as-deposited microstructure was composed of the fine equiaxed grains with V-rich MC and W-Mo-rich M₂C carbides non-uniformly distributed along the grain boundaries and inside the grains. M₂C presented rod-like or unconnected net-shaped morphologies in the as-deposited microstructure. Following hot forging, metastable M₂C carbides were completely decomposed into refined MC and M₆C nearly spherical carbides uniformly distributed throughout the microstructure. A hardness value of 31HRC was attained for the spray deposited and hot forged samples. With increasing the tempering temperature, hardness was increased firstly and then decreased. Secondary hardening peak appeared at 540 °C for spray formed 2060 steel austenitized at 1180 °C, and the corresponding peak hardness reached 71HRC.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 603-609
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.603
• Online since: March 2016
• Authors: Xin Lei Ni*, Zhou Li, Hua Yuan, Wen Yong Xu, Guo Qing Zhang
• Keywords: Hardness, High Speed Steel, Microstructure, Spray Forming

References

[1] S. Guo, Z.L. Ning, M.X. Zhang, F.Y. Cao, J.F. Sun, Effects of gas to melt ratio on the microstructure of an Al-10. 83Zn-3. 39Mg-1. 22Cu alloy produced by spray atomization and deposition, Mater. Charact. 87 (2014) 62-69.

DOI: 10.1016/j.matchar.2013.10.030

[2] P. Bai, T.S. Dong, X.H. Hou, C.W. Zhao, Y.M. Xing, Microstructure and mechanical properties of spray-deposited Mg-12. 55Al-3. 33Zn-0. 58Ga-1Nd alloy, Mater. Charact. 61 (2010) 756-760.

DOI: 10.1016/j.matchar.2010.04.009

[3] F.W. Kang, G.Q. Zhang, J.F. Sun, Z. Li, J. Shen, Hot deformation behavior of a spray formed superalloy, J. Mater. Process. Technol. 204 (2008) 147-151.

DOI: 10.1016/j.jmatprotec.2007.11.089

[4] A.M. Rafael, A.B. Celso, Spray forming high speed steel—properties and processing, Mater. Sci. Eng., A. 383 (2004) 87-95.

[5] S. Alwin, U. Volker, E. Christoph, K. Rainer, K. Alfred, C.M. Maria, R. Roland, S. Wolfgang, S. Domenico, V. Dominique, Opportunities and challenges of spray forming high-alloyed steels, Mater. Sci. Eng., A. 477 (2008) 69-79.

[6] J.G. Zhang, H.S. Shi, D.S. Sun, Research in spray forming technology and its applications in metallurgy, J. Mater. Process. Technol. 138 (2003) 357-360.

[7] B. Cantor, K.H. Baik, P.S. Grant, Development of microstructure in spray formed alloys, Prog. Mater Sci. 42 (1997) 373-392.

DOI: 10.1016/s0079-6425(97)00033-9

[8] P.S. Grant, Solidification in spray forming, Metall. Mater. Trans. A. 38A (2007) 1520-1529.

[9] H.A. Godinho, A.L. R. Beletati, E.J. Giordano, C. Bolfarini, Microstructure and mechanical properties of a spray formed and extruded AA7050 recycled alloy, J. Alloys Compd. 586 (2014) S139-S142.

DOI: 10.1016/j.jallcom.2012.12.122

[10] R.A. Mesquita, C.A. Barbosa, High-speed steels produced by conventional casting, spray forming and powder metallurgy, Mater. Sci. Forum. 498-499 (2005) 244-250.

DOI: 10.4028/www.scientific.net/msf.498-499.244

[11] G.Q. Zhang, H. Yuan, D.L. Jiao, Z. Li, Y. Zhang, Z.W. Liu, Microstructure evolution and mechanical properties of T15 high speed steel prepared by twin-atomiser spray forming and thermo-mechanical processing, Mater. Sci. Eng., A. 558 (2012).

DOI: 10.1016/j.msea.2012.08.050

[12] X.L. Ni, Z. Li, H. Yuan, W.Y. Xu, Y. Zhang, G.Q. Zhang, As deposited microstructure of spray formed 10V high speed steel, Mater. Res. Innovations. 18 (2014) 295-300.

DOI: 10.1179/1432891714z.000000000830

[13] F. Yan, Z. Xu, H.S. Shi, J.F. Fan, Microstructure of the spray formed Vanadis 4 steel and its ultrafine structure, Mater. Charact. 59 (2008) 592-597.

DOI: 10.1016/j.matchar.2007.04.019

[14] E.S. Lee, W.J. Park, K.H. Baik, S. Ahn, Different carbide types and their effect on bend properties of a spray-formed high speed steel, Scripta Mater. 39 (1998) 1133-1138.

DOI: 10.1016/s1359-6462(98)00270-x

[15] M.G. Benz, T.F. Sawyer, W.T. Carter, R.J. Zabala, P.L. Dupree, Nitrogen in spray formed superalloys, Powder Metall. 37 (1994) 213-218.

DOI: 10.1179/pom.1994.37.3.213

[16] E.S. Lee, W.J. Park, J.Y. Jung, S. Ahn, Solidification microstructure and M2C carbide decomposition in a spray-formed high-speed steel, Metall. Mater. Trans. A. 29A (1998) 1395-1404.

DOI: 10.1007/s11661-998-0354-0

[17] E.S. Lee, W.J. Park, K.H. Baik, S. Ahn, Different carbide types and their effect on bend properties of a spray-formed high speed steel, Scripta Mater. 39 (1998) 1133-1138.

DOI: 10.1016/s1359-6462(98)00270-x

[18] H. Fredricksson, M. Hillert, M. Nica, The decomposition of the M2C carbide in high speed steel, Scand. J. Metall. 8 (1979) 115-122.

[19] M.R. Chomashchi, Quantitative microstructural analysis of M2 grade high speed steel during high temperature treatment, Acta Mater. 46 (1998) 5207-5220.

DOI: 10.1016/s1359-6454(98)00110-4

[20] M. Boccalini, H. Goldenstein, Solidification of high speed steel, Int. Mater. Rev. 46 (2001) 92-115.

[21] H.K. Moon, K.B. Lee, H. Kwon, Influences of Co addition and austenitizing temperature on secondary hardening and impact fracture behavior in P/M high speed steels of W-Mo-Cr-V(-Co) system, Mater. Sci. Eng., A. 474 (2008) 328-334.

DOI: 10.1016/j.msea.2007.04.014
