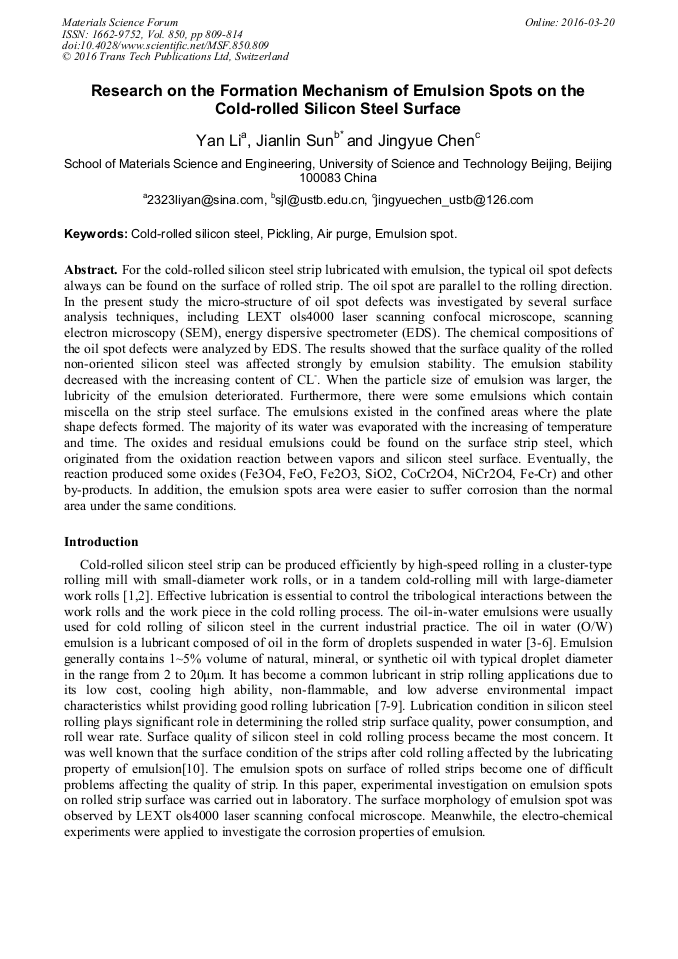

Research on the Formation Mechanism of Emulsion Spots on the Cold-Rolled Silicon Steel Surface

Abstract:

For the cold-rolled silicon steel strip lubricated with emulsion, the typical oil spot defects always can be found on the surface of rolled strip. The oil spot are parallel to the rolling direction. In the present study the micro-structure of oil spot defects was investigated by several surface analysis techniques, including LEXT ols4000 laser scanning confocal microscope, scanning electron microscopy (SEM), energy dispersive spectrometer (EDS). The chemical compositions of the oil spot defects were analyzed by EDS. The results showed that the surface quality of the rolled non-oriented silicon steel was affected strongly by emulsion stability. The emulsion stability decreased with the increasing content of CL^-. When the particle size of emulsion was larger, the lubricity of the emulsion deteriorated. Furthermore, there were some emulsions which contain miscella on the strip steel surface. The emulsions existed in the confined areas where the plate shape defects formed. The majority of its water was evaporated with the increasing of temperature and time. The oxides and residual emulsions could be found on the surface strip steel, which originated from the oxidation reaction between vapors and silicon steel surface. Eventually, the reaction produced some oxides (Fe3O4, FeO, Fe2O3, SiO2, CoCr2O4, NiCr2O4, Fe-Cr) and other by-products. In addition, the emulsion spots area were easier to suffer corrosion than the normal area under the same conditions.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 809-814
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.809
• Online since: March 2016
• Authors: Yan Li, Jian Lin Sun*, Jing Yue Chen
• Keywords: Air Purge, Cold-Rolled Silicon Steel, Emulsion Spot, Pickling

References

[1] J.H. Wiebenga, M. Weiss, B. Rolfe, A.H. van den Bkkgaard, Product defect compensation by robust optimization of a cold roll forming process. J Mater Process Tech, 213 (2013) 978-986.

DOI: 10.1016/j.jmatprotec.2013.01.006

[2] H.B. Xiea, Z. Y Jianga, W.Y. D Yuenb, Analysis of friction and surface roughness effects on edge crack evolution of thin strip during cold rolling. Tribol Int, 44 (2011) 971-979.

DOI: 10.1016/j.triboint.2011.03.029

[3] H.R. Le, M.P.F. Sutcliffe, Analysis of surface roughness of cold-rolled aluminium foil. Wear 244 (2000) 71-78.

DOI: 10.1016/s0043-1648(00)00441-5

[4] D. Kevin, G. John. Lenard, The effect of roll roughness and lubricant viscosity on the loads on the mill during cold rolling of steel strips. J Mater Process Tech, 168 (2005) 16-24.

DOI: 10.1016/j.jmatprotec.2004.09.091

[5] K. Louaisil, M. Dubar, R. Deltombe, Analysis of interface temperature, forward slip and lubricant influence on friction and wear in cold rolling. Wear, 266 (2009) 119-128.

DOI: 10.1016/j.wear.2008.06.003

[6] A.K. Tieu, P.B. Kosasih, A. Godbole, A thermal analysis of strip-rolling in mixed film lubrication with O/W emulsions. Tribol Int, 39 (2006) 1591-1600.

DOI: 10.1016/j.triboint.2006.01.015

[7] A. Azushima, S. Inagaki, H. Ohta, Plating out oil film thickness on roll and workpiece during cold rolling with O/W emulsion. J Tribol-T ASME, 54 (2011) 283-289.

DOI: 10.1080/10402004.2010.542275

[8] N. Davood, H. M Mohammad, Pitting corrosion of cold rolled solution treated 17-4 PH stainless steel. Corros Sci, 80 (2014) 290–298.

DOI: 10.1016/j.corsci.2013.11.039

[9] B. Mazza, P. Pedeferri, D. Sinigaglia, A. Cigada, L. Lazzari, Relationship between the electrochemical and corrosion behavior and the structure of stainless steels subjected to cold plastic deformation, J. Electrochem. Soc. 123 (1976) 1157–1163.

DOI: 10.1149/1.2133026

[10] A. Barbucci, G. Cerisola, P.L. Cabot, Effect of cold-working in the passivebehavior of 304 stainless steel in sulfate media, J. Electrochem. Soc. 149 (2002) B534–B542.

DOI: 10.1149/1.1516774
