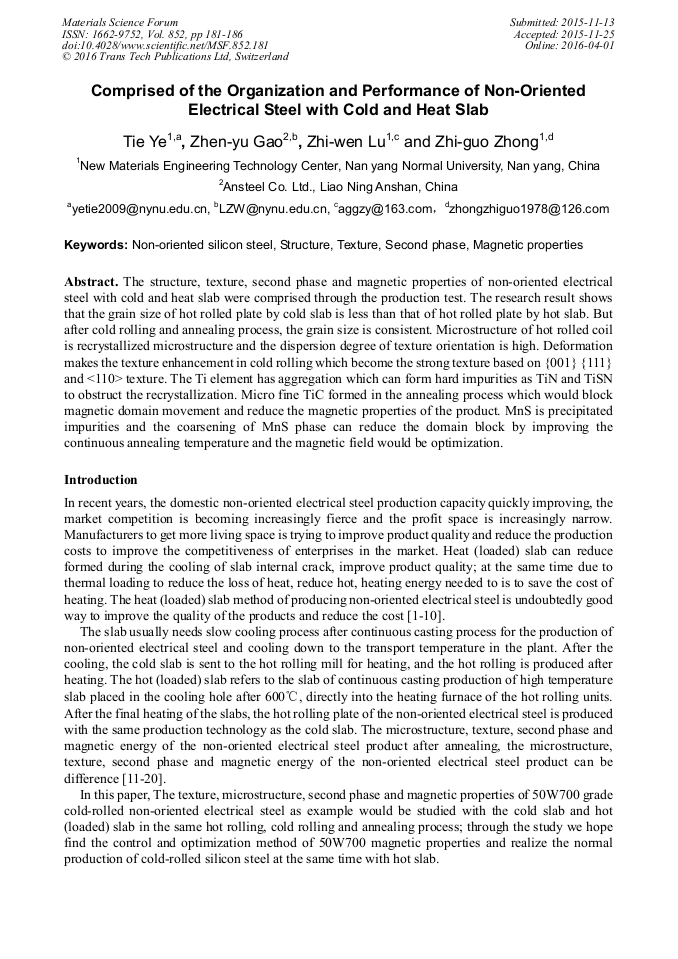

Comprised of the Organization and Performance of Non-Oriented Electrical Steel with Cold and Heat Slab

Abstract:

The structure, texture, second phase and magnetic properties of non-oriented electrical steel with cold and heat slab were comprised through the production test. The research result shows that the grain size of hot rolled plate by cold slab is less than that of hot rolled plate by hot slab. But after cold rolling and annealing process, the grain size is consistent. Microstructure of hot rolled coil is recrystallized microstructure and the dispersion degree of texture orientation is high. Deformation makes the texture enhancement in cold rolling which become the strong texture based on {001} {111} and <110> texture. The Ti element has aggregation which can form hard impurities as TiN and TiSN to obstruct the recrystallization. Micro fine TiC formed in the annealing process which would block magnetic domain movement and reduce the magnetic properties of the product. MnS is precipitated impurities and the coarsening of MnS phase can reduce the domain block by improving the continuous annealing temperature and the magnetic field would be optimization.

• Periodical: Materials Science Forum (Volume 852)
• Pages: 181-186
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.852.181
• Online since: April 2016
• Authors: Tie Ye, Zhen Yu Gao, Zhi Wen Lu, Zhi Guo Zhong
• Keywords: Magnetic Properties, Non-Oriented Silicon Steel, Second Phase, Structure, Texture

References

[1] Z. Z. He. Electrical Steel. (Chinese Metallurgy Engineering Press, China 1997).

[2] T. Ye, C. Zhou and Z. Z. Gao: Function Mater Function Mater, 45 (2014) 03110-03114.

[3] D. Steiner, M. Petrovic and Jenko, Correlation of titanium content and core loss in non-oriented electrical steel sheets, Metalurgija, 49 (2010) 37-40.

[4] K. Chikara: Electrical Engineering in Japan, 180 (2012) 466-471.

[5] C. Krzysztof, Philosophical Magazine Letters Philosophical Magazine Letters, 90 (2010) 809-817.

[6] T. Ye, C. Zhou and Z. Z. Gao, Effect of hot roller cooling on magnetic properties of longitudinal strip coil of cold rolled non-oriented electrical steel and process optimization Special Steel, 34 (2013) 28-31.

[7] J. G. L. Fernando, R. F and D. S. Joao: Journal of Magnetism and Magnetic Materials, 323 (2011) 2335-2339.

[8] Z. Z. Gao, C. M. Chen, Z. Y. Zhang, W. Liu and S Liu: Metal Function Mater, 22 (2015) 27-31.

[9] T. Ye, C. Zhou and Z. Z. Gao Ye T, Zhou C, Gao Z Y: Applied Mechanics and Materials, 416/417 (2013) 1645-1651.

[10] L. Xie and P. Yang: Transactions of Materials and Heat Treatment, (2013) 9-17.

[11] Xie L, Yang P, Xia D, et al: Journal of Magnetism and Magnetic Materials, 374 (2015) 655-662.

[12] A. Sonboli, M. R. Toroghinejad and H. Edris: Journal of Magnetism and Magnetic Materials, 385 (2015) 331-338.

[13] H. Liu, J. Schneider and H Li: Journal of Magnetism and Magnetic Materials, 374 (2015) 577-586.

[14] H. Li, H. Liu and Z. Liu: Materials Characterization, 103(2015)101-106.

[15] M. Gallaugher, P. Ghosh and A. M. Knight: Journal of Magnetism and Magnetic Materials, 382 (2015)124-133.

[16] K. M. Lee, S. Y. Park and M. Y. Huh: Journal of Magnetism and Magnetic Materials, 354(2014) 324-332.

[17] P. Ghosh, R. R. Chromik and B. Vaseghi: Journal of Magnetism and Magnetic Materials, 365 (2014) 14-22.

[18] S. Chen, J. Butler and S. Melzer: Journal of Magnetism and Magnetic Materials, Journal of Magnetism and Magnetic Materials, 368 (2014) 342-352.

DOI: 10.1016/j.jmmm.2014.05.054

[19] X. Bian, Y. Zeng and D. Nan: Journal of Alloys and Compounds, 588 (2014)108-113.

[20] Y. Wan, W. Chen and S Wu: Journal of Rare Earths, 31(2013) 727-733.
