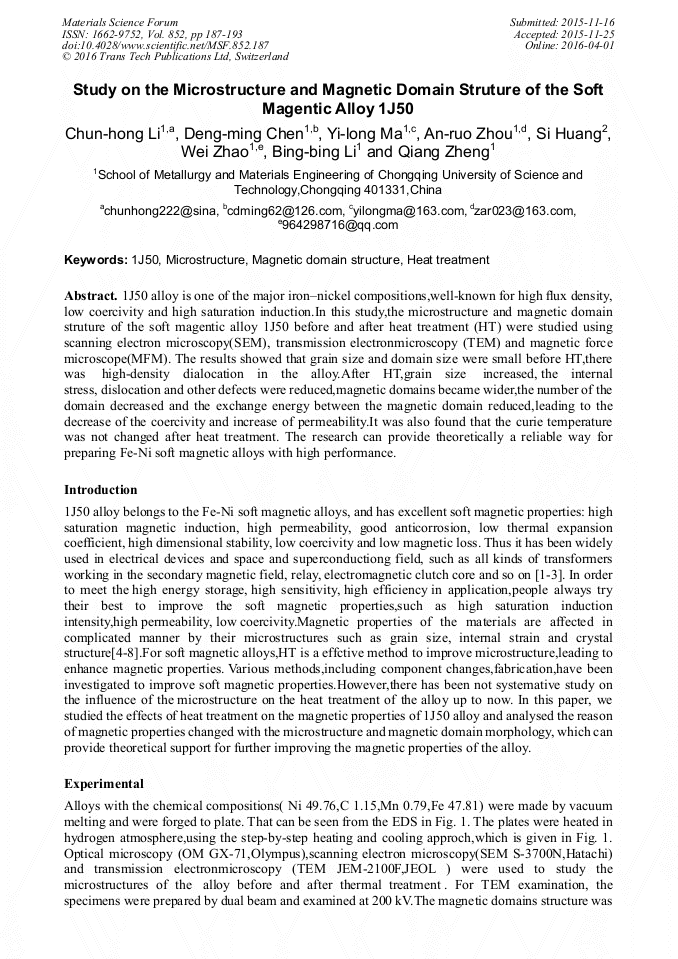

Study on the Microstructure and Magnetic Domain Struture of the Soft Magentic Alloy 1J50

Abstract:

1J50 alloy is one of the major iron–nickel compositions,well-known for high flux density, low coercivity and high saturation induction.In this study,the microstructure and magnetic domain struture of the soft magentic alloy 1J50 before and after heat treatment (HT) were studied using scanning electron microscopy (SEM)、transmission electronmicroscopy (TEM) and magnetic force microscope (MFM). The results showed that grain size and domain size were small before HT,there was high-density dialocation in the alloy.After HT,grain size increased, the internal stress, dislocation and other defects were reduced,magnetic domains became wider,the number of the domain decreased and the exchange energy between the magnetic domain reduced,leading to the decrease of the coercivity and increase of permeability.It was also found that the curie temperature was not changed after heat treatment. The research can provide theoretically a reliable way for preparing Fe-Ni soft magnetic alloys with high performance.

• Periodical: Materials Science Forum (Volume 852)
• Pages: 187-193
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.852.187
• Online since: April 2016
• Authors: Chun Hong Li*, Deng Ming Chen, Yi Long Ma, An Ruo Zhou, Si Huang, Wei Zhao, Bing Bing Li, Qiang Zheng
• Keywords: 1J50, Heat Treatment, Magnetic Domain Structure, Microstructure

References

[1] R.M. Bozorth, Ferromagnetism, IEEE Press, New York, (1993).

[2] L. Coutu, L. Chaput, T. Waeckerle. 50. 50 FeNi permalloy with Ti and Cr additions for improved hardness and corrosion resistance[J]. Journal of Magnetism and Magnetic Materials, 2000 : 237-239.

DOI: 10.1016/s0304-8853(00)00125-6

[3] Huaqiang Wu, Cheng Qian, Yunjie Cao, Peipei Cao. Synthesis and magnetic properties of size-controlled FeNi alloy nanoparticles attached on multiwalled carbon nanotubes. Journal of Physics and Chemistry of Solids 71 (2010) 290–295.

DOI: 10.1016/j.jpcs.2009.12.079

[4] WU Lai-zhi, CHEN Jun, DU Zhong-ze, WANG Jing-tao. Microstructures of ultra-fine grained FeCoV alloys processed by ECAP plus cold rolling and their evolutions during tempering[J]. Trans. Nonferrous Met. Soc. China 20(2010): 602-606.

DOI: 10.1016/s1003-6326(09)60185-0

[5] LEE B H, AHN B S, KIM D G, SUNG T O, JEON H, JINHO A, YOUNG D K. Microstructure and magnetic properties of nanosized FeCo alloy powders synthesized by mechanochemical and mechanical alloy process. Materials Letters, 2003, 57(5/6): 1103−1107.

DOI: 10.1016/s0167-577x(02)00938-2

[6] A. Azizi S.K. Sadrnezhaad,A. Hasani. Morphology and magnetic properties of FeCo nanocrystalline powder produced by modified mechanochemical procedure. Journal of Magnetism and Magnetic Materials 322 (2010) 3551–3554.

DOI: 10.1016/j.jmmm.2010.07.004

[7] A. Azizi, H. Yoozbashizadeh, A. Yourdkhani, M. Mohammadi, J. Magn. Magn. Mater. 322 (2010) 56–59.

[8] A. Azizi S.K. Sadrnezhaad, Ceram. Int, in press, doi: 10. 1016/j. ceramint. 2010. 06. 004.

[9] Nan Wang, Ruining Yang, Wenjing Yao. Interactive Effect of Grain Orientation and Grain Size on Magnetic Properties of Fe–78 wt% Ni Ribbons. J. Mater. Sci. Technol, 2012, 28(9), 833–836.

DOI: 10.1016/s1005-0302(12)60139-x

[10] J. Degauque, B. Astie, J.L. Porteseil and R. Vergne:J. Magn. Magn. Mater., 1982, 26, 261.

[11] T. Bitoh, A. Makino and A. Inoue: J. Magn. Magn. Mater., 2004, 272–276, 1445.

[12] T. Sourmail. Evolution of strength and coercivity during annealing of FeCo based alloys. Scripta Materialia 51 (2004) 589–591.

DOI: 10.1016/j.scriptamat.2004.05.028
