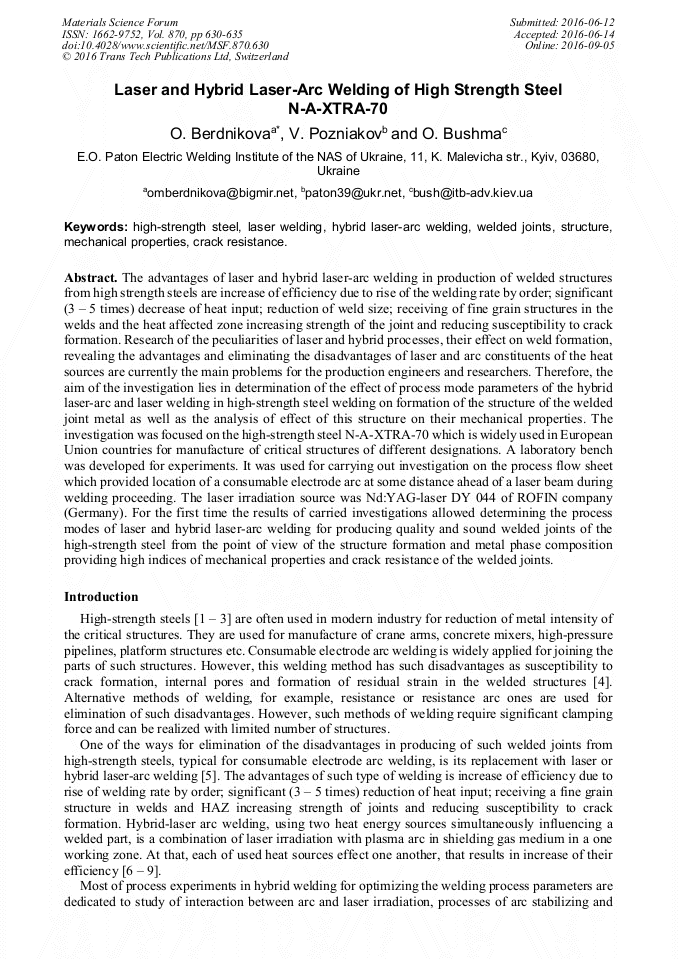

Laser and Hybrid Laser-Arc Welding of High Strength Steel N-A-XTRA-70

Abstract:

The advantages of laser and hybrid laser-arc welding in production of welded structures from high strength steels are increase of efficiency due to rise of the welding rate by order; significant (3 – 5 times) decrease of heat input; reduction of weld size; receiving of fine grain structures in the welds and the heat affected zone increasing strength of the joint and reducing susceptibility to crack formation. Research of the peculiarities of laser and hybrid processes, their effect on weld formation, revealing the advantages and eliminating the disadvantages of laser and arc constituents of the heat sources are currently the main problems for the production engineers and researchers. Therefore, the aim of the investigation lies in determination of the effect of process mode parameters of the hybrid laser-arc and laser welding in high-strength steel welding on formation of the structure of the welded joint metal as well as the analysis of effect of this structure on their mechanical properties. The investigation was focused on the high-strength steel N-A-XTRA-70 which is widely used in European Union countries for manufacture of critical structures of different designations. A laboratory bench was developed for experiments. It was used for carrying out investigation on the process flow sheet which provided location of a consumable electrode arc at some distance ahead of a laser beam during welding proceeding. The laser irradiation source was Nd:YAG-laser DY 044 of ROFIN company (Germany). For the first time the results of carried investigations allowed determining the process modes of laser and hybrid laser-arc welding for producing quality and sound welded joints of the high-strength steel from the point of view of the structure formation and metal phase composition providing high indices of mechanical properties and crack resistance of the welded joints.

• Periodical: Materials Science Forum (Volume 870)
• Pages: 630-635
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.870.630
• Online since: September 2016
• Authors: O. Berdnikova*, V. Pozniakov, O. Bushma
• Keywords: Crack Resistance, High-Strength Steel, Hybrid Laser-Arc Welding, Laser Welding, Mechanical Properties, Structure, Welded Joints

References

[1] I.V. Gorynin, Weldable housing high strength steels and their application, Naukova dumka, Kyiv, (1980).

[2] L.K. Gordienko, High strength steel, Metallurgia, Moscow, (1965).

[3] E. Houdremont, Handbuch der Sonderstahlkunde, Springer-Verlag, Berlin, (1956).

[4] V.F. Musiyachenko, L.I. Mikhodui, Arc welding of high strength alloy steels, Mashinostroenie, Moscow, (1987).

[5] A.G. Grigoryants, I.N. Shiganov, A.I. Misyurov, Technological laser machining processes: Textbook for high schools, Baumana MVTU, Moscow, (2006).

[6] C. Thomy, T. Seefeld, Basics and applications of laser-GMA hybrid welding, The Paton Welding Journal. 6 (2006) 28-31.

[7] C. Paul, F. Riedel, Hybrid laser welding - joining efforts, Photonika. 1 (2009) 2-5.

[8] P. Kah, A. Salminen, J. Martikainen, Laser-arc hybrid welding processes (Review), The Paton Welding Journal. 6 (2010) 32-40.

[9] X. Yuan, S. Yonglun, H. Kunping, Y. Xiaohong, New Development of Mechanisms of Laser-TIG Arc Hybrid Welding, Welding & Joining. 12 (2008) 21.

[10] V.D. Shelyagin, V. Yu. Khaskin, Laser-arc hybrid welding processes (Review), The Paton Welding Journal. 6 (2002) 25-28.

[11] V.D. Shelyagin, V. Yu. Khaskin, A.V. Siora, Gas-shielded laser and laser-arc welding of steels, The Paton Welding Journal. 1 (2007) 27-30.

DOI: 10.15407/tpwj2017.04.10

[12] I.V. Krivtsun, V.D. Shelyagin, V. Yu. Khaskin, Hybrid laser-plasma welding of aluminium alloys, The Paton Welding Journal. 5 (2007) 36-39.

DOI: 10.15407/tpwj2014.05.06

[13] V. Yu. Khaskin, V.N. Korzik, V.N. Sydorets, A.I. Bushma, B. Wu, Z. Luo, Improving the efficiency of hybrid welding of aluminum alloys, The Paton Welding Journal. 12 (2015) 14-18.

DOI: 10.15407/tpwj2015.12.03

[14] L.I. Markashova, V.D. Pozniakov, E.N. Berdnikova, The structure features of welded joints of high strength steel, formed in a laser welding, In Proceeding: Laser Technologies in Welding and Materials Processing. Proceedings of 6th International Conference, Katsiveli, IA Welding, Kyiv, 2013, pp.51-55.

DOI: 10.4028/www.scientific.net/msf.927.29

[15] L.I. Markashova, V.D. Pozniakov, V.D. Shelyagin, E.N. Berdnikova, Structure, strength and fracture toughness of 14KhGN2MDAFB steel joints at hybrid laser-arc welding, In Proceeding: Laser Technologies in Welding and Materials Processing, Abstracts of 7th International Conference, Odessa, IA Welding, Kyiv, 2015, p.32.

DOI: 10.15407/tpwj2016.06.18

[16] I.V. Krivtsun, V. Yu. Khaskin, A.I. Bushma, Laser-plasma welding stainless steels and aluminum alloys, Dopovidi NAN Ukrainy. 3 (2013) 76-82.

[17] O. Berdnikova, Structure and properties of laser-welded joints from high-strength steels, Applied Mechanics and Materials. 682 (2014) 240-245.

DOI: 10.4028/www.scientific.net/amm.682.240

[18] L.I. Markashova, G.M. Grigorenko, V.D. Poznyakov, E.N. Berdnikova, Influence of thermal cycles of welding and external loading on structural-phase variations and properties of joints of 17Kh2M steel, The Paton Welding Journal. 7 (2009) 18-25.

DOI: 10.15407/tpwj2016.06.18

[19] L.I. Markashova, V.D. Poznyakov, T.A. Alekseenko, E.N. Berdnikova, Effect of alloying of the welds on structure and properties of welded joints on steel 17Kh2M, The Paton Welding Journal. 4 (2011) 5-13.

DOI: 10.15407/tpwj2018.02.02

[20] V.D. Poznyakov, V.D. Shelyagin, S.L. Zhdanov, Laser-arc welding of high-strength steels with yield strength of more than 700 MPa, The Paton Welding Journal. 10 (2015) 19-24.

DOI: 10.15407/tpwj2015.10.03

[21] M. Kh. Shorshorov, V.V. Belov, Phase transformations and properties of steel in welding, Nauka, Moscow, (1972).
