Development of a New Truing Device Based on Electro-Contact Discharge Machining for Metal Bond Grinding Wheels

Abstract:

Metal bond grinding wheels can retain their shape and size under extreme grinding conditions. On the other hand, it is difficult to true them accurately and efficiently due to the severe wear of truing tools. To solve the problem, this paper proposes a new truing device based on electro-contact discharge machining. The device is designed so that the position of the electrode working face remains unchanged even if the electrode is worn. Some truing experiments were carried out using a prototype truing device for a metal bond diamond wheel of grain size #1000 under dry conditions. As a result, relatively high truing accuracy has been achieved in combination with an additional truing by a GC stone.

You might also be interested in these eBooks

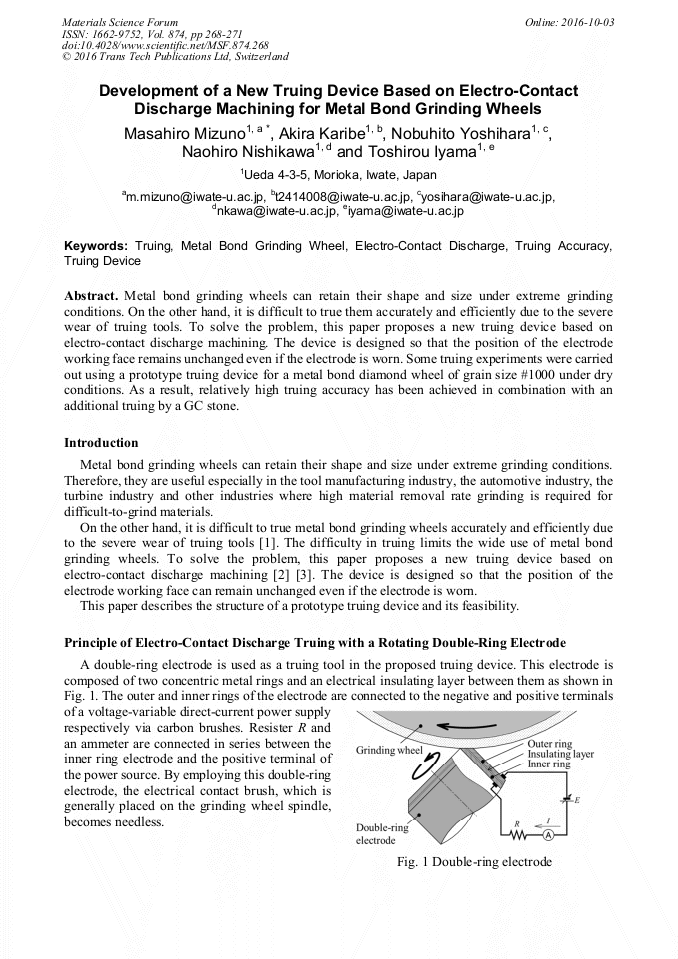

View Preview

Info:

Periodical:

Materials Science Forum (Volume 874)

Pages:

268-271

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.874.268

Citation:

Cite this paper

Online since:

October 2016

Authors:

Masahiro Mizuno*, Akira Karibe, Nobuhito Yoshihara, Naohiro Nishikawa, Toshiro Iyama

Keywords:

Electro-Contact Discharge, Metal Bond Grinding Wheel, Truing, Truing Accuracy, Truing Device

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J.A. Sanchez, I. Pombo, I. Cabanes, R. Ortiz, L.N. Lopez de Lacalle, Electrical discharge truing of metal-bonded CBN wheels using single-point electrode, Int. J. Mach. Tools Manuf. 48 (2008) 362-370.

DOI: 10.1016/j.ijmachtools.2007.10.002

Google Scholar

[2] J. Xie, Y.J. Liu, Y. Tang, A. Kubo, J. Tamaki, Ground surface integrity of granite by using dry electro-contact discharge dressing of #600 diamond grinding wheel, J. Mater. Process. Technol. 209 (2009) 6004–6009.

DOI: 10.1016/j.jmatprotec.2009.07.021

Google Scholar

[3] J. Xie, H.F. Xie, M.J. Luo, T.W. Tan, P. Li, Dry electro-contact discharge mutual-wear truing of micro diamond wheel V-tip for precision micro-grinding, Int. J. Mach. Tools Manuf. 60 (2012) 44-51.

DOI: 10.1016/j.ijmachtools.2012.05.006

Google Scholar
