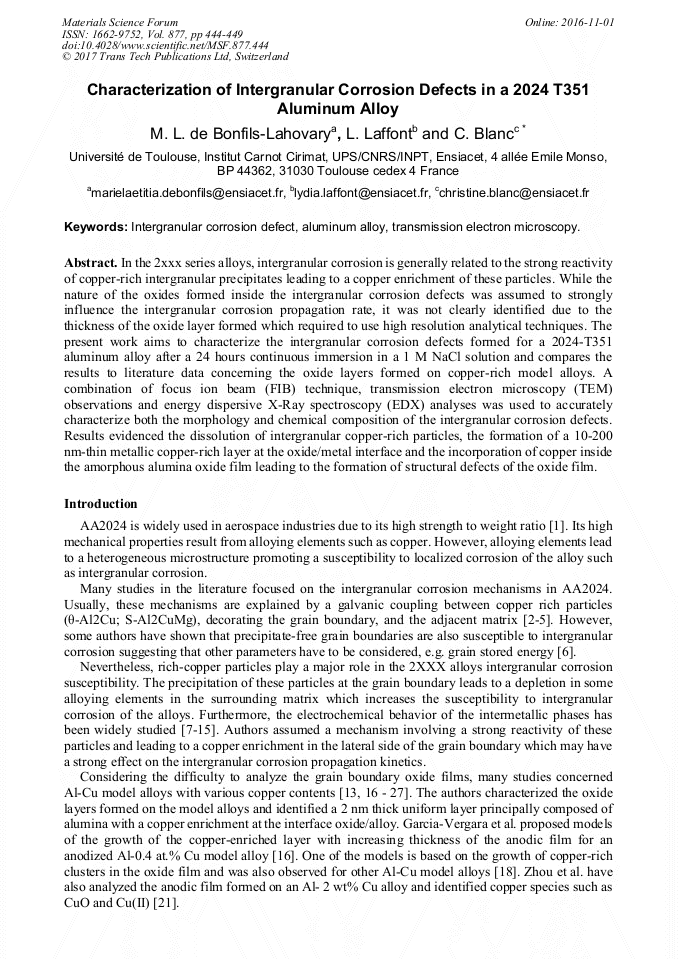

Characterization of Intergranular Corrosion Defects in a 2024 T351 Aluminium Alloy

Abstract:

In the 2xxx series alloys, intergranular corrosion is generally related to the strong reactivity of copper-rich intergranular precipitates leading to a copper enrichment of these particles. While the nature of the oxides formed inside the intergranular corrosion defects was assumed to strongly influence the intergranular corrosion propagation rate, it was not clearly identified due to the thickness of the oxide layer formed which required to use high resolution analytical techniques. The present work aims to characterize the intergranular corrosion defects formed for a 2024-T351 aluminum alloy after a 24 hours continuous immersion in a 1 M NaCl solution and compares the results to literature data concerning the oxide layers formed on copper-rich model alloys. A combination of focus ion beam (FIB) technique, transmission electron microscopy (TEM) observations and energy dispersive X-Ray spectroscopy (EDX) analyses was used to accurately characterize both the morphology and chemical composition of the intergranular corrosion defects. Results evidenced the dissolution of intergranular copper-rich particles, the formation of a 10-200 nm-thin metallic copper-rich layer at the oxide/metal interface and the incorporation of copper inside the amorphous alumina oxide film leading to the formation of structural defects of the oxide film.

• Periodical: Materials Science Forum (Volume 877)
• Pages: 444-449
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.877.444
• Online since: November 2016
• Authors: M.L. de Bonfils-Lahovary, Lydia Laffont, Christine Blanc*
• Keywords: Aluminium Alloy, Intergranular Corrosion Defect, Transmission Electron Microscopy

References

[1] Committee on Aging of U.S. Air Force Aircraft, Commission on Engineering and Technical Systems, National Materials Advisory Board, Division on Engineering and Physical Sciences, National Research Council. Aging of U.S. Air Force Aircraft: Final Report. Washington: National Academies Press, 1997. ISBN 0309174473, 9780309174473.

DOI: 10.17226/4782

[2] W. Zhang, G.S. Frankel, Transitions between pitting and intergranular corrosion in AA2024, Electrochimica Acta. 48 (2003) 1193-1210.

DOI: 10.1016/s0013-4686(02)00828-9

[3] J. Wloka, S. Virtanen, Detection of nanoscale η-MgZn2 phase dissolution from an Al-Zn-Mg-Cu alloy by electrochemical mocrotransients, Surface and Interface Analysis. 40 (2008) 1219-1225.

DOI: 10.1002/sia.2868

[4] V. Guillaumin, G. Mankowski, Localised corrosion of 2024 T351 aluminum alloy in chloride media, Corrosion Science. 41 (1998) 421-438.

DOI: 10.1016/s0010-938x(98)00116-4

[5] J.R. Galvele, S.M. DeMichelis, Mechanism of intergranular corrosion of Al-Cu alloys, Corrosion Science. 10 (1970) 795.

DOI: 10.1016/s0010-938x(70)80003-8

[6] C. Luo, X. Zhou, G.E. Thompson, Observations of intergranular corrosion in AA2024-T351: The influence of grain stored energy, Corrosion Science. 61 (2012) 35 - 44.

DOI: 10.1016/j.corsci.2012.04.005

[7] N. Birbilis, M.K. Cavanaugh, L. Kovarik, R.G. Buchheit, Nano-scale dissolution phenomena in Al–Cu–Mg alloys, Electrochemistry Communications. 10 (2008) 32-37.

DOI: 10.1016/j.elecom.2007.10.032

[8] R.G. Buchheit, R.K. Boger, M.W. Donohue, Copper dissolution phenomena in Al-Cu and Al-Cu-Mg alloys, Corrosion and Corrosion Control in Saltwater Environments, Proceedings of the Symposium on Seawater Corrosion. D.A. Shifler, P. M Natishan, T. Tsuru, S. Ito (Eds), The Electrochemical Society INC, Pennington. 99(2000).

DOI: 10.1002/maco.201608979

[9] R.G. Buchheit, The electrochemistry of q (Al2Cu), S (Al2CuMg) and T1 (Al2CuLi) and localized corrosion and environment assisted cracking in high strengh Al alloys. Aluminium Alloys: Their Physical and Mechanical Properties, Proceedings of the 7th International Conference ICAA7, Charlottesville, Virginia. E. A Starke, T.H. Sanders, W. A. Cassada (Eds), 331-337 (2000).

[10] R.G. Buchheit, L.P. Montes, M.A. Martinez, J. Michael, P.F. Hlava, The electrochemical characteristics of bulk-synthetized Al2CuMg, Journal of the Electrochemical Society. 146 (1999) 4424.

DOI: 10.1149/1.1392654

[11] N. Birbilis, R.G. Buchheit, The electrochemical characteristics of bulk synthesized Al2CuMg, Journal of the Electrochemical Society. 152 (2005) B140.

[12] L. Lacroix, L. Ressier, C. Blanc, G. Mankowski, Statistical study of the corrosion behavior of Al2CuMg intermetallics in AA2024-T351 by SPKFM, Journal of the Electrochemical Society. 155 (2008) C8.

DOI: 10.1149/1.2799089

[13] L. Lacroix, C. Blanc, N. Pebere, G.E. Thompson, B. Tribollet, V. Vivier, Simulating the galvanic coupling between S-Al2CuMg phase particles and the matrix of 2024 aerospace aluminium alloy, Corrosion Science. 64 (2012) 213-221.

DOI: 10.1016/j.corsci.2012.07.020

[14] L. Lacroix, L. Ressier, C. Blanc, G. Mankowski, Combination of AFM, SKPFM, and SIMS to study the corrosion behavior of S-phase particles in AA2024-T351, Journal of the Electrochemical Society. 155 (2008) C131.

DOI: 10.1149/1.2833315

[15] R.G. Buchheit, A compilation of corrosion potentials reported for intermetallic phases in aluminum-alloys, Journal of the Electrochemical Society. 142 (1995) 3994-3996.

DOI: 10.1149/1.2048447

[16] S. Garcia-Vergara, P. Skeldon, G.E. Thompson, P. Bailey, T.C.Q. Noakes, H. Habazaki, K. Shimizu, Morphology of enriched alloy layers in an anodized Al-Cu alloy, Applied Surface Science. 205 (2003) 121-127.

DOI: 10.1016/s0169-4332(02)01040-1

[17] Y. Liu, F. Colin, P. Skeldon, G. E Thompson, X. Zhou, H. Habazaki, K. Shimizu, Enrichment factors for copper in aluminium alloys following chemical and electrochemical surface treatments, Corrosion Science. 45 (2003) 1539-1544.

DOI: 10.1016/s0010-938x(02)00249-4

[18] X. Zhou, G.E. Thompson, H. Habazaki, K. Shimizu, P. Skeldon, G.C. Wood, Copper enrichment in Al-Cu alloys due to electropolishing and anodic oxidation, Thin Solid Films. 293 (1997) 327-332.

DOI: 10.1016/s0040-6090(96)09117-1

[19] H. Habazaki, K. Shimizu, M.A. Paez, P. Skeldon, G.E. Thompson, G.C. Wood, X. Xhou, Oxidation of Copper and Mobility of Copper Ions During Anodizing of an Al-1. 5wt. % Cu Alloy, Surface and Interface Analysis. 13 (1995) 892-898.

DOI: 10.1002/sia.740231307

[20] T. Hashimoto, X. Zhou, P. Skeldon, G.E. Thompson, Structure of the Copper-Enriched Layer Introduced by Anodic Oxidation of Copper-Containing Aluminium Alloy, Electrochimica Acta. 179 (2015) 394-401.

DOI: 10.1016/j.electacta.2015.01.133

[21] X. Zhou, G.E. Thompson, J. Robinson, P. Skelson, X-Ray Absorption Spectroscopy Study of the Incorporated Copper Species in Anodic alumina Films Formed on a Al-2 wt % Cu Alloy, Journal of The Electrochemical Society. 152 (2005) B393-B396.

DOI: 10.1149/1.2007087

[22] K. Shimizu, K. Kobayashi, G.E. Thompson, P. Skeldon, G.C. Wood, The influence of θ' precipitates on the anodizing behaviour of binary Al-Cu alloys, Corrosion Science. 39 (1997) 281-284.

DOI: 10.1016/s0010-938x(97)83347-1

[23] X. Zhou, G.E. Thompson, P. Skeldon, K. Shimizu, H Habazaki, G.C. Wood, The valence state of copper in anodic films formed on Al-1at. % Cu alloy, Corrosion Science. 47 (2005) 1299-1306.

DOI: 10.1016/j.corsci.2004.07.026

[24] C. Blanc, A. Freulon, M.C. Lafont, Y. Kihn, G. Mankowski, Modelling the corrosion behavior of Al2CuMg coarse particles in copper-rich aluminum alloy, Corrosion Science. 48 (2006) 3838-3851.

DOI: 10.1016/j.corsci.2006.01.012

[25] J. Idrac, C. Blanc, Y. Kihn, M.C. Lafont, G. Mankowski, P. Skeldon, G.E. Thompson, Electrochemical behavior of Magnetron-Sputtered Al-Cu alloy Films in Sulfate Solutions, Journal of The Electrochemical Society. 154 (2007) C286-C293.

DOI: 10.1149/1.2719623

[26] J. Idrac, G. Mankowski, G.E. Thompson, P. Skeldon, Y. Kihn, C. Blanc, Galvanic corrosion of aluminum-copper model alloys, Electrochimica Acta. 52 (2007) 7626-7633.

DOI: 10.1016/j.electacta.2007.05.056

[27] H. Habazaki, K. Shimizu, P. Skeldon, G.E. Thompson, G.C. Wood, Formation of amorphous anodic oxide films of controlled composition on alulminium alloys, Thin Solid Films. 300 (1997) 131-137.

DOI: 10.1016/s0040-6090(96)09491-6

[28] W. Zhang, G.S. Frankel, Localized Corrosion Growth Kinetics in AA2024 Alloys, Journal of the Electrochemical Society. 149 (2002) B510.

DOI: 10.1149/1.1513984

[29] W. Zhang, G. S Frankel, Anisotropy of localized corrosion in AA2024-T3, Electrochemical and Solid State letters. 3 (2000) 268.

DOI: 10.1149/1.1391121

[30] A. Pakes, G.E. Thompson, P. Skeldon, P.C. Morgan, Development of porous anodic films on 2014 in tetraborate electrolyte, Corrosion Science. 45 (2003) 1275-1287.

DOI: 10.1016/s0010-938x(02)00216-0
