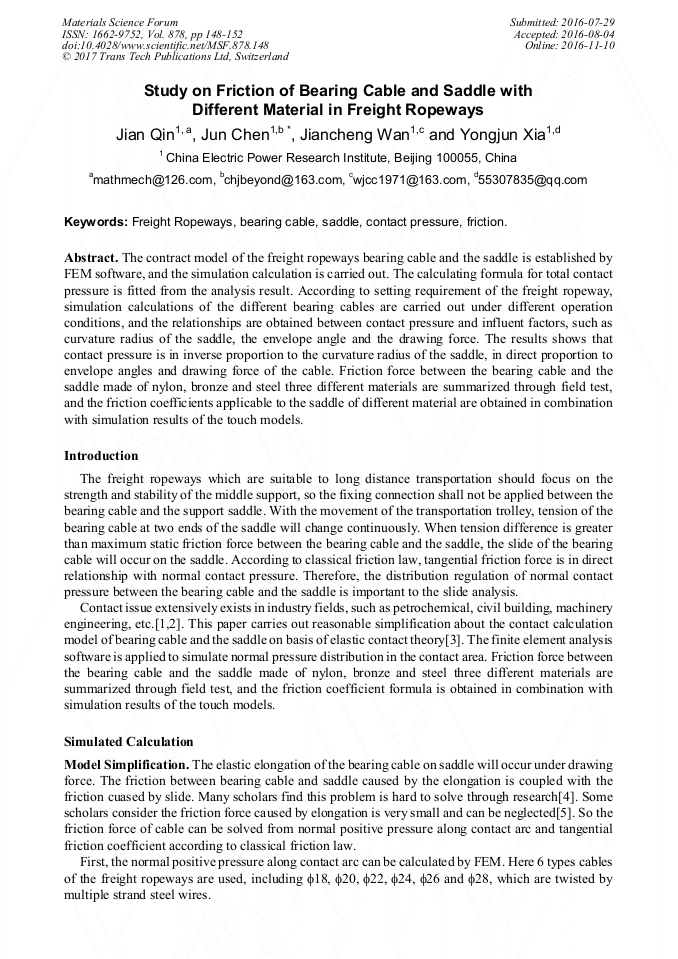

Study on Friction of Bearing Cable and Saddle with Different Material in Freight Ropeways

Abstract:

The contract model of the freight ropeways bearing cable and the saddle is established by FEM software, and the simulation calculation is carried out. The calculating formula for total contact pressure is fitted from the analysis result. According to setting requirement of the freight ropeway, simulation calculations of the different bearing cables are carried out under different operation conditions, and the relationships are obtained between contact pressure and influent factors, such as curvature radius of the saddle, the envelope angle and the drawing force. The results shows that contact pressure is in inverse proportion to the curvature radius of the saddle, in direct proportion to envelope angles and drawing force of the cable. Friction force between the bearing cable and the saddle made of nylon, bronze and steel three different materials are summarized through field test, and the friction coefficients applicable to the saddle of different material are obtained in combination with simulation results of the touch models.

• Periodical: Materials Science Forum (Volume 878)
• Pages: 148-152
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.878.148
• Online since: November 2016
• Authors: Jian Qin, Jun Chen*, Jian Cheng Wan, Yong Jun Xia
• Keywords: Bearing Cable, Contact Pressure, Freight Ropeways, Friction, Saddle

References

[1] Ciavarella M, Decuzzi P, The State of Stress Induced by the Plane Frictionless Cylindrical Contact in the case of Elastic Similarity[J], International Journal of Solids and Structures. 2001, 38: 4750-4523.

DOI: 10.1016/s0020-7683(00)00289-4

[2] ZHANG Qinghua, LI Qiao, Study on Cable-saddle Frictional Characteristics for Long-span Suspension Bridges[J], China Civil Engineering Journal. 2013, 46(4): 85-92.

[3] Peyrot Alain H, Goulois A M, Analysis of Cable Structures[J]. J. Computer Struct. 1999, 10: 805-813.

[4] Johnson. K. L, Contact Mechanics, Cambridge University Press, (1979).

[5] Cheng Haiqian, Cao Gangyi, Cheng Qinghua. Influence of Contact Pressure Distribution on Friction Resistance in Pressure Bending Duct[J]. Journal of Wuhan University of Technology. 2012, 36(2): 293-297.
