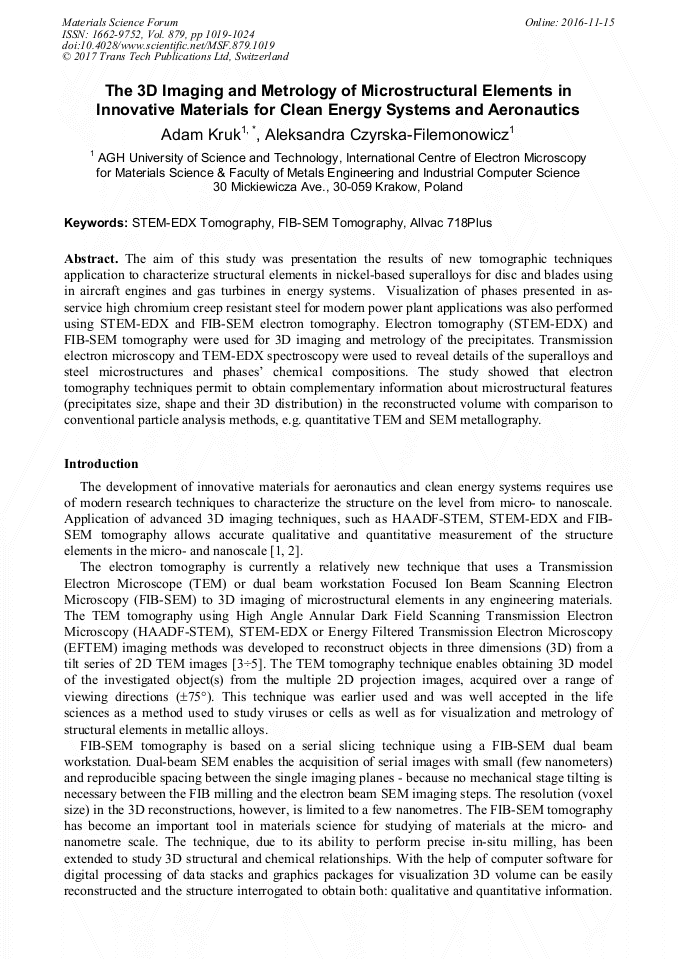

The 3D Imaging and Metrology of Microstructural Elements in Innovative Materials for Clean Energy Systems and Aeronautics

Abstract:

The aim of this study was presentation the results of new tomographic techniques application to characterize structural elements in nickel-based superalloys for disc and blades using in aircraft engines and gas turbines in energy systems. Visualization of phases presented in as-service high chromium creep resistant steel for modern power plant applications was also performed using STEM-EDX and FIB-SEM electron tomography. Electron tomography (STEM-EDX) and FIB-SEM tomography were used for 3D imaging and metrology of the precipitates. Transmission electron microscopy and TEM-EDX spectroscopy were used to reveal details of the superalloys and steel microstructures and phases’ chemical compositions. The study showed that electron tomography techniques permit to obtain complementary information about microstructural features (precipitates size, shape and their 3D distribution) in the reconstructed volume with comparison to conventional particle analysis methods, e.g. quantitative TEM and SEM metallography.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1019-1024
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1019
• Online since: November 2016
• Authors: Adam Kruk*, Aleksandra Czyrska-Filemonowicz
• Keywords: Allvac 718Plus, FIB-SEM Tomography, STEM-EDX Tomography

References

[1] P. A. Midgley, R.E. Dunin-Borkowski, Nature Materials 8, 2 (2009) 271 - 280.

[2] A. Kruk, A. Czyrska-Filemonowicz; Archives of Metallurgy and Materials 58, (2013) 387-392.

[3] R. M. Kearsey, J. Tsang, S. Oppenheimer, E. Mcdevitt, JOM 64, 2 (2012) p.241.

[4] X. Xishan, G. Wang, J. Dong, et al., Superalloy 718, 625, 706 and Derivatives 2005, ed. by E.A. Loria, TMS (The Minerals, Metals & Materials Society) (2005).

[5] W. D. Cao, R. L. Kennedy, Superalloys 2004, Seven Springs Conference, Seven Springs, ed. by E.A. Loria, TMS (The Minerals, Metals & Materials Society) (2004).

[6] A. Kruk: Tomografia elektronowa i jej zastosowanie w obrazowaniu i metrologii mikrostruktury materiałów — Electron tomography and its application in imaging and metrology of the microstructure of materials, AGH Kraków, (2012).

[7] P. J. Ennis, A. Czyrska-Filemonowicz, , Inżynieria Materiałowa; 22, 4 (2001) 311–318.

[8] E. J. Pickering, H. Mathur, A. Bhowmik, et al., Acta Materialia 60, (2012) 2757-2769.

[9] B. Dubiel, A. Kruk, E. Stępniowska, G. Cempura, D. Geiger, P. Formanek, J.C. Hernandez, P.A. Midgley, A. Czyrska-Filemonowicz: J. Microscopy 236 (2009) 149–157.

DOI: 10.1111/j.1365-2818.2009.03283.x
