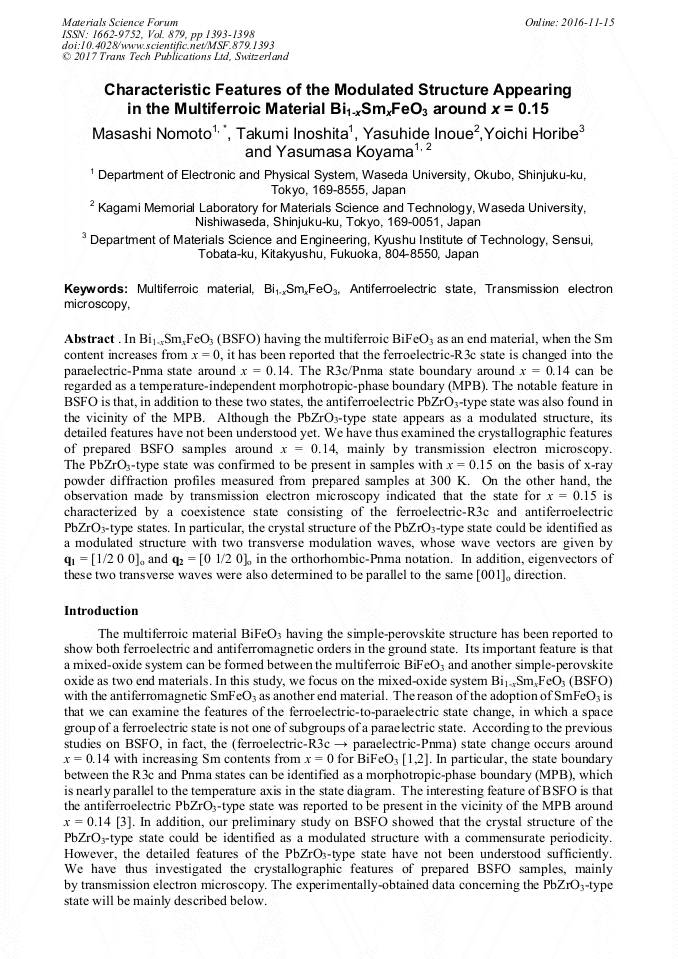

Characteristic Features of the Modulated Structure Appearing in the Multiferroic Material Bi_1-xSm_xFeO₃ around x = 0.15

Abstract:

In Bi_1-xSm_xFeO₃ (BSFO) having the multiferroic BiFeO₃ as an end material, when the Sm content increases from x = 0, it has been reported that the ferroelectric-R3c state is changed into the paraelectric-Pnma state around x = 0.14. The R3c/Pnma state boundary around x = 0.14 can be regarded as a temperature-independent morphotropic-phase boundary (MPB). The notable feature in BSFO is that, in addition to these two states, the antiferroelectric PbZrO₃-type state was also found in the vicinity of the MPB. Although the PbZrO₃-type state appears as a modulated structure, its detailed features have not been understood yet. We have thus examined the crystallographic features of prepared BSFO samples around x = 0.14, mainly by transmission electron microscopy. The PbZrO₃-type state was confirmed to be present in samples with x = 0.15 on the basis of x-ray powder diffraction profiles measured from prepared samples at 300 K. On the other hand, the observation made by transmission electron microscopy indicated that the state for x = 0.15 is characterized by a coexistence state consisting of the ferroelectric-R3c and antiferroelectric PbZrO₃-type states. In particular, the crystal structure of the PbZrO₃-type state could be identified as a modulated structure with two transverse modulation waves, whose wave vectors are given by q₁ = [1/2 0 0]_o and q₂ = [0 1/2 0]_o in the orthorhombic-Pnma notation. In addition, eigenvectors of these two transverse waves were also determined to be parallel to the same [001]_o direction.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1393-1398
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1393
• Online since: November 2016
• Authors: Masashi Nomoto, Takumi Inoshita, Yasuhide Inoue, Yoichi Horibe, Yasumasa Koyama
• Keywords: Antiferroelectric State, Bi_1-xSm_xFeO₃, Multiferroic Material, Transmission Electron Microscopy (TEM)

References

[1] S. Fujino, M. Murakami, V. Anbusathaiah, S. -H. Lim, V. Nagarajan, C. J. Fennie, M. Wuttig, L. Salamanca-Riba, and I. Takeuchi, Appl. Phys. Lett. 92, 202904 (2008).

DOI: 10.1063/1.2931706

[2] SB Emery, C. -J. Cheng, D. Kan, FJ Rueckert, SP Alpay, V. Nagarajan, I. Takeuchi, and BO Wells, Appl. Phys. Lett. 97, 152902 (2010).

[3] S. Karimi, I. M. Reaney, Y. Han, J. Pokorny, and I. Sterianou, J. Mater. Sci. 44, 51025112 (2009).

[4] B. Noheda, D. E. Cox, G. Shirane, S. -E. Park, L. E. Cross, and Z. Zhong, Phys. Rev. Lett. 86, 3891 (2001).

[5] D. Viehland, and J. F. Li, Appl. Phys. 88, 4794 (2000).

[6] Ching-Jung Cheng, Albina Y. Borisevich, Daisuke Kan, Ichiro Takeuchi, and Valanoor Nagarajan, Chem. Mater, 22, 2588 (2010).

[7] C. -J. Cheng, D. Kan, S. -H. Lim, W. R. McKenzie, P. R. Munroe, L. G. Salamanca-Riba, R. L. Withers, I. Takeuchi, and V. Nagarajan, Phys. Rev. B80, 014109 (2009).

[8] Young Kyu Jeong, Chung W. Bark, Sangwoo Ryu, Jung-Hoon Lee and Hyun Myung Jang J, J. Kor. Phys. 58, 817820 (2011).

[9] Manoj K. Singh, W. Prellier, M. P. Singh, Ram S. Katiyar, and J. F. Scott3, Phys. Rev. B77, 144403 (2008).
