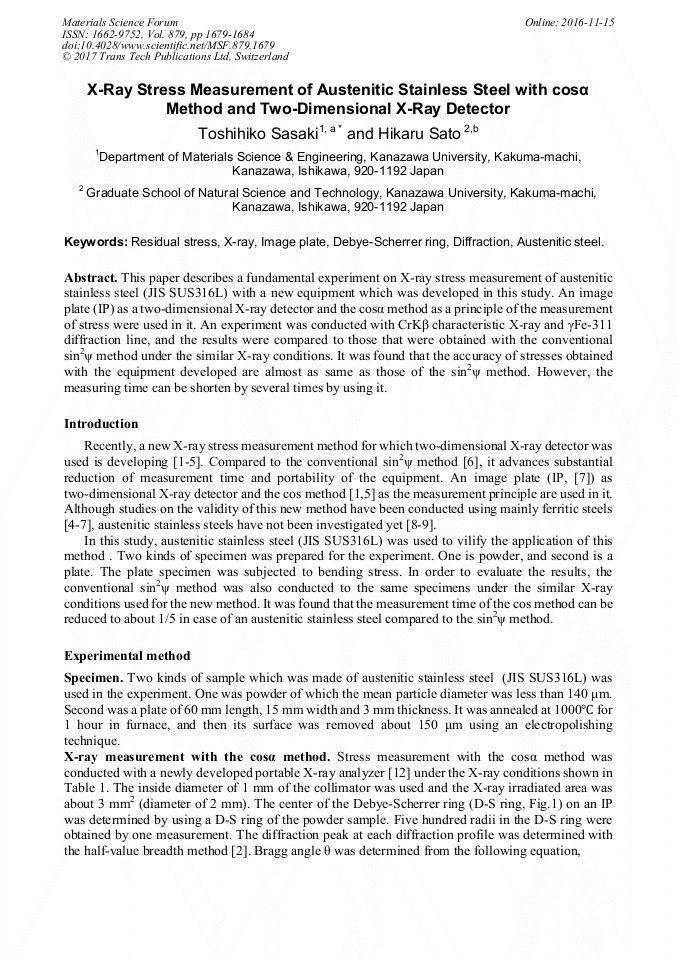

X-Ray Stress Measurement of Austenitic Stainless Steel with cosα Method and Two-Dimensional X-Ray Detector

Abstract:

This paper describes a fundamental experiment on X-ray stress measurement of austenitic stainless steel (JIS SUS316L) with a new equipment which was developed in this study. An image plate (IP) as a two-dimensional X-ray detector and the cosα method as a principle of the measurement of stress were used in it. An experiment was conducted with CrKβ characteristic X-ray and γFe-311 diffraction line, and the results were compared to those that were obtained with the conventional sin²ψ method under the similar X-ray conditions. It was found that the accuracy of stresses obtained with the equipment developed are almost as same as those of the sin²ψ method. However, the measuring time can be shorten by several times by using it.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1679-1684
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1679
• Online since: November 2016
• Authors: Toshihiko Sasaki*, Hikaru Sato
• Keywords: Austenitic Steel, Debye-Scherrer Ring, Diffraction, Image Plate, Residual Stress, X-Ray

References

[1] S. Taira, K. Tanaka and T. Yamasaki, A Method of X-Ray Microbeam Measurement of Local Stress and its Application to Fatigue Crack Growth Problems, Society of Materials Science, Japan, Vol. 27, No. 294 (1978) 251–256.

[2] Y. Yoshioka, Stress measurement of a Localized Area by Single X-ray incidence, Proceedings of the 27st Symposium on X-Ray Studies on Mechanical Behavior of Materials, The Society of Materials Science, Japan, (1990) 1-8.

[3] A. Schubert, M. Kämpfe, E. Ermirich, J. Auerswald and K. Tränkner, Use of An X-Ray Imaging Plate for Stress Analysis, Materials Science Forum, Vols. 166-169, (1994) 151-156.

DOI: 10.4028/www.scientific.net/msf.166-169.151

[4] T. Sasaki and Y. Hirose, Single Incident X-ray Stress Measurement for All Plane Stress Components Using Imaging Plate of Two-Dimensional X-Ray Detector, Society of the Materials Science, Japan, Vol. 44, No. 504 (1995) 1138–1143.

DOI: 10.2472/jsms.44.1138

[5] T. Sasaki and Y. Hirose, X-Ray Triaxial Stress Analysis Using Whole Diffraction Ring Detected with Imaging Plate, Transactions of the Japan Society of Mechanical Engineers, Series A, Vol. 61, No. 594 (1995)394–399.

DOI: 10.1299/kikaia.61.2288

[6] I. C. Noyan and J. B. Cohen, Residual Stress, Springer-Verlag, (1987).

[7] M. Sonoda, M. Takano, J. Miyahara and H. Kato, Computed Radiography Utilizing Scanning Laser Stimulated Luminescence, Radiology, Vol. 148 (1983) 833–838.

DOI: 10.1148/radiology.148.3.6878707

[8] A. Oda and H. Miyagawa, X-Ray Elastic Constants of 18Cr-8Ni Austenitic Stainless Steel, Society of Materials Science, Japan, Vol. 27, No. 294 (1977) 226–229.

[9] H. Miyagawa, S. Oyama and A. Oda, On the Accuracy and the Method of Data Treatment for X-Ray Stress Measurement of 18Cr-8Ni Austenitic Stainless Steel, Society of Materials Science, Japan, Vol. 29, No. 320 (1980) 428–433.
