Recrystallization Kinetics and Texture Evolution of Nb Stabilized Ferritic 430 Stainless Steel Cold Rolled and Isothermal Annealed

Paula Oliveira Malta; Iane Dutra Moutinho; Davi Silva Alves; Aline Vasconcelos Ferreira; Dagoberto Brandão Santos

doi:10.4028/www.scientific.net/MSF.879.1656

Paper Titles

Effect of Silicide on Dynamic Recrystallization in Near Alpha Titanium Alloy
p.1634

Manufacturing of ODS RAFM Steel: Mechanical and Microstructural Characterization
p.1639

Shape Recovery of Polymeric Matrix Composites by Irradiation
p.1645

Comparison of Microstructure and Mechanical Behavior of the Ferritic Stainless Steels ASTM 430 Stabilized with Niobium and ASTM 439 Stabilized with Niobium and Titanium
p.1651

Recrystallization Kinetics and Texture Evolution of Nb Stabilized Ferritic 430 Stainless Steel Cold Rolled and Isothermal Annealed
p.1656

Thermal Effect during Electromagnetic Pulse Welding Process
p.1662

Re-Melting Technique with High Intense Pulsed Plasma Beams Applied for Surface Modification of Steel - Own Investigations
p.1668

Effect of Preparation Conditions of TiB₂ Particle Dispersed Al Composites on Microstructure
p.1674

X-Ray Stress Measurement of Austenitic Stainless Steel with cosα Method and Two-Dimensional X-Ray Detector
p.1679

HomeMaterials Science ForumMaterials Science Forum Vol. 879Recrystallization Kinetics and Texture Evolution...

Recrystallization Kinetics and Texture Evolution of Nb Stabilized Ferritic 430 Stainless Steel Cold Rolled and Isothermal Annealed

Abstract:

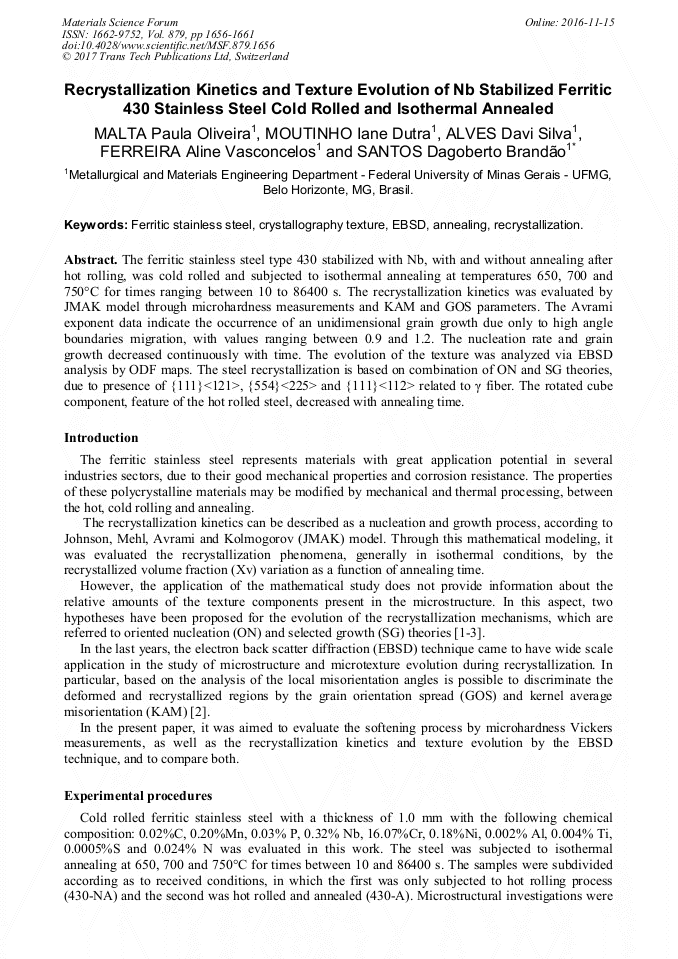

The ferritic stainless steel type 430 stabilized with Nb, with and without annealing after hot rolling, was cold rolled and subjected to isothermal annealing at temperatures 650, 700 and 750°C for times ranging between 10 to 86400 s. The recrystallization kinetics was evaluated by JMAK model through microhardness measurements and KAM and GOS parameters. The Avrami exponent data indicate the occurrence of an unidimensional grain growth due only to high angle boundaries migration, with values ranging between 0.9 and 1.2. The nucleation rate and grain growth decreased continuously with time. The evolution of the texture was analyzed via EBSD analysis by ODF maps. The steel recrystallization is based on combination of ON and SG theories, due to presence of {111}<121>, {554}<225> and {111}<112> related to γ fiber. The rotated cube component, feature of the hot rolled steel, decreased with annealing time.
