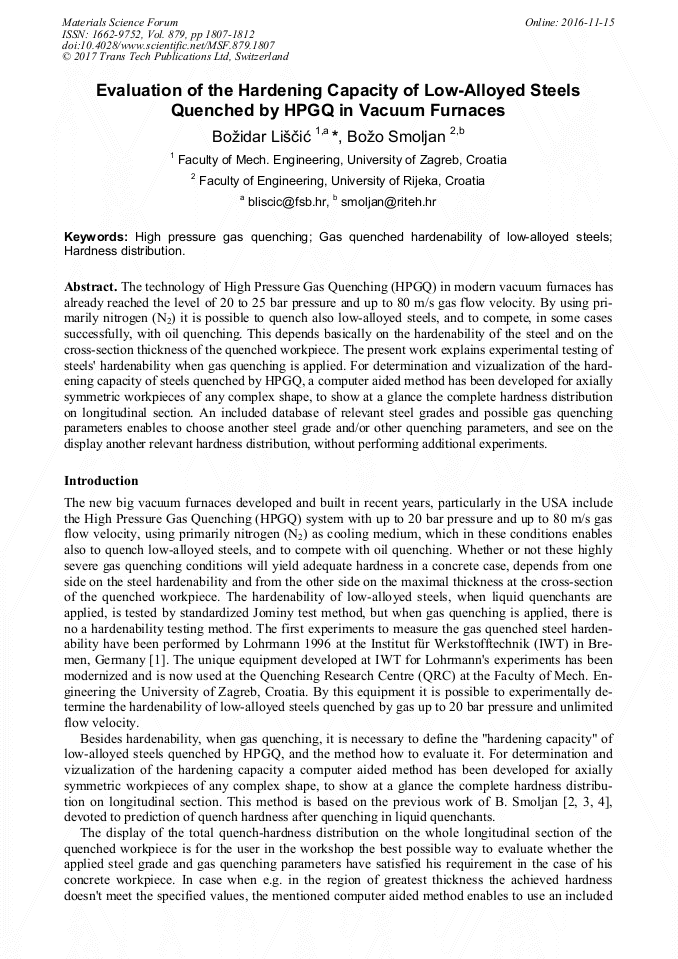

Evaluation of the Hardening Capacity of Low-Alloyed Steels Quenched by HPGQ in Vacuum Furnaces

Abstract:

The technology of High Pressure Gas Quenching (HPGQ) in modern vacuum furnaces has already reached the level of 20 to 25 bar pressure and up to 80 m/s gas flow velocity. By using primarily nitrogen (N₂) it is possible to quench also low-alloyed steels, and to compete, in some cases successfully, with oil quenching. This depends basically on the hardenability of the steel and on the cross-section thickness of the quenched workpiece. The present work explains experimental testing of steels' hardenability when gas quenching is applied. For determination and vizualization of the hardening capacity of steels quenched by HPGQ, a computer aided method has been developed for axially symmetric workpieces of any complex shape, to show at a glance the complete hardness distribution on longitudinal section. An included database of relevant steel grades and possible gas quenching parameters enables to choose another steel grade and/or other quenching parameters, and see on the display another relevant hardness distribution, without performing additional experiments.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1807-1812
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1807
• Online since: November 2016
• Authors: Božidar Liščić*, B. Smoljan
• Keywords: Gas Quenched Hardenability of Low-Alloyed Steels, Hardness Distribution, High Pressure Gas Quenching

References

[1] M. Lohrmann: Experimentelle und theoretische Untersuchungen zur Vorausbestimmung des Wärmebehandlungsergebnisses beim Hochdruckgasabschrecken, Ph.D. Thesis, Universität Bremen, Germany, (1996).

[2] B. Liščić, S. Singer, B. Smoljan: Prediction of Quench-Hardness within the Whole Volume of Axially Symmetric Workpieces of any Shape, Strojniški vestnik – Journal of Mechanical Engineering 56 (2010)2, 104-114.

DOI: 10.1520/jai102647

[3] B. Smoljan, D. Iljkić: Computer Modeling of Mechanical Properties and Microstructures of Quenched Steel Specimen, Proc. 5th Intl. Conference on Thermal Process Modeling and Computer Simulation, June 16-18, 2014, Orlando, USA.

[4] B. Smoljan, D. Iljkić, N. Tomašić: Prediction of Mechanical Properties and Microstructure Composition of Quenched and Tempered Steel, Proc. of the 28th ASM Heat Treating Society Conference, October 20-22, 2015, Detroit, Mi, USA, pp.266-273.

[5] A. Rose, F. Wever: Atlas zur Wärmebehandlung der Stähle I, 2, VDI, Verlag Stahleisen (Düsseldorf, 1954).

[6] B. Edenhofer, J.W. Bouwmann: The measurement and utilization of heat transfer coefficients in gas quench systems by means of a special heat flux-sensor, Proc. of the 21st SM&HTS Conference (on CD), November 5-8, 2001, Indianapolis, ASM Int. (2001).
