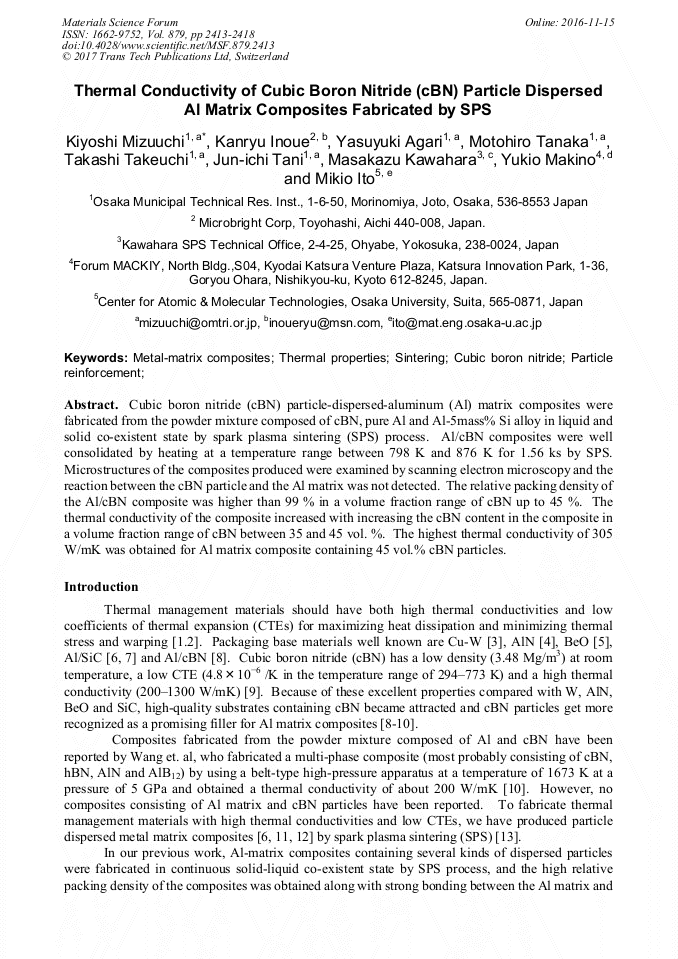

Thermal Conductivity of Cubic Boron Nitride (cBN) Particle Dispersed Al Matrix Composites Fabricated by SPS

Abstract:

Cubic boron nitride (cBN) particle-dispersed-aluminum (Al) matrix composites were fabricated from the powder mixture composed of cBN, pure Al and Al-5mass% Si alloy in liquid and solid co-existent state by spark plasma sintering (SPS) process. Al/cBN composites were well consolidated by heating at a temperature range between 798 K and 876 K for 1.56 ks by SPS. Microstructures of the composites produced were examined by scanning electron microscopy and the reaction between the cBN particle and the Al matrix was not detected. The relative packing density of the Al/cBN composite was higher than 99 % in a volume fraction range of cBN up to 45 %. The thermal conductivity of the composite increased with increasing the cBN content in the composite in a volume fraction range of cBN between 35 and 45 vol. %. The highest thermal conductivity of 305 W/mK was obtained for Al matrix composite containing 45 vol.% cBN particles.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 2413-2418
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.2413
• Online since: November 2016
• Authors: Kiyoshi Mizuuchi*, Kanryu Inoue, Yasuyuki Agari, Motohiro Tanaka, Takashi Takeuchi, Jun Ichi Tani, Masakazu Kawahara, Yukio Makino, Mikio Ito
• Keywords: Cubic Boron Nitride, Metal-Matrix Composite, Particle Reinforcement, Sintering, Thermal Properties

References

[1] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Jpn. Soc. Powder, Metall., 58 (2011) 717-26.

[2] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Jpn. Soc. Powder, Metall., 59 (2012) 714-20.

[3] T. Lorentzen, A. P. Clarke, H. F. Poulsen, S. Garbe, H. Graafsma, Compos. A, Appl. Sci. Manuf. 1997; 28: 667-4.

[4] T. Yoshioka, Y. Makino, S. Miyake, Jpn. Soc. Powder, Metall., 50(2003)916-20.

[5] D. S. Li, H. Garmestani, J. Schwartz,J. Nucl. Mater. 392(2009)22–7.

[6] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Compos. B Eng., 43(2012)2012-19.

[7] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., J. Metall. Engineering, 3(2014) 59-68.

[8] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Jpn. Soc. Powder Metall., 62 (2015) 263-70.

[9] M. Bauccio, ASM Engineered Materials Reference Book, second ed. ASM International, Materials Park, OH, 1994; pp.181-2.

[10] P. F. Wang, Z. H. Li, Y. M. Zhu, Solid State Sci., 13(2011)1041-46.

[11] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Compos. B: Eng. 42 (2011) 825-31.

[12] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito et al., Compos. B Eng., 43(2012)1557-63.

[13] M. Tokita, J. Soc. Powder Technology Jpn. 30 (1993) 790-804.

[14] K. Mizuuchi, K. Inoue, Y. Agari, Y. Makino, M. Ito, J. H. Lee et al., Mater. Sci. Forum. 638-642 (2009) 2115-20.
