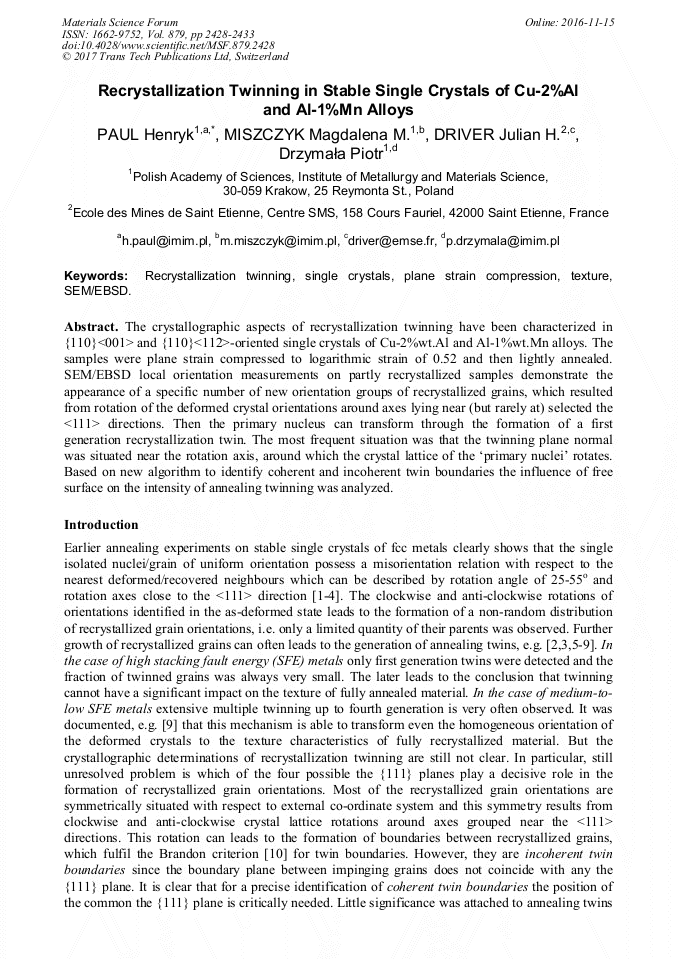

Recrystallization Twinning in Stable Single Crystals of Cu-2%Al and Al-1%Mn Alloys

Abstract:

The crystallographic aspects of recrystallization twinning have been characterized in {110}<001> and {110}<112>-oriented single crystals of Cu-2%wt.Al and Al-1%wt.Mn alloys. The samples were plane strain compressed to logarithmic strain of 0.52 and then lightly annealed. SEM/EBSD local orientation measurements on partly recrystallized samples demonstrate the appearance of a specific number of new orientation groups of recrystallized grains, which resulted from rotation of the deformed crystal orientations around axes lying near (but rarely at) selected the <111> directions. Then the primary nucleus can transform through the formation of a first generation recrystallization twin. The most frequent situation was that the twinning plane normal was situated near the rotation axis, around which the crystal lattice of the ‘primary nuclei’ rotates. Based on new algorithm to identify coherent and incoherent twin boundaries the influence of free surface on the intensity of annealing twinning was analyzed.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 2428-2433
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.2428
• Online since: November 2016
• Authors: Henryk Paul*, Magdalena M. Miszczyk, Julian H. Driver, Piotr Drzymała
• Keywords: Plane Strain Compression, Recrystallization Twinning, SEM/EBSD, Single-Crystal, Texture

References

[1] A. Godfrey, D. Juul Jensen, N. Hansen, Recrystallization of channel-die deformed single crystals of typical rolling orientations. Acta Mater. 49 (2001) 2429-2440.

DOI: 10.1016/s1359-6454(01)00148-3

[2] M. Miszczyk, H. Paul, J.H. Driver, C. Maurice, New orientation formation and growth during primary recrystallization in stable single crystals of three face-centred cubic metals, Acta Mater. 83 (2015) 120-136.

DOI: 10.1016/j.actamat.2014.09.054

[3] M.M. Miszczyk, H. Paul, J.H. Driver, TEM and SEM analyses of the orientation relations of recrystallizaed grains in a stable Al-1%Mn single crystal, Mater. Character. 112 (2016) 68-80.

DOI: 10.1016/j.matchar.2015.12.007

[4] F.J. Humphreys, The nucleation of recrystallization at second phase particles in deformed aluminium, Acta Metallurgica 25 (1977) 1323-1344.

DOI: 10.1016/0001-6160(77)90109-2

[5] H. Paul, M.M. Miszczyk, J.H. Driver, Crystallographic ascpects of nucleation and grain growth during primary recrystallization in stable single crystals of Al and Al-1%wt. Mn alloy, IOP Conf. Series: Mater. Sci. and Engn. 89 (2015) 123-137.

DOI: 10.1088/1757-899x/89/1/012010

[6] F.J. Humphreys, M. Ferry, On the role of twinning in the recrystallization of aluminum, Scripta Materialia 35 (1996) 99-105.

DOI: 10.1016/1359-6462(96)00105-4

[7] J. Li, S. Seki, K. Saimoto, K. Itoh, T. Kamijo, Annealling twins in nominally pure Al. Scripta Materialia 36 (1997) 1261-1266.

DOI: 10.1016/s1359-6462(97)00025-0

[8] A. Berger, P.J. Wilbrandt, F. Ernst, U. Klement, P. Haasen, On the generation of new orientations during recrystallization: Recent results on the recrystallization of tensile-deformed fcc single crystals, Prog. Mater. Sci. 32 (1988) 1-95.

DOI: 10.1016/0079-6425(88)90009-6

[9] S. Hoekstra, J.W.H.G. Slakhorst, J. Huber, The development of recrystallization textures in {110}<001> and {110}<112> Ag single crystals after a plane-strain deformation of 80. 9%. Acta Metall. 25 (1977) 395-406.

DOI: 10.1016/0001-6160(77)90231-0

[10] D.P. Brandon, Structure of high-angle boundaries. Acta Metall. 14 (1966) 1479-1484.
