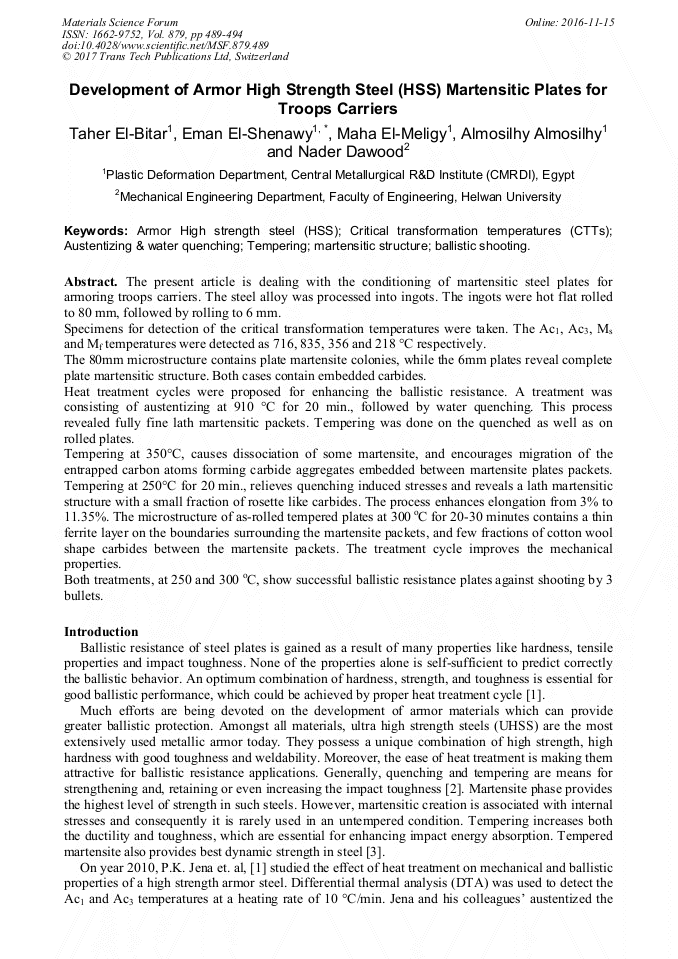

Development of Armor High Strength Steel (HSS) Martensitic Plates for Troops Carriers

Abstract:

The present article is dealing with the conditioning of martensitic steel plates for armoring troops carriers. The steel alloy was processed into ingots. The ingots were hot flat rolled to 80 mm, followed by rolling to 6 mm. Specimens for detection of the critical transformation temperatures were taken. The Ac₁, Ac₃, M_s and M_f temperatures were detected as 716, 835, 356 and 218 °C respectively. The 80mm microstructure contains plate martensite colonies, while the 6mm plates reveal complete plate martensitic structure. Both cases contain embedded carbides. Heat treatment cycles were proposed for enhancing the ballistic resistance. A treatment was consisting of austentizing at 910 °C for 20 min., followed by water quenching. This process revealed fully fine lath martensitic packets. Tempering was done on the quenched as well as on rolled plates. Tempering at 350°C, causes dissociation of some martensite, and encourages migration of the entrapped carbon atoms forming carbide aggregates embedded between martensite plates packets. Tempering at 250°C for 20 min., relieves quenching induced stresses and reveals a lath martensitic structure with a small fraction of rosette like carbides. The process enhances elongation from 3% to 11.35%. The microstructure of as-rolled tempered plates at 300 ^oC for 20-30 minutes contains a thin ferrite layer on the boundaries surrounding the martensite packets, and few fractions of cotton wool shape carbides between the martensite packets. The treatment cycle improves the mechanical properties. Both treatments, at 250 and 300 ^oC, show successful ballistic resistance plates against shooting by 3 bullets.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 489-494
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.489
• Online since: November 2016
• Authors: Taher El-Bitar, Eman El-Shenawy*, Maha El-Meligy, Almosilhy Almosilhy, Nader Dawood
• Keywords: Armor High Strength Steel (HSS), Austentizing, Ballistic Shooting, Critical Transformation Temperatures (CTTs), Martensitic Structure, Tempering, Water Quenching

References

[1] P.K. Jena, Bidyapati Mishra, M. Ramesh Babu, Arvindha Babu, A.K. Singh, K. SivaKumar, and T. Balakrishna Bhat, Effect of heat treatment on mechanical and ballistic properties of a high strength armour steel, International Journal of Impact Engineering 37 (2010).

DOI: 10.1016/j.ijimpeng.2009.09.003

[2] T. Balakrishna Bhat, Principles of armour design, Trans Indian Inst Met 1984; 57(4), 313.

[3] T. Balakrishna Bhat , Science of armour materials, Def. Sci. J. 1985; 35(2), 219–23.

[4] K. Maweja, W. Stumpf, Fracture and ballistic-induced phase transformation in tempered martensite low-carbon armour steels, Mater Sci Eng A, 2006; 432, 158.

DOI: 10.1016/j.msea.2006.06.033

[5] K. Maweja, W. Stumpf, The design of advanced performance high strength low-carbon martensitic armour steels: microstructural considerations, Mat Sci Eng A, 2008; 480, 160.

DOI: 10.1016/j.msea.2007.07.078

[6] SN. Dikshit, VV. KutumbaRao, and G. Sundararajan, The influence of plate hardness on the ballistic penetration of thick steel plates, Int. J. Impact Eng. 1995; 16, 293.

DOI: 10.1016/0734-743x(94)00041-t

[7] MR. Staker, The relation between adiabatic shear instability strain and material properties, Acta Metallurgica, 1981; 29, 683.

DOI: 10.1016/0001-6160(81)90151-6

[8] R. Ramesh, N. J. Kim, and G. Thomas, Improvement in toughness of Fe-Cr-Mn-C steel by thermal-mechanical treatments, Metall. Trans. A, vol. ‏21A, March 1990. 683.

DOI: 10.1007/bf02671939

[9] B. V. Narasimha Rao and G. Thomas, structure – property relations and the design of Fe-4Cr-C base structure steels for high strength and toughness, Metall. Trans. A, vol. 11A, March 1980, 441.

DOI: 10.1007/bf02654568

[10] J. V. Bee, P.R. Howell, and R. W. K. Honeycombe, Isothermal Transformations in Iron-Chromium-Carbon Alloys, Metallurgical Transactions A, vol. 10A, Sep. 1979, 1207.

DOI: 10.1007/bf02811975

[11] M. Sarikaya, B.G. Steinberg, and G. Thomas, Optimization of Fe/Cr/C base structure steel for improved strength and toughness, Metall. Trans. A, vol. 13A, Dec. 1982, 2227.

DOI: 10.1007/bf02648394

[12] M. Nabil, O. Taha, T. Elbitar and I. El Mahallawi, Thermomechanical processing of 42CrMoS4 steel, International Heat Treatment and Surface Engineering, 2010, Vol 4, No 2, 87.

DOI: 10.1179/174951410x12646901266726
