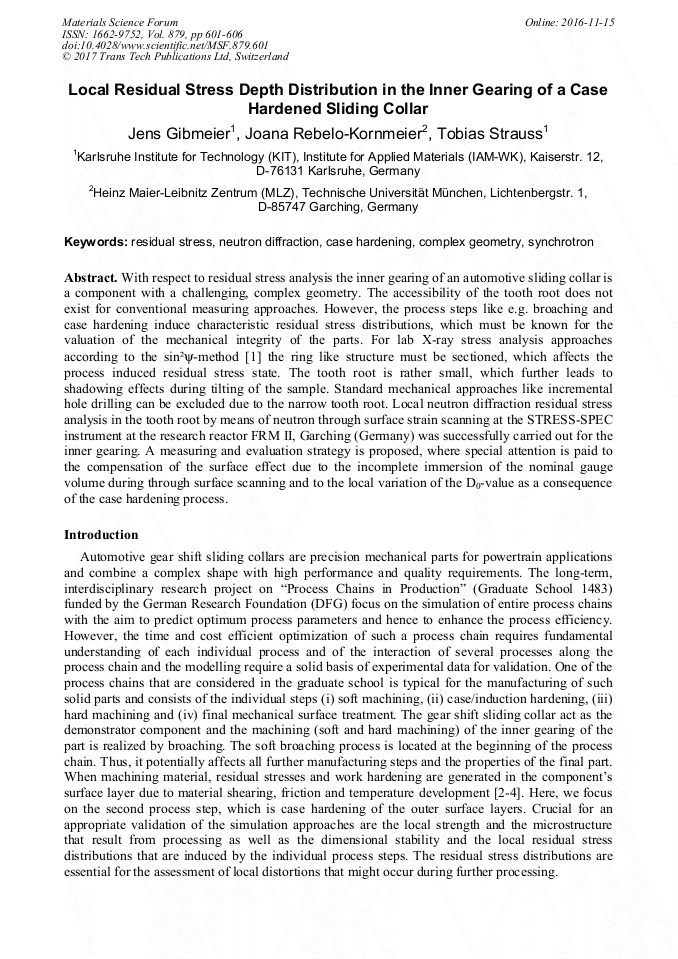

Local Residual Stress Depth Distribution in the Inner Gearing of a Case Hardened Sliding Collar

Abstract:

With respect to residual stress analysis the inner gearing of an automotive sliding collar is a component with a challenging, complex geometry. The accessibility of the tooth root does not exist for conventional measuring approaches. However, the process steps like e.g. broaching and case hardening induce characteristic residual stress distributions, which must be known for the valuation of the mechanical integrity of the parts. For lab X-ray stress analysis approaches according to the sin2ψ-method [1] the ring like structure must be sectioned, which affects the process induced residual stress state. The tooth root is rather small, which further leads to shadowing effects during tilting of the sample. Standard mechanical approaches like incremental hole drilling can be excluded due to the narrow tooth root. Local neutron diffraction residual stress analysis in the tooth root by means of neutron through surface strain scanning at the STRESS-SPEC instrument at the research reactor FRM II, Garching (Germany) was successfully carried out for the inner gearing. A measuring and evaluation strategy is proposed, where special attention is paid to the compensation of the surface effect due to the incomplete immersion of the nominal gauge volume during through surface scanning and to the local variation of the D₀-value as a consequence of the case hardening process.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 601-606
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.601
• Online since: November 2016
• Authors: Jens Gibmeier*, Joana Rebelo-Kornmeier, Tobias Strauss
• Keywords: Case Hardening, Complex Geometry, Neutron Diffraction, Residual Stress, Synchrotron

References

[1] E. Macherauch, M. Müller, Das sin2ψ-Verfahren der röntgenographischen Spannungsmessung, Z. angew. Physik, Bd. 13 (1961), p.305–312.

[2] D. Klein, M. Seifert, K. -D. Thoben: Taking the distortion of component parts along a manufacturing chain into consideration during planning, Mat. -wiss. u. Werkstofftech. 40, No. 5-6 (2009), pp.361-367.

DOI: 10.1002/mawe.200900458

[3] E. Brinksmeier; Th. Lubben; U. Fritsching; C. Cui.; R. Rentsch; J. Solter: Distortion minimization of disks for gear manufacture. International Journal of Machine Tools and Manufacture 51 (2011), pp.331-338.

DOI: 10.1016/j.ijmachtools.2010.12.005

[4] J. Epp; T. Hirsch: Residual Stress State Characterization of Machined Components by X-ray Diffraction and Multiparameter Micromagnetic Methods. Experimental Mechanics 50 (2010) 1, pp.195-204.

DOI: 10.1007/s11340-009-9231-z

[5] Webster P J, Mills G, Wang X D, Kang W P and Holden T M, Impediments to efficient through-surface strain scanning, J. Neutron Res. 3 (1995), p.223–240.

DOI: 10.1080/10238169608200197

[6] Hofmann M, Schneider R, Seidl G A, Kornmeier J, Wimpory R, Garbe U and Brokmeier H G, The new materials science diffractometer STRESS-SPEC at FRM-II, Physica B 385–368 (2006), p.1035–1037.

DOI: 10.1016/j.physb.2006.05.331

[7] J. Rebelo-Kornmeier, J. Gibmeier, M. Hofmann, Minimization of spurious strains by using a Si bent-perfect-crystal monochromator: neutron surface strain scanning of a shot-peened sample, Meas. Sci. Technol. 22 (2011) 065705.

DOI: 10.1088/0957-0233/22/6/065705

[8] J. Šaroun, J. Rebelo-Kornmeier, M. Hofmann, P. Mikula, M. Vrána, Analytical model for neutron diffraction peak shifts due to the surface effect, J. of Appl. Crystallography, Volume 46 (2013) 3, p.628–638.

DOI: 10.1107/s0021889813008194

[9] Ch. Genzel, I.A. Denks, J. Gibmeier, M. Klaus, G. Wagener, The materials science synchrotron beamline EDDI for energy-dispersive diffraction analysis, Nucl. Instr. Meth. A 578 (2007), p.23–33.

DOI: 10.1016/j.nima.2007.05.209
