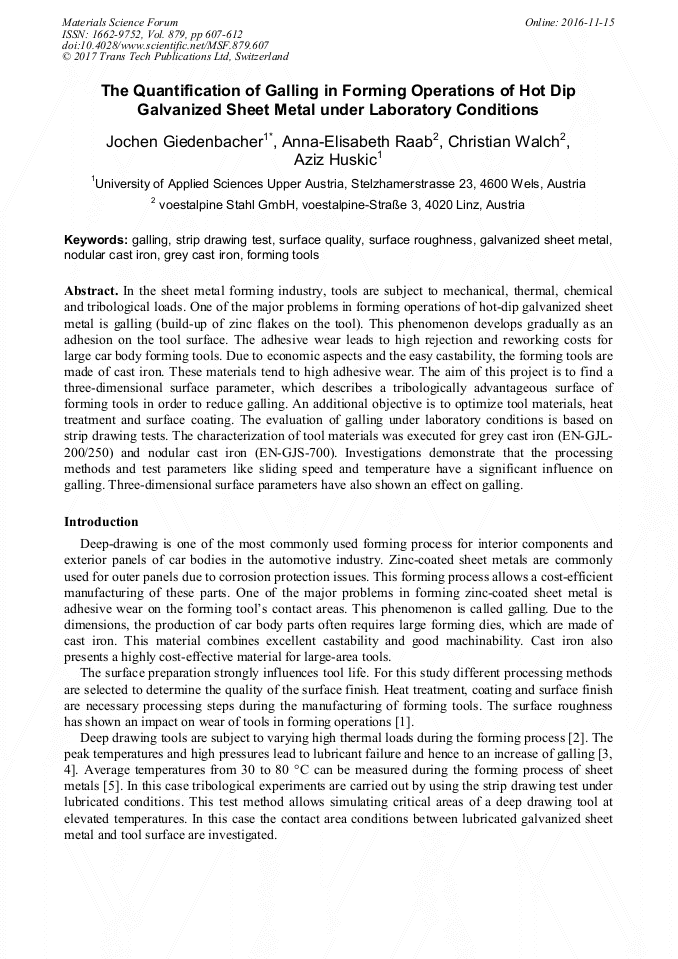

The Quantification of Galling in Forming Operations of Hot Dip Galvanized Sheet Metal under Laboratory Conditions

Abstract:

In the sheet metal forming industry, tools are subject to mechanical, thermal, chemical and tribological loads. One of the major problems in forming operations of hot-dip galvanized sheet metal is galling (build-up of zinc flakes on the tool). This phenomenon develops gradually as an adhesion on the tool surface. The adhesive wear leads to high rejection and reworking costs for large car body forming tools. Due to economic aspects and the easy castability, the forming tools are made of cast iron. These materials tend to high adhesive wear. The aim of this project is to find a three-dimensional surface parameter, which describes a tribologically advantageous surface of forming tools in order to reduce galling. An additional objective is to optimize tool materials, heat treatment and surface coating. The evaluation of galling under laboratory conditions is based on strip drawing tests. The characterization of tool materials was executed for grey cast iron (EN-GJL-200/250) and nodular cast iron (EN-GJS-700). Investigations demonstrate that the processing methods and test parameters like sliding speed and temperature have a significant influence on galling. Three-dimensional surface parameters have also shown an effect on galling.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 607-612
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.607
• Online since: November 2016
• Authors: Jochen Giedenbacher*, Anna Elisabeth Raab, Christian Walch, Aziz Huskic
• Keywords: Forming Tools, Galling, Galvanized Sheet Metal, Grey Cast Iron, Nodular Cast Iron, Strip Drawing Test, Surface Quality, Surface Roughness

References

[1] Sedlaček M.; Podgornik B.; Vizintin J.; Influence of surface preparation on roughness parameters, friction and wear, Wear 266, 2009, 482-487.

DOI: 10.1016/j.wear.2008.04.017

[2] Schneider D.: Simulationsgestützte Untersuchung der Werkzeugbelastung beim Tiefziehen höchstfester Stähle, utg Forschungsberichte, Band 44, Hieronymus, (2008).

[3] Roizard X.; Pothier J.M.; Hihn J.Y.; Monteil G.: Experimental device for tribological measurement aspects in deep drawing process, Journal of Material Processing Technology 209, 2009, pp.1220-1230.

DOI: 10.1016/j.jmatprotec.2008.03.023

[4] Kim H.; Sung J.; Goodwin F.E.; Altan T.: Investigation of galling in forming galvanized advanced high strength steels (AHSSs) using twist compression test (TCT), Journal of Material Processing Technology 205, 2008, pp.459-468.

DOI: 10.1016/j.jmatprotec.2007.11.281

[5] Filzek J.: Berichte aus der Produktion und Umformtechnik, Kombinierte Prüfmethode für das Reib-, Verschleiß- und Abriebverhalten beim Tief- und Streckziehen, Band 62, Shaker Verlag, Aachen, (2004).

[6] Berglund J.; Liljengren M.; Rosén B.G.: On finishing of pressing die surfaces using machine hammer peening, International Journal of Advanced Manufacturing Technology, 2011, 115-121.

DOI: 10.1007/s00170-010-2725-0

[7] Bleicher F.; Lechner C.; Habersohn C.; Kozeschnik E.; Adjassoho B.; Kaminski H.: Mechanism of surface modification using machine hammer peening technology, Manufacturing Technology 61, 2012, 375-378.

DOI: 10.1016/j.cirp.2012.03.139
