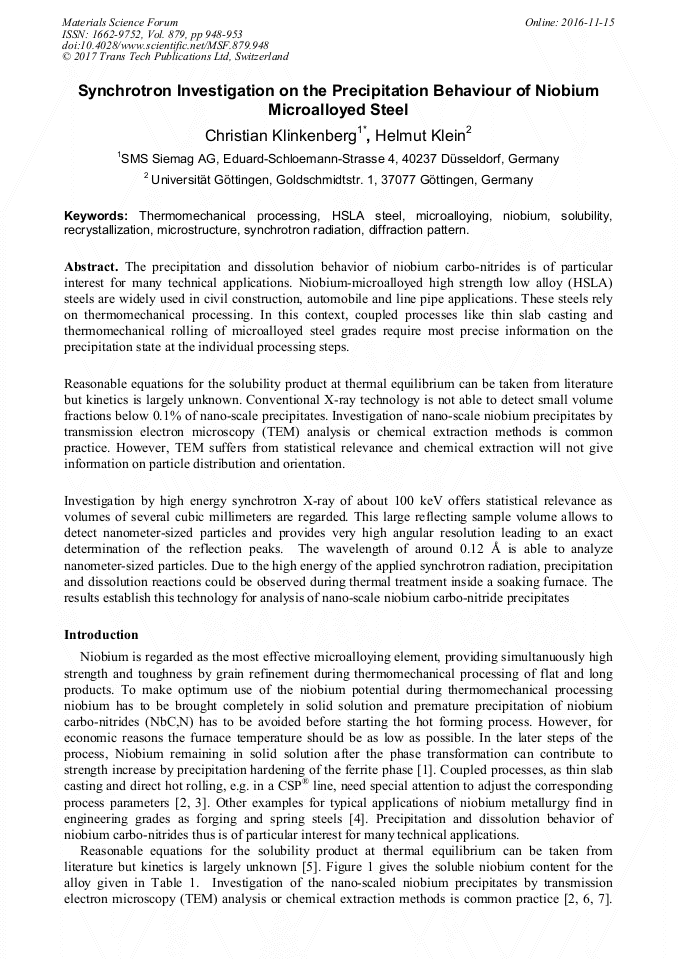

Synchrotron Investigation on the Precipitation Behaviour of Niobium Microalloyed Steel

Abstract:

The precipitation and dissolution behavior of niobium carbo-nitrides is of particular interest for many technical applications. Niobium-microalloyed high strength low alloy (HSLA) steels are widely used in civil construction, automobile and line pipe applications. These steels rely on thermomechanical processing. In this context, coupled processes like thin slab casting and thermomechanical rolling of microalloyed steel grades require most precise information on the precipitation state at the individual processing steps. Reasonable equations for the solubility product at thermal equilibrium can be taken from literature but kinetics is largely unknown. Conventional X-ray technology is not able to detect small volume fractions below 0.1% of nanoscale precipitates. Investigation of nanoscale niobium precipitates by transmission electron microscopy (TEM) analysis or chemical extraction methods is common practice. However, TEM suffers from statistical relevance and chemical extraction will not give information on particle distribution and orientation. Investigation by high energy synchrotron X-ray of about 100 keV offers statistical relevance as volumes of several cubic millimeters are regarded. This large reflecting sample volume allows to detect nanometer-sized particles and provides very high angular resolution leading to an exact determination of the reflection peaks. The wavelength of around 0.12 Å is able to analyze nanometer-sized particles. Due to the high energy of the applied synchrotron radiation, precipitation and dissolution reactions could be observed during thermal treatment inside a soaking furnace. The results establish this technology for analysis of nanoscale niobium carbo-nitride precipitates

• Periodical: Materials Science Forum (Volume 879)
• Pages: 948-953
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.948
• Online since: November 2016
• Authors: Christian Klinkenberg*, Helmut Klein
• Keywords: Diffraction Pattern, HSLA Steel, Microalloying, Microstructure, Niobium, Recrystallization, Solubility, Synchrotron Radiation, THERMOMECHANICAL PROCESSING

References

[1] C. Klinkenberg, K. Hulka, W. Bleck (2004). Steel Research int. 75, pp.744-752.

DOI: 10.1002/srin.200405837

[2] M.S. Dyer, J.G. Speer, D.K. Matlock, A.J. Shutts, S.G. Jansto, K. Xu, B.G. Thomas, Microalloy Precipitation in Hot Charged Slabs, Iron & Steel Tech., October 2010, pp.96-105.

[3] C. Klinkenberg, C. Bilgen, J.M. Rodriguez Ibabe, B. Lopez, P. Uranga, New Trends and Technologies in Thin-Slab Direct Rolling: Improved Microstructure & Mechanical Behaviour; in: Proc. THERMEC'2011, Québec-City, Canada, Mat. Sci. Forum Vols. 706-709 (2012).

DOI: 10.4028/www.scientific.net/msf.706-709.2752

[4] C. Klinkenberg, S. Trute, W. Bleck, Niobium in Engineering Steels for Automotive Applications, steel research int. 77 (2006) No. 9-10, pp.698-703.

DOI: 10.1002/srin.200606450

[5] J. Kunze, Nitrogen and Carbon in Iron and Steel Thermodynamics, Akademie-Verlag Berlin, Berlin, (1990).

[6] M. Beres, T. E. Weirich, K. Hulka and J. Mayer (2004). Steel Research int. 75, pp.753-758.

[7] B. Soenen, S. Jacobs, C. Klinkenberg, Development of precipitation modeling tools for transfer of processing conditions to a CSP line, in: Proc. Materials Solutions Conference 7-9 October 2002, ASM International, 2002, pp.16-24.

[8] H. Klein, Principles of Highly Resolved Determination of Texture and Microstructure using High-Energy Synchrotron Radiation, Adv. Eng. Mat. 11, 6, 2009, pp.452-458.

DOI: 10.1002/adem.200800368

[9] I. Janßen, H. Klein, C. Klinkenberg, Determination of Niobium precipitations in micro alloyed steels, Zeitschrift für Kristallographie Supplement No. 33, 21th Annual Meeting of the German Crystallographic Society, 19-21 March 2013, Freiberg, p.111.
