Effect of Multi Walled Carbon Nanotubes Incorporated on Refractory Castables

Abstract:

Two different types of multi walled carbon nanotubes (MWCNT) were introduced in a calcium aluminate refractory castable used in steelmaking process. The first MWCNT was purchased from Cheap Tubes (USA), a hydroxyl (-OH) functionalized, outer diameter of 50-80 nm, length of 10-20 μm, and, the second one was supplied by Nanocyl (Belgium), not functionalized, outer diameter of 9.5 nm, and length of 1.5 μm. Both types of MWCNT were incorporated into the dry castable mixture before water addition. The workability and properties of the final product, such as apparent density, apparent porosity and hot modulus of rupture were evaluated. The nanocarbons were characterized by SEM, TEM, TGA and Raman spectroscopy. In both cases, the incorporation of MWCNT had a negative effect on the rheology of wet castables, decreasing their workability. No significant improvements on mechanical properties of the castables were observed with the incorporation until MWCNT concentration reached 0.15 % (m/m), except for the increase of hot modulus of rupture observed for Cheap Tubes MWCNT introduction.

You might also be interested in these eBooks

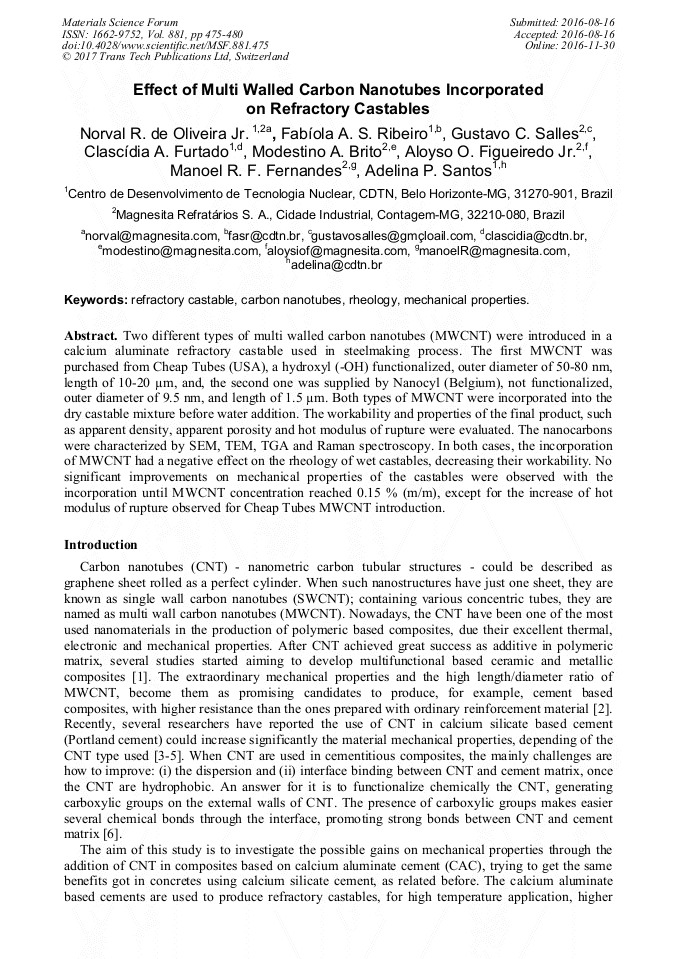

View Preview

Info:

Periodical:

Materials Science Forum (Volume 881)

Pages:

475-480

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.881.475

Citation:

Cite this paper

Online since:

November 2016

Authors:

Norval Rodrigues de Oliveira Jr., Fabíola A.S. Ribeiro, Gustavo C. Salles, Clascídia A. Furtado, Modestino A. Brito, Aloyso O. Figueiredo Jr., Manoel R.F. Fernandes, Adelina P. Santos

Keywords:

Carbon Nanotubes, Mechanical Properties, Refractory Castable, Rheology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Parveen, S. Rana, R. Fangueiro: Journal of Nanomaterials Vol. 2013 (2013), p.1.

Google Scholar

[2] M.S. Konsta-Gdoutos, Z.S. Metaxa, S.P. Shah: Cement & Concrete Composites Vol. 32 (2010), p.110.

Google Scholar

[3] S.J. Chen, F.G. Collins, A.J.N. Macleod, Z. Pan, W.H. Duan, C.M. Wang: Journal Part A Vol. 4 (2011), p.254.

Google Scholar

[4] F. Pacheco-Torgal, S. Jalali: Construction and Building Materials Vol. 25 (2011), p.582.

Google Scholar

[5] B. Wang, Y. Han, B. Pan, T. Zhang: Journal of Wuhan University of Tecnhology-Mater. Sci. Ed. Vol. 28 (2013), p.82.

Google Scholar

[6] P. Ludvig, J.M. Calixto, L.O. Ladeira, I.C.P. Gaspar: Materials Vol. 4 (2011), p.575.

Google Scholar

[7] L. Geng Ying, P.M. Wang, X. Zhao: Carbon. Vol. 43 (2005), p.1239.

Google Scholar

[8] T. Kowald, R. Trettin, Improvement of Cementitious Binders by Multiwall Nanotubes. In: Zdenêk. B. et al. (Eds. ), Proceedings of the 3rd International Symposium on Nanotechnology and Construction (NICOM2009), Prague, Czech Republic, Berlin, Heidelberg. (2009).

DOI: 10.1007/978-3-642-00980-8_34

Google Scholar
