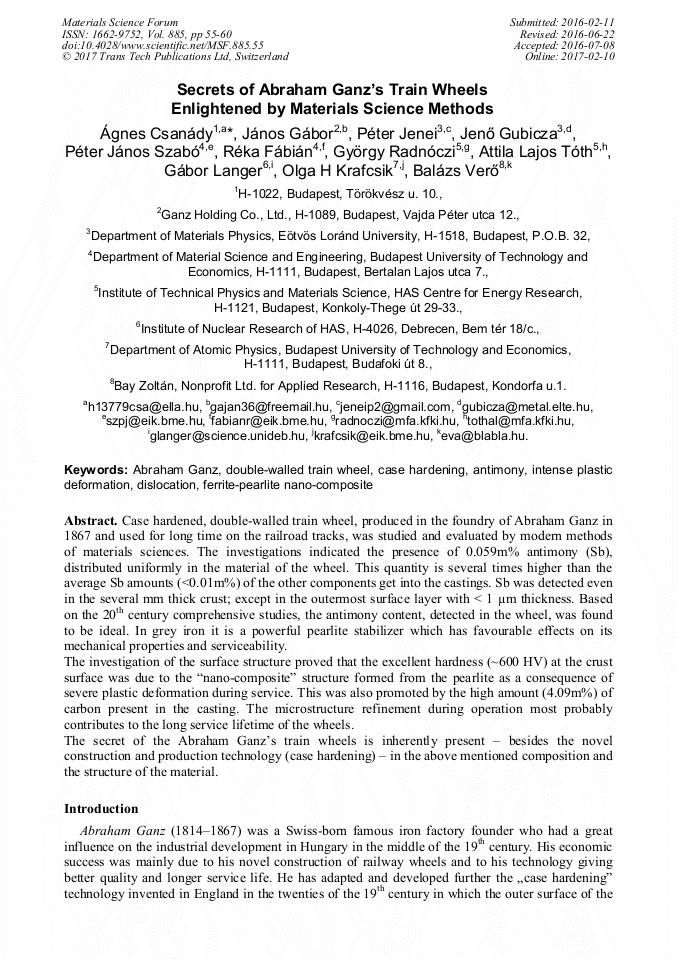

Secrets of Abraham Ganz’s Train Wheels Enlightened by Materials Science Methods

Abstract:

Case hardened, double-walled train wheel, produced in the foundry of Abraham Ganz in 1867 and used for long time on the railroad tracks, was studied and evaluated by modern methods of materials sciences. The investigations indicated the presence of 0.059m% antimony (Sb), distributed uniformly in the material of the wheel. This quantity is several times higher than the average Sb amounts (<0.01m%) of the other components get into the castings. Sb was detected even in the several mm thick crust; except in the outermost surface layer with < 1 µm thickness. Based on the 20th century comprehensive studies, the antimony content, detected in the wheel, was found to be ideal. In grey iron it is a powerful pearlite stabilizer which has favourable effects on its mechanical properties and serviceability.The investigation of the surface structure proved that the excellent hardness (~600 HV) at the crust surface was due to the “nano-composite” structure formed from the pearlite as a consequence of severe plastic deformation during service. This was also promoted by the high amount (4.09m%) of carbon present in the casting. The microstructure refinement during operation most probably contributes to the long service lifetime of the wheels.The secret of the Abraham Ganz’s train wheels is inherently present – besides the novel construction and production technology (case hardening) – in the above mentioned composition and the structure of the material.

• Periodical: Materials Science Forum (Volume 885)
• Pages: 55-60
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.885.55
• Online since: February 2017
• Authors: Ágnes Csanády*, János Gábor, Péter Jenei, Jenő Gubicza, Péter János Szabó, Enikő Réka Fábián, György Radnóczi, Attila Lajos Tóth, Gábor Langer, Olga H. Krafcsik, Balázs Verő
• Keywords: Abraham Ganz, Antimony, Case Hardening, Dislocation, Double-Walled Train Wheel, Ferrite-Pearlite Nano-Composite, Intense Plastic Deformation

References

[1] N. Wood, A Practical Treatise on Railroads, and Interior Communications in General, 1st edition, London, printed for Longman, 1828, Chapter I and Chapter III, p.79–82.

[2] L. Kovács, Patents of Ábrahám Ganz (in German and in Hungarian), 2007, HU ISSN 1417, 1058 Budapest, 2007, Öntödei Múzeumi Füzetek 18 and Budapest City Archives.

[3] C. F. A. Hartmann, Lehrbuch der Eisenhüttenkunde, 2. Band, 1834, Schalenguss des Eisens, Berlin, bei August Rücker, S. 51.

[4] L., Über Schalengussrӓder für Eisenbahnfahrzeuge, In: Zeitschrift des Vereins Deutscher Ingenieure, 6. Jg. (1862) Dezember, 612-614.

[5] F. Henke, Spurenelemente im Gusseisen, Gießerei Praxis, 1971. Apr. 25. 139–1498.

[6] G.S. Narasimha Swamy, J.F. Wallace, Factors Influencing the Ferritic Layer on the Surface of Grey Iron Castings, AFS Transactions 83 (1975) 531–550.

[7] R.H. Aborn, What Antimony May Do for You in Grey and Ductile Iron? Transactions of the Amer. Foundry Soc. 84 (1976) 503–506.

[8] L. Bánhegyi, Ganz Ábrahám, In: Our Prominent Persons in Technical Sciences (in Hungarian) Vol. II. (1st edition 1967). Edited by B. Szőke, Gépipari Tudományos Egyesület, 43–89.

[9] J. Verő, M. Káldor, Metallurgy (in Hungarian), Tankönyvkiadó, Budapest, 1977, 143–155.

[10] X. Sauvage, W. Lefebvre, C. Genevois, S. Ohsaki, K. Hono, Complementary use of TEM and APT for the investigation of steels nanostructured by severe plastic deformation, Scripta Mater. 60 (2009) 1056–1061.

DOI: 10.1016/j.scriptamat.2009.02.019

[11] J. Takahashi, Y. Kobayashi, M. Ueda, T. Miyazaki, K. Kawakami, Nanoscale characterisation of rolling contact wear surface of pearlitic steel, Mater. Sci. Techn. 29 (2013) 1212–1218.

DOI: 10.1179/1743284713y.0000000256

[12] Y.J. Li, P. Choi, C. Borchers, S. Westerkamp, S. Goto, D. Raabe, R. Kirchheim, Atomic-scale mechanisms of deformation-induced cementite decomposition in pearlite, Acta Mater. 59 (2011 ) 3965–3977.

DOI: 10.1016/j.actamat.2011.03.022

[13] M. Ueda, K. Uchino, A. Kobayashi, Effects of carbon content on wear property in pearlitic Wear 253 (2002) 107–113.

DOI: 10.1016/s0043-1648(02)00089-3
