The Effect of Different Silica Compositions to the Properties of Silica Foam Fabricated Using Slurry Method

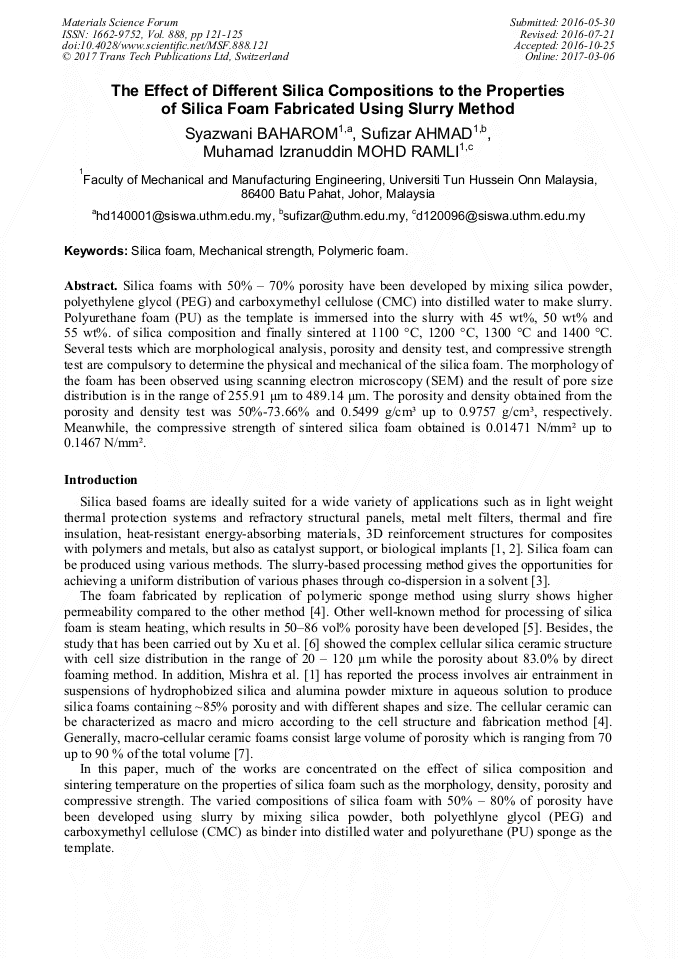

Article Preview

Abstract:

Silica foams with 50% – 70% porosity have been developed by mixing silica powder, polyethylene glycol (PEG) and carboxymethyl cellulose (CMC) into distilled water to make slurry. Polyurethane foam (PU) as the template is immersed into the slurry with 45 wt.%, 50 wt.% and 55 wt.%. of silica composition and finally sintered at 1100°C, 1200°C, 1300°C and 1400°C. Several tests which are morphological analysis, porosity and density test, and compressive strength test are compulsory to determine the physical and mechanical of the silica foam. The morphology of the foam has been observed using Scanning Electron Microscopy (SEM) and the result of pore size distribution is in the range of 255.91 μm to 489.14 μm. The porosity and density obtained from the porosity and density test was 50%-73.66% and 0.5499 g/cm³ up to 0.9757 g/cm³, respectively. Meanwhile, the compressive strength of sintered silica foam obtained is 0.01471 N/mm² up to 0.1467 N/mm².

You might also be interested in these eBooks

Current Material Research Using X-Rays and Related Techniques II

Info:

Periodical:

Materials Science Forum (Volume 888)

Pages:

121-125

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.888.121

Citation:

Cite this paper

Online since:

March 2017

Authors:

Syazwani Baharom*, Sufizar Ahmad, Muhamad Izranuddin Mohd Ramli

Keywords:

Mechanical Strength, Polymeric Foam, Silica Foam

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] S. Mishra, R. Mitra, M. Vijayakumar, Processing and microstructure of particle stabilized silica foams, Mat. Let. 63 (2009) 2649-2659.

DOI: 10.1016/j.matlet.2009.09.025

[2] Strachota, M. Cerny, Z. Chlup, K. Rodzen, K. Depa, M. Halasova, M. Slouf, J. Schweigstillova, Preparation of finely macroporous SiOC foams with high mechanical properties and with hierarchical porosity via pyrolysis of a siloxane/epoxide composite, J. Cer. Int. 41 (2015).

DOI: 10.1016/j.ceramint.2015.03.037

[3] S. Mishra, R. Mitra, M. Vijayakumar, Structure and properties of short fibre reinforced silica matrix composite foams, Cer. Int. 35 (2009) 3111-3116.

DOI: 10.1016/j.ceramint.2009.04.027

[4] S. Ahmad, M.A. Latif, H. Taib and A.F. Ismail, Short review: ceramic foam fabrication techniques for wastewater treatment application, Adv. Mat. Res. 795 (2013) 5-8.

DOI: 10.4028/www.scientific.net/amr.795.5

[5] J. Verma, R. Mitra, M. Vijayakumar, Processing of silica foam using steam heating and its characterization, J. Eur. Cer. Soc. 33 (2013) 943-951.

DOI: 10.1016/j.jeurceramsoc.2012.11.010

[6] Xu, S. Wang, K. Flodstrom, X. Mao, J. Guo, Cellular silica-based ceramics prepared by direct foaming at high temperature, Cer. Int. 36 (2010), 923-327.

DOI: 10.1016/j.ceramint.2009.10.023

[7] P. Colombo, Conventional and novel processing methods for cellular ceramics, Eng. Sci. 364 (1838) (2006) 109-124.

[8] R.M. Novais, M.P. Seabra, L. Hernando, J.A. Labrincha, Novel porous fly ash-containing geopolymer monoliths for lead adsorption from wastewaters, Ceram. Int. 40 (2014), 11637-11648.

DOI: 10.1016/j.jhazmat.2016.07.059

[9] T. Ohji, M. Fukushima, Macro-porous ceramics: processing and properties, Int. Mat. Rev. 57 (2013) 115-131.

[10] S. Ahmad, N. Muhamad, A. Muchtar, J. Sahari, K.R. Jamaludin, M.H.I. Ibrahim, N.H.M. Nor, Characterization of Titanium foams sintered at different temperatures prepared by the slurry method, Sains Malaysiana. 39 (2010) 77-82.

DOI: 10.4028/www.scientific.net/kem.447-448.671

[11] H.A. Rahman, D.H. Yacob, Effect of thermal treatment on properties and microstructure of porous alumina, Sol. State. Sci. and Tech. 18 (2010) 155-163.

[12] K. Zhang. Liquid Permeability of Ceramic Foam Filters. Ph. D Thesis. Norwegian University of Science and Technology, (2012).

[13] G.I. Garrido, F.C. Patcas, S. Lang and B.K. Czarnetzki, Supercritical deposition of Pt on SnO2-coated Al2O3 foams: Phase behavior and catalytic performance, Chem. Eng. Sci. 63 (2008) 5202–5217.

DOI: 10.1016/j.apcata.2007.12.019

[14] M.A.A.M. Nor, L.C. Hong, Z.A. Ahmad, H.M. Akil, J. The effect of polymeric template density and solid loading on the properties of ceramic foam, Mat. Pro. Tech. 207 (2008) 235-239.

[15] J.P. Li, S.H. Li, K.D. Groot, P. Layrolle, Improvement of porous titanium with thicker struts, Key. Eng. Mat. 218-220 (2002) 51-54.

DOI: 10.4028/www.scientific.net/kem.240-242.547
