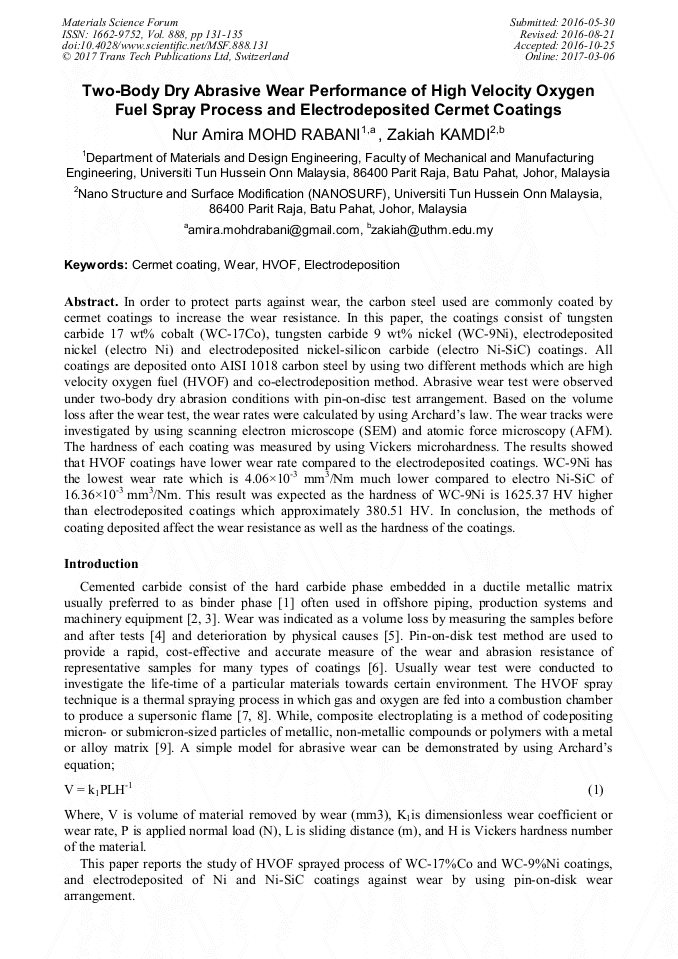

Two-Body Dry Abrasive Wear Performance of High Velocity Oxygen Fuel Spray Process and Electrodeposited Cermet Coatings

Abstract:

In order to protect parts against wear, the carbon steel used are commonly coated by cermet coatings to increase the wear resistance. In this paper, the coatings consist of tungsten carbide 17wt% cobalt (WC-17Co), tungsten carbide 9wt% nickel (WC-9Ni), electrodeposited nickel (electro Ni) and electrodeposited nickel-silicon carbide (electro Ni-SiC) coatings. All coatings are deposited onto AISI 1018 carbon steel by using two different methods which are high velocity oxygen fuel (HVOF) and co-electrodeposition method. Abrasive wear test were observed under two‑body dry abrasion conditions with pin-on-disc test arrangement. Based on the volume loss after the wear test, the wear rates were calculated by using Archard’s law. The wear tracks of the coatings were investigated by using scanning electron microscope (SEM) and atomic force microscopy (AFM). The hardness of each coating was measured by using Vickers microhardness. The results showed that HVOF coatings have lower wear rate compared to the electrodeposited coatings. WC-9Ni has the lowest wear rate which is 4.06×10^-3 mm³/Nm much lower compared to electro Ni-SiC of 16.36×10^-3 mm³/Nm. This result was expected as the hardness of WC-9Ni is 1625.37 HV higher than electrodeposited coatings which approximately 380.51 HV. In conclusion, the methods of coating deposited affect the wear resistance as well as the hardness of the coatings.

• Periodical: Materials Science Forum (Volume 888)
• Pages: 131-135
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.888.131
• Online since: March 2017
• Authors: Nur Amira Mohd Rabani*, Kamdi Zakiah
• Keywords: Cermet Coating, Electrodeposited, HVOF, Wear

References

[1] W. Su, Y. Sun, J. Liu, J. Feng, J. Ruan, Effects of Ni on the microstructures and properties of WC–6Co cemented carbides fabricated by WC–6(Co, Ni) composite powders, J. Cer. Int. 41(2) (2015) 3169-3177.

DOI: 10.1016/j.ceramint.2014.10.165

[2] M.M. El Rayes, H.S. Abdo, K.A. Khalil, Erosion-corrosion of cermet coating, Int. J. Electrochem. Sci. 8 (2013) 1117-1137.

DOI: 10.1016/s1452-3981(23)14085-5

[3] D. Toma, W. Brandl, G. Marginean, Wear and corrosion behaviour of thermally sprayed cermet coatings, Surf. and Coat. Tech. 138(2) (2001) 149-158.

DOI: 10.1016/s0257-8972(00)01141-5

[4] M. Petrica, C. Katsich, E. Badisch, F. Kremsner, Study of abrasive wear phenomena in dry and slurry 3-body conditions, Tribo. Int. 64 (2013) 196-203.

DOI: 10.1016/j.triboint.2013.03.028

[5] I.T. Gezawa, G. Gangha, N. Rajamane, N.G. Ramasamy, Experimental study on corrosion of steel in soil medium, Int. J. of Research Eng. and Tech. 4(3) (2015) 402-407.

[6] J.M. Fildes, S.J. Meyers, C.P. Mulligan, R. Kilaparti, Evaluation of the wear and abrasion resistance of hard coatings by ball-on-three-disk test methods—A case study, Wear. 302 (1-2) (2013) 1040-1049.

DOI: 10.1016/j.wear.2012.11.018

[7] P.K. Aw, A.L.K. Tan, T.P. Tan, J. Qiu, Corrosion resistance of tungsten carbide based cermet coatings deposited by high velocity oxy-fuel spray process, Thin. Sol. Films. 516(16) (2008) 5710-5715.

DOI: 10.1016/j.tsf.2007.07.065

[8] A. Lekatou, D. Zois, D. Grimanelis, Corrosion properties of HVOF cermet coatings with bond coats in an aqueous chloride environment, Thin Sol. Films. 516 (16) (2008) 5700-5705.

DOI: 10.1016/j.tsf.2007.07.130

[9] M. Stroumbouli, P. Gyftou, E.A. Pavlatou, N. Spyrellis, Codeposition of ultrafine WC particles in Ni matrix composite electrocoatings, Surf. and Coat. Tech. 195(2-3) (2005) 325-332.

DOI: 10.1016/j.surfcoat.2004.06.034

[10] M.A. Juneghani, M. Farzam, H. Zohdirad, Wear and corrosion resistance and electroplating characteristics of electrodeposited Cr–SiC nano-composite coatings, Trans. of Nonferrous Met. Soc. of China. 23(7) (2013) 1993-(2001).

DOI: 10.1016/s1003-6326(13)62688-6

[11] M.A. Farrokhzad, G.C. Saha, T.I. Khan, Three-body wear performance of co-electrodeposited cermet coatings, Wear. 313(1-2) (2014) 34-42.

DOI: 10.1016/j.wear.2014.02.013

[12] L. Espinosa, V. Bonache, M.D. Salvador, Friction and wear behaviour of WC–Co–Cr3C2–VC cemented carbides obtained from nanocrystalline mixtures, Wear. 272(1) (2011) 62-68.

DOI: 10.1016/j.wear.2011.07.012

[13] E. Haruman, K. Widhi, A.G.E. Sutjipto, S. Mridha, Y. Sun, Structural and wear and characteristic of low temperature nitrided stainless steel, J. Tech. 3 (2006) 209-214.

[14] P. Narasimman, M. Pushpavanam, V.M. Periasamy, Wear and scratch resistance characteristics of electrodeposited nickel-nano and micro SiC composites, Wear. 292-293 (2012) 197-206.

DOI: 10.1016/j.wear.2012.05.009

[15] L. Thakur, N. Arora, A comparative study on slurry and dry erosion behaviour of HVOF sprayed WC–CoCr coatings, Wear. 303(1-2) (2013) 405-411.

DOI: 10.1016/j.wear.2013.03.028

[16] V.A.D. Souza, A. Neville, Corrosion and synergy in a WCCoCr HVOF thermal spray coating understanding their role in erosion–corrosion degradation, Wear. 259(1-6) (2005) 171-180.

DOI: 10.1016/j.wear.2004.12.003

[17] S.K. Asl, M.H. Sohi, K. Hokamoto, M. Uemura, Effect of heat treatment on wear behavior of HVOF thermally sprayed WC-Co coatings, Wear. 260(11-12) (2006) 1203-1208.

DOI: 10.1016/j.wear.2005.07.013
