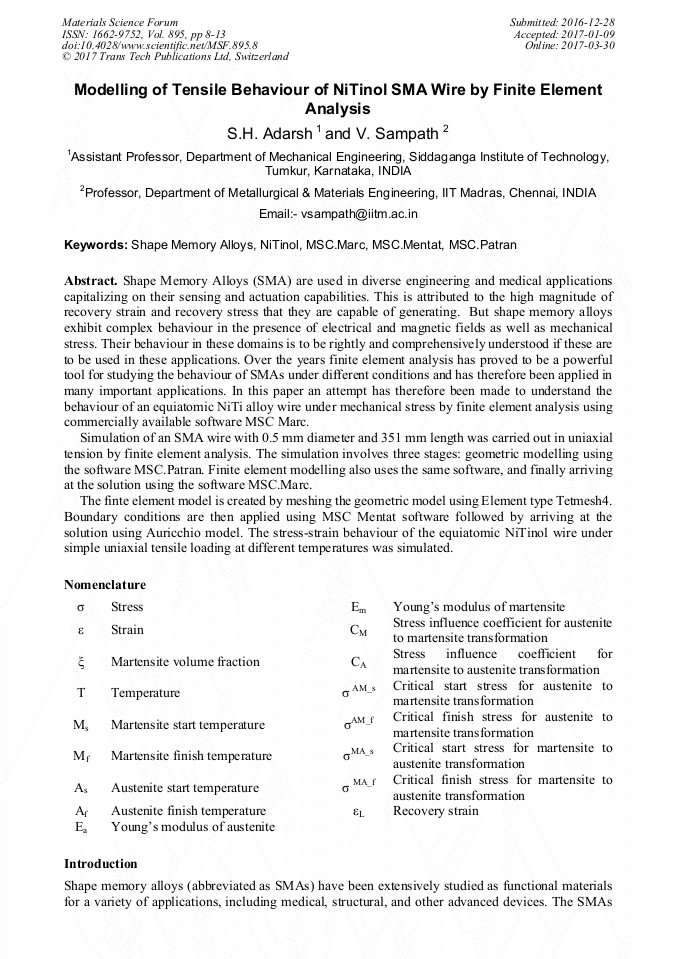

Modelling of Tensile Behaviour of NiTinol SMA Wire by Finite Element Analysis

Abstract:

Shape Memory Alloys (SMA) are used in diverse engineering and medical applications capitalizing on their sensing and actuation capabilities. This is attributed to the high magnitude of recovery strain and recovery stress that they are capable of generating. But shape memory alloys exhibit complex behaviour in the presence of electrical and magnetic fields as well as mechanical stress. Their behaviour in these domains is to be rightly and comprehensively understood if these are to be used in these applications. Over the years finite element analysis has proved to be a powerful tool for studying the behaviour of SMAs under different conditions and has therefore been applied in many important applications. In this paper an attempt has therefore been made to understand the behaviour of an equiatomic NiTi alloy wire under mechanical stress by finite element analysis using commercially available software MSC Marc.Simulation of an SMA wire with 0.5 mm diameter and 351 mm length was carried out in uniaxial tension by finite element analysis. The simulation involves three stages: geometric modelling using the software MSC.Patran. Finite element modelling also uses the same software, and finally arriving at the solution using the software MSC.Marc.The finte element model is created by meshing the geometric model using Element type Tetmesh4. Boundary conditions are then applied using MSC Mentat software followed by arriving at the solution using Auricchio model. The stress-strain behaviour of the equiatomic NiTinol wire under simple uniaxial tensile loading at different temperatures was simulated.

• Periodical: Materials Science Forum (Volume 895)
• Pages: 8-13
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.895.8
• Online since: March 2017
• Authors: S.H. Adarsh, Vedamanickam Sampath*
• Keywords: MSC.marc, MSC.Mentat, MSC.Patran, Nitinol, Shape Memory Alloys

References

[1] F. Auricchio, A robust integration-algorithm for a finite-strain shape-memory-alloy superelastic Model, Int. J. Plast., vol. 17, No. 7, p.971–990, 2001. http: /dx. doi. org/10. 1016/S0749-6419(00)00050-4.

DOI: 10.1016/s0749-6419(00)00050-4

[2] T. J. Lim and D. L. McDowell, Cyclic thermo mechanical behavior of a polycrystalline pseudoelastic shape memory alloy, J. Mech. Phys. Solids, vol. 50, Issue 3, p.651–676, (2002).

DOI: 10.1016/s0022-5096(01)00088-6

[3] W. Dettmer and S. Reese, On the theoretical and numerical modelling of Armstrong frederick kinematic hardening in the finite strain regime, Comput. Methods in Appl. Mech. Eng., vol. 193, p.87.

DOI: 10.1016/j.cma.2003.09.005

[4] F. Auricchio and L. Petrini, A three-dimensional model describing stress-temperature induced solid Phase transformations: solution algorithm and boundary value problems, Int. J. Numer. Meth. Eng., vol. 61, p.807.

DOI: 10.1002/nme.1086

[5] H. Pan, P. Thamburaja, and F. S. Chau, Multi-axial behavior of shape-memory Alloy undergoing martensitic reorientation and detwinning, Int. J. Plast., vol. 23, Issue 4, p.711–732, 2007. http: /dx. doi. org/10. 1016/j. ijplas. 2006. 08. 002.

DOI: 10.1016/j.ijplas.2006.08.002

[6] S. Reese and D. Christ, Finite Deformation Pseudo-Elasticity of Shape Memory Alloys – Constitutive Modelling Finite Element Implementation, Int. J. Plast., vol. 24, Issue 3, p.455–482, 2008. http: /dx. doi. org/10. 1016/j. ijplas. 2007. 05. 005.

DOI: 10.1016/j.ijplas.2007.05.005

[7] X. Gong and A. R. Pelton, ABAQUS Analysis on NiTinol Medical Applications", Proceedings of ABAQUS Users, Conference, New Port, Rhode Island, pp.1-10, (2002).

[8] N. Rebelo and M Perry, Finite element analysis for the design of Nitinol Medical Devices, J. Soc. Min. Invasive Ther. 9(2), p.75, (2000).

[9] N. Rebelo, M. Hsu and Foadian, H, Simulation of superelastic alloys behavior with ABAQUS, in SMST-2000, Pacific Grove, California, USA, p.495, (2000).

[10] E. Patoor, Y. Gillett, E. Segard and M. Berveiller, Optimisation of superelastic elements, in SMST-1997, Pacific Grove, California, USA, p.35, (1997).

[11] F. Trochu and P. Terriault, Finite element stress analysis of a shape memory medical stent, in SMST-1997, Pacific Grove, California, USA, p.595, (1997).
