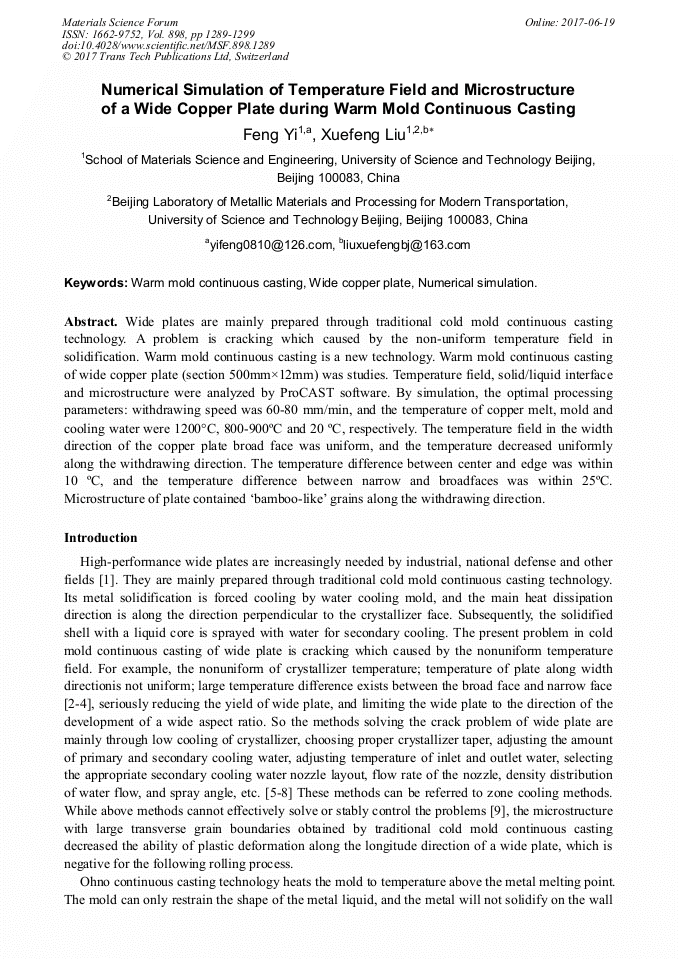

Numerical Simulation of Temperature Field and Microstructure of a Wide Copper Plate during Warm Mold Continuous Casting

Abstract:

Wide plates are mainly prepared through traditional cold mold continuous casting technology. A problem is cracking which caused by the non-uniform temperature field in solidification. Warm mold continuous casting is a new technology. Warm mold continuous casting of wide copper plate (section 500mm×12mm) was studies. Temperature field, solid/liquid interface and microstructure were analyzed by ProCAST software. By simulation, the optimal processing parameters: withdrawing speed was 60-80 mm/min, and the temperature of copper melt, mold and cooling water were 1200°C, 800-900oC and 20 oC, respectively. The temperature field in the width direction of the copper plate broad face was uniform, and the temperature decreased uniformly along the withdrawing direction. The temperature difference between center and edge was within 10 oC, and the temperature difference between narrow and broadfaces was within 25oC. Microstructure of plate contained ‘bamboo-like’ grains along the withdrawing direction.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1289-1299
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1289
• Online since: June 2017
• Authors: Feng Yi, Xue Feng Liu*
• Keywords: Numerical Simulation, Warm Mold Continuous Casting, Wide Copper Plate

References

[1] J. Yang, Current Status and Future Prospect for Continuous Casting of Near Net Shape, Mater. Rev. 16(2002) 9-66.

[2] J.K. Brimacombe, F. Weinberg, E.B. Hawbolt, Formation of Longitudinal, Midface Cracks in Continuously-Cast Slabs, Metall. Mater. Trans. B 10(1979) 279-292.

DOI: 10.1007/bf02652472

[3] H.E. Dong-Feng, S. Chang, H.B. Wang, Controlling Transverse Cracks of Slab Based on Edge Control Technology, J. Iron Steel Res Int. 22(2015) 42-47.

DOI: 10.1016/s1006-706x(15)30136-9

[4] K.M. Banks, A. Tuling, B. Mintz, Influence of Thermal History on Hot Ductility of Steel and Its Relationship to the Problem of Cracking in Continuous Casting, Mater. Sci. Technol. 28(2012) 536-542.

DOI: 10.1179/1743284711y.0000000094

[5] R. Yin, On Development of Technology and Equipment of Thin Slab Casting-rolling, Iron Steel 39(2004) 1-5.

[6] S.Z. Wang, X.Z. Wang, S.G. Song, H.Q. Liu, X.J. Gao, Exploratory Analysis of Surface Longitudinal Cracks on Wide Slab, Iron Steel 45(2010) 44-48.

[7] Z. Dou, Q. Liu, B. Wang, X. Zhang, J. Zhang, Z. Hu, Evolution of Control Models for Secondary Cooling in Continuous Casting Process of Steel, Steel Res. Int. 82(2011) 1220-1227.

DOI: 10.1002/srin.201100003

[8] G. Wen, P. Tang, Z. Han, F. Mei, X. Ruan, L. Zhang, H. Li, Influence of Nozzle Arrangement in Secondary Cooling Zone on Slab Quality Cast on 1930 Slab Caster at Bao-steel, Iron Steel 38(2003) 22-24.

[9] C. Cheng, W. Wan, F. Che, L. Yu, Z. Liu, Experimental Study on Nozzles Cooling Characteristics in the Secondary Cooling Zone of Wide Slab Caster, J. Wuhan Univ. Sci. Technol. 18(2010) 600-601.

[10] A. Ohno, Continuous Casting of Single Crystal Ingots by the O.C.C. Process, Jom 38(1986) 14-16.

DOI: 10.1007/bf03257948

[11] J. Mei, X.H. Liu, Y.B. Jiang, J.X. Xie, Evolution of Microstructure, Texture and Mechanical Properties of BFe10-1-1 Tube with Microstructure Along Axial Orientation During Cold-Rolling, Chin. J. Nonferrous. Met. 22(2012) 2529-2538.

[12] X.F. Liu, M. Zhang, J.H. Luo, W.Y. Wu, J.X. Xie, C.N., Patent 103170558. (2013).

[13] M. Rappaz, C.A. Gandin, Probabilistic Modelling of Microstructure Formation in Solidification Processes, Acta Metall. Mater. 41(1993) 345-360.

DOI: 10.1016/0956-7151(93)90065-z

[14] D.C. Tsai, W.S. Hwang, Numerical Simulation of the Solidification Processes of Copper During Vacuum Continuous Casting, J. Cryst. Growth 343(2012) 45-54.

DOI: 10.1016/j.jcrysgro.2011.12.074

[15] Z.M. Xu, J.G. Li, H.Z. Fu, Continuous Casting Technology of Single Crystal Copper Rod, Trans. Nonferrous Met. Soc. China 8(1998) 277-282.
