Microstructure and Creep Behaviors of As-Cast Mg-Zn-Er Alloys

Abstract:

The microstructure and creep behaviors of cast Mg-xZn-yEr (x=3,6,9 wt.%, x/y=6) alloys were investigated by X-ray diffraction (XRD), optical microscope (OM), scanning electron microscope (SEM) and transmission electron microscope (TEM). XRD results indicated that the main phase compositions of as-cast Mg-xZn-yEr alloys were the icosahedral quasicrystalline phase (I-phase) and α-Mg solid solution. The I-phase mainly distributed in the dendritic and staccato strips. The creep tests were conducted under the condition of 448 K, 70 MPa for 100 h. As the addition of Er increased from 0.5 wt.% to 1.5 wt.%, the total creep strain decreased from 0.962% to 0.512%, and the steady state creep rate decreased from 1.411×10^-⁸s^-1 to 4.917×10^-9s^-1. The I-phase had a tendency to be bulky and continuous, as the volume fraction of Er element increased. Ascribed to the I-phase, the creep strain happened and effectively blocked the movement of dislocations, resulting in the strengthened as-cast Mg-Zn-Er alloys and improved creep resistance. Based on the investigation of creep behaviors, the creep mechanism of the as-cast alloy was mainly grain boundary slipping.

You might also be interested in these eBooks

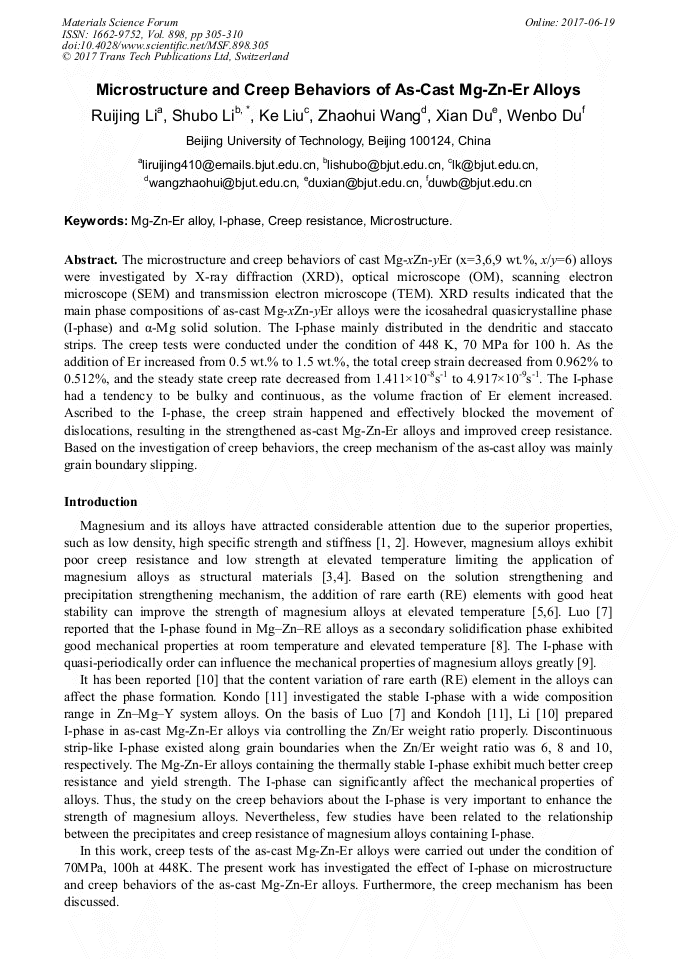

View Preview

Info:

Periodical:

Materials Science Forum (Volume 898)

Pages:

305-310

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.898.305

Citation:

Cite this paper

Online since:

June 2017

Authors:

Rui Jing Li, Shu Bo Li*, Ke Liu, Zhao Hui Wang, Xian Du, Wen Bo Du

Keywords:

Creep Resistance, I-Phase, Mg-Zn-Er Alloy, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z. Yang, J.P. Li, J.X. Zhang, G.W. Lorimer, J. Robson, Review on research and development of magnesium alloy, J. Acta. Metall. Sin. 21(2008) 313-328.

Google Scholar

[2] S. Fujisawa, A. Yonezu, T. Okamura, K. Yoneda, Estimation of microstructural plastic property of die-cast Mg alloy (AZ91D) with an elevated temperature indentation, J. Mater. Sci. Eng. A. 616 (2014) 63–70.

DOI: 10.1016/j.msea.2014.07.106

Google Scholar

[3] M. Bugnet, A. Kula, M. Niewczas, G. A. Botton, Segregation and clustering of solutes at grain boundaries in Mg-rare earth solid solutions, J. Acta. Mater. 79 (2014)66–73.

DOI: 10.1016/j.actamat.2014.06.004

Google Scholar

[4] S.H. Park, H.S. Kim, J.H. Bae, C.D. Yim, B.S. You, Improving the mechanical properties of extruded Mg-3Al-1Zn alloy by cold pre-forging, J. Scr. Mater. 69 (2013)250–253.

DOI: 10.1016/j.scriptamat.2013.04.011

Google Scholar

[5] K. Liu, L. L. Rokhlin, F. M. Elkin, D. X. Tang, J. Meng, Effect of ageing treatment on the microstructures and mechanical properties of the extruded Mg–7Y–4Gd– 1. 5Zn–0. 4Zr alloy, J. Mater. Sci. Eng. A. 527(2010)828–834.

DOI: 10.1016/j.msea.2009.10.031

Google Scholar

[6] A. Issa, J. E. Saal, C. Wolverton, Formation of high-strength β' precipitates in Mg-RE alloys: the role of the Mg/β" interfacial instability, J. Acta Mater. 83 (2015)75–83.

DOI: 10.1016/j.actamat.2014.09.024

Google Scholar

[7] Z.P. Luo, S.Q. Zhang, Y.L. Tang, D.S. Zhao, Quasicrystals in as-cast Mg-Zn-RE alloys, J. Scr. Mater. 28(1993)1513-1518.

DOI: 10.1016/0956-716x(93)90584-f

Google Scholar

[8] S. Yi, E.S. Park, J.B. Ok, W.T. Kim, D.H. Kim, (Icosahedral phase + α-Mg) two phase microstructures in the Mg-Zn-Y ternary system, J. Mater. Sci. Eng. A. 300(2001) 312-315.

DOI: 10.1016/s0921-5093(00)01474-x

Google Scholar

[9] D.H. Bae, Y. Kim, I.J. Kim, Thermally stable quasicrystalline phase in a superplastic Mg-Zn-Y-Zr alloy, J. Mater. Lett. 60(2006) 2190−2193.

DOI: 10.1016/j.matlet.2005.12.096

Google Scholar

[10] H. Li, W.B. Du, S.B. Li, Z.H. Wang, Effect of Zn/Er weight ratio on phase formation and mechanical properties of as-cast Mg–Zn–Er alloys, J. Mater. Design. 35(2012)259-265.

DOI: 10.1016/j.matdes.2011.10.002

Google Scholar

[11] R. Kondoh, Y. Honda, T. Hashimoto, K. Edagawa, S. Takeuchi, In: C. Janot, R. Mosseri, editors. Proceedings of the fifth international conference on quasicrystals. The Scientific World, J. 1995. p.476.

Google Scholar

[12] D. Shechtman, I. Blech, D. Gratias, J.W. Cahn, Metallic phase with long-range orientational order and no translational symmetry, J. Phys. Rev. Lett. 53(1984)1951-(1954).

DOI: 10.1103/physrevlett.53.1951

Google Scholar

[13] J.S. Zhang, J. Yan, W. Liang, C.X. Xu, C.L. Zhou, Icosahedral quasicrystal phase in Mg–Zn–Nd ternary system, J. Mater. Lett. 62(2008) 4489-4491.

DOI: 10.1016/j.matlet.2008.08.005

Google Scholar

[14] R.M. Wang, A. Eliezer, E, Gutman. Microstructures and dislocations in the stressed AZ91D magnesium alloy, J. Mater. Sci. Eng. A. 344(2002) 279–287.

DOI: 10.1016/s0921-5093(02)00413-6

Google Scholar
