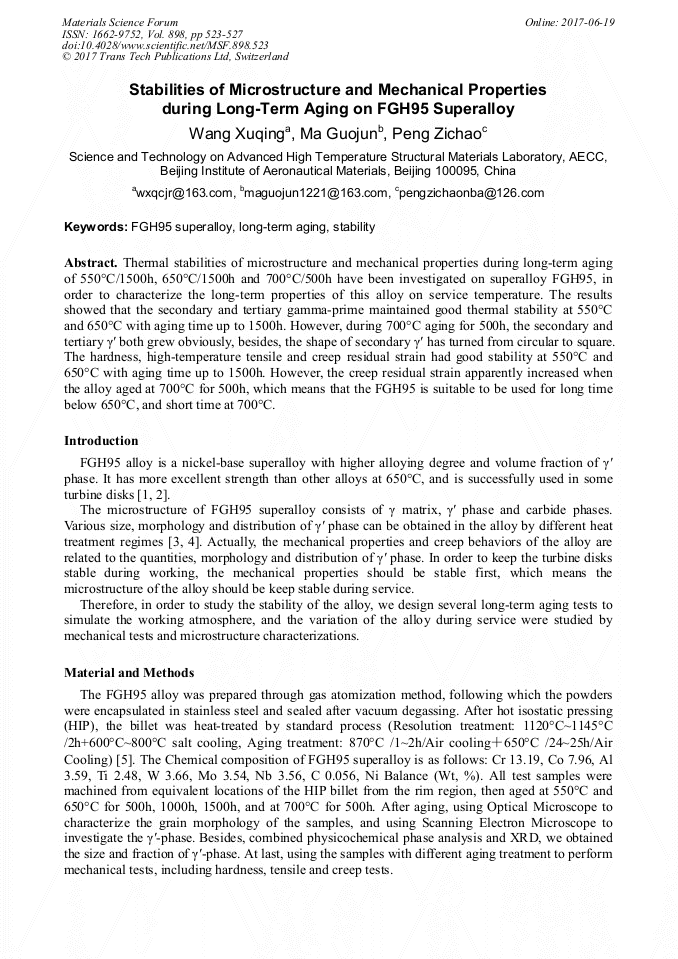

Stabilities of Microstructure and Mechanical Properties during Long-Term Aging on FGH95 Superalloy

Abstract:

Thermal stabilities of microstructure and mechanical properties during long-term aging of 550°C/1500h, 650°C/1500h and 700°C/500h have been investigated on superalloy FGH95, in order to characterize the long-term properties of this alloy on service temperature. The results showed that the secondary and tertiary gamma-prime maintained good thermal stability at 550°C and 650°C with aging time up to 1500h. However, during 700°C aging for 500h, the secondary and tertiary γ′ both grew obviously, besides, the shape of secondary γ′ has turned from circular to square. The hardness, high-temperature tensile and creep residual strain had good stability at 550°C and 650°C with aging time up to 1500h. However, the creep residual strain apparently increased when the alloy aged at 700°C for 500h, which means that the FGH95 is suitable to be used for long time below 650°C, and short time at 700°C.

You might also be interested in these eBooks

View Preview

View Preview

Info:

Periodical:

Materials Science Forum (Volume 898)

Pages:

523-527

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.898.523

Citation:

Cite this paper

Online since:

June 2017

Authors:

Xu Qing Wang*, Guo Jun Ma, Zi Chao Peng

Keywords:

FGH95 Superalloy, Long-Term Aging, Stability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] W X Wang, F He, J W Zou, The Application and Development of PM Superalloys, Aviation Maintenance and Engineering, 6(2002) 26-28.

Google Scholar

[2] W X Wang, J Mao, H Hu, As-HIP FGH95 Powder Metallurgy Superalloy Turbine Disk, Journal of Materials Engineering, 6(1999) 39-43.

Google Scholar

[3] S. G. Tian, J. Xie, X. M. Zhou, Microstructure and creep behavior of FGH95 nickel-base superalloy, Materials Science and Engineering A 395, 2005, 33-37.

Google Scholar

[4] H Y Li, X P Song, Y L Wang, Stability of gamma prime phase in FGH95 superalloy, Rare metal materials and engineering, 38( 2009) 64-67.

Google Scholar

[5] X Q Wang, X J Luo, Study on Microstructure and Properties of Complicated Shape Disk of FGH95 PM Superalloy, Journal of Materials Engineering, S1(2009) 61~64.

Google Scholar

[6] J. Tiley, G. B. Viswanathan, R. Srinivasan, Coarsening kinetics of gamma prime precipitates in the commercial nickel base superalloy Rene 88DT, Acta Materialia, 57(2009) 2538-2549.

DOI: 10.1016/j.actamat.2009.02.010

Google Scholar

[7] D. Hadjiapostolidou, B. A. Shollock, Long term coarsening in Rene 80 Ni-base superalloy, Superalloys 2008, 733-739.

DOI: 10.7449/2008/superalloys_2008_733_739

Google Scholar
