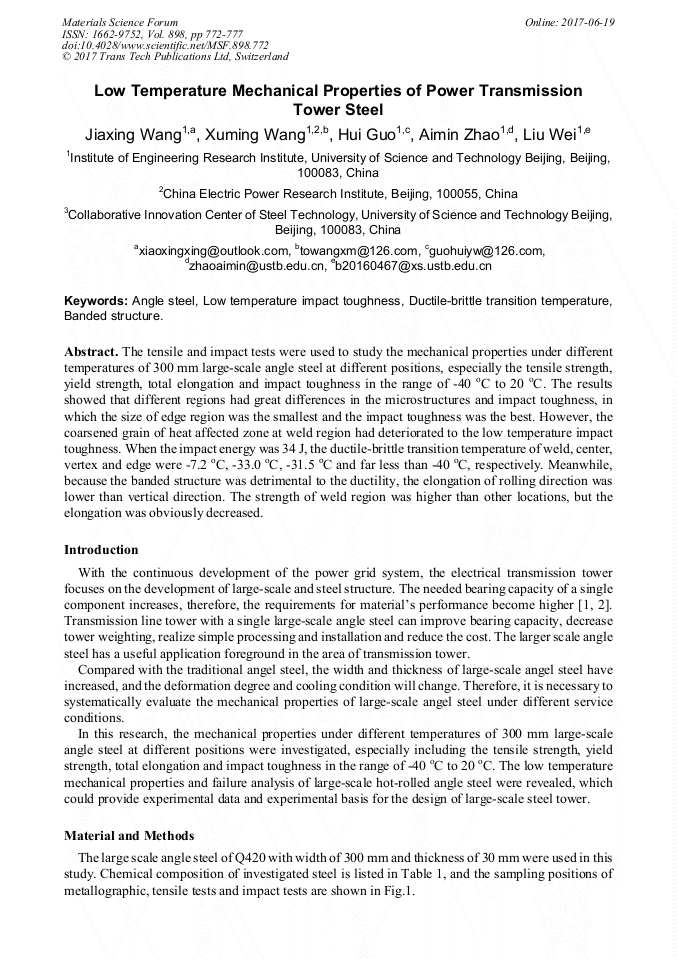

Low Temperature Mechanical Properties of Power Transmission Tower Steel

Abstract:

The tensile and impact tests were used to study the mechanical properties under different temperatures of 300 mm large-scale angle steel at different positions, especially the tensile strength, yield strength, total elongation and impact toughness in the range of-40 ^oC to 20 ^oC. The results showed that different regions had great differences in the microstructures and impact toughness, in which the size of edge region was the smallest and the impact toughness was the best. However, the coarsened grain of heat affected zone at weld region had deteriorated to the low temperature impact toughness. When the impact energy was 34 J, the ductile-brittle transition temperature of weld, center, vertex and edge were-7.2 ^oC, -33.0 ^oC, -31.5 ^oC and far less than-40 ^oC, respectively. Meanwhile, because the banded structure was detrimental to the ductility, the elongation of rolling direction was lower than vertical direction. The strength of weld region was higher than other locations, but the elongation was obviously decreased.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 772-777
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.772
• Online since: June 2017
• Authors: Jia Xing Wang*, Xu Ming Wang, Hui Guo, Ai Min Zhao, Liu Wei
• Keywords: Angle Steel, Banded Structure, Ductile-Brittle Transition Temperature, Low Temperature Impact Toughness

References

[1] H.J. Xing, M.H. Li, J.B. Yang, J. Wu, X.L. Zhang, Experimental study on stability of Q420 angle steel compression members with high width-thickness ratio, Electric Power 43 (2010) 23-26. (in Chinese).

[2] F.R. Yang, X.B. Li, X. Chen, Y. Han, J.K. Nie, Z. Li, Q, Li, Study on low temperature service capabilities and application of power transmission tower steel, Proceedings of the CSEE 33 (2013) 117-122. (in Chinese).

[3] The State Administration of Quality Supervision Inspection and Quarantine of the People's Republic of China. GB/T 229-2007 Metallic materials Charpy pendulum impact test method. Beijing: Standards Press of China, (2007).

[4] The State Administration of Quality Supervision Inspection and Quarantine of the People's Republic of China. GB/T 228. 1-2010 Metallic materials tensile testing at ambient temperature. Beijing: Standards Press of China, (2010).

[5] F. Huang, H.J. Zhao, G.Y. Qiu, X. Zhang, Y.H. Zhang, Simulation of hot rolling process for equal angle steel and analysis of leg length problem, Hot Working Technology 43 (2014) 114-118. (in Chinese).

[6] T. Hanamura, F. Yin, K. Nagai, Ductile-Brittle transition temperature of ultrafine ferrite/cementite microstructure in a low carbon steel controlled by effective grain size, ISIJ Int. 44 (2004) 610-617.

DOI: 10.2355/isijinternational.44.610

[7] H. Terasaki H, M. Sato M, Y. Komizo, Analytical investigation of prior austenite grain size dependence of low temperature toughness in steel weld metal, Journal of Materials Science and Technology –Shenyang 20 (2012) 241-248.

DOI: 10.1016/s1005-0302(12)60048-6

[8] Y.L. Wang, F.M. Xie, Y.H. Ye, R.W. Yu, Impact property of high-performance angle steel Q460TE for tower structure, Heat Treatment of Metals 36 (2011) 22-24. (in Chinese).

[9] Y.Q. Wang, Y. Lin, Y.N. Zhang, Y.J. Shi, Experimental study on the mechanical properties of Q460C the high strength construction steel at low temperature, Adv. Mater. Res. 250-253(2011) 574-579.

DOI: 10.4028/www.scientific.net/amr.250-253.574

[10] Y.J. Chao, J.D. Ward, R.G. Sands, Charpy impact energy, fracture toughness and ductile–brittle transition temperature of dual-phase 590 steel, Mater. Des. 28 (2005) 551-557.

DOI: 10.1016/j.matdes.2005.08.009

[11] J. Zhao, W. Hu, X. Wang, J. Bang, G. Yuan, H. Di, R.D.K. Misra, Effect of microstructure on the crack propagation behavior of microalloyed 560 MPa (X80) strip during ultra-fast cooling, Mater. Sci. Eng. A 666 (2016) 214-224.

DOI: 10.1016/j.msea.2016.04.073

[12] Y. Lin, Experimental study on mechanical properties and toughness of Q460C high strength steel and its weld. Shenyang: Shenyang Jian zhu University. 2012. (in Chinese).
