Hot Deformation and Dynamic Recrystallization Behavior of Fe-8Mn-6Al-0.2C Steel

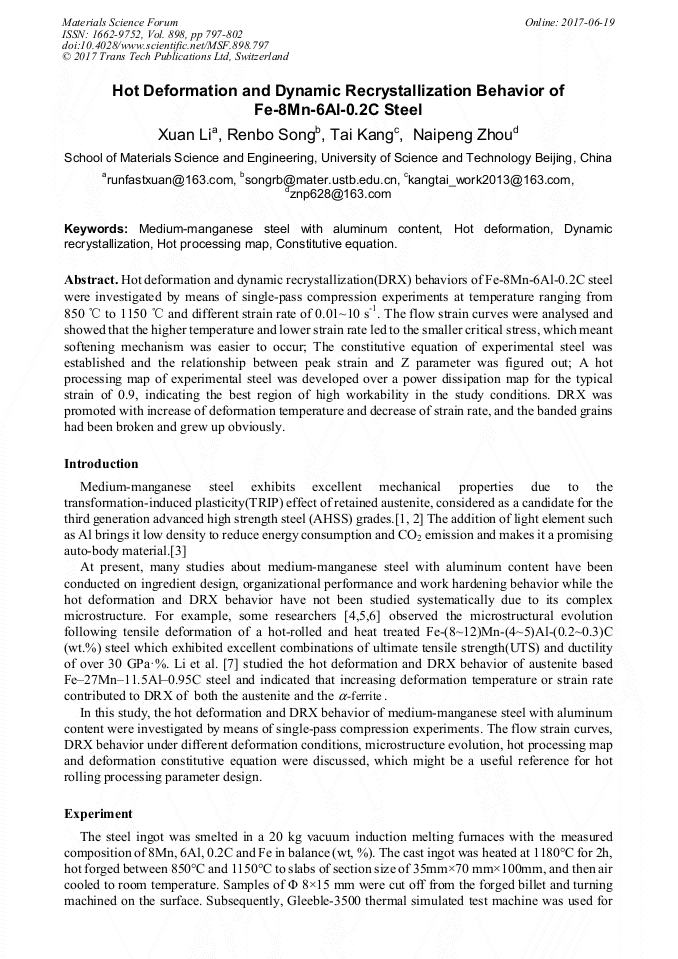

Abstract:

Hot deformation and dynamic recrystallization (DRX) behaviors of Fe-8Mn-6Al-0.2C steel were investigated by means of single-pass compression experiments at temperature ranging from 850 °C to 1150 °C and different strain rate of 0.01~10 s^-1. The flow strain curves were analysed and showed that the higher temperature and lower strain rate led to the smaller critical stress, which meant softening mechanism was easier to occur; The constitutive equation of experimental steel was established and the relationship between peak strain and Z parameter was figured out; A hot processing map of experimental steel was developed over a power dissipation map for the typical strain of 0.9, indicating the best region of high workability in the study conditions. DRX was promoted with increase of deformation temperature and decrease of strain rate, and the banded grains had been broken and grew up obviously.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 797-802
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.797
• Online since: June 2017
• Authors: Xuan Li*, Ren Bo Song, Tai Kang, Nai Peng Zhou
• Keywords: Constitutive Equation, Dynamic Recrystallization, Hot Deformation, Hot Processing Map, Medium-Manganese Steel with Aluminum Content

References

[1] TANG Di, MI Zhen-li, CHEN Yu-lai. Technology and Research and Development of Advanced Automobile Steel Abroad [J]. Iron and Steel, 2005, 40(6): 1-5.

[2] ZHANG Leifeng, SONG Renbo, ZHAO Chao, YANG Fuqiang, QIN Shuai, XU Yang. Research Progress of New Automotive Steel--Low-density High Strength - Toughness Steel [J]. Materials Review, 2014, 28(19): 111-118.

[3] Suh D W, Park S J, Lee T H, et al. Influence of Al on the Microstructural Evolution and Mechanical Behavior of Low-Carbon, Manganese Transformation-Induced-Plasticity Steel[J]. Corrosion Science, 2010, 52(5): 1721-1727.

DOI: 10.1007/s11661-009-0124-7

[4] Lee C Y, Jeong J, Han J, et al. Coupled strengthening in a medium manganese lightweight steel with an inhomogeneously grained structure of austenite[J]. Acta Materialia, 2015, 84: 1-8.

DOI: 10.1016/j.actamat.2014.10.032

[5] Park S J, Hwang B, Lee K H, et al. Microstructure and tensile behavior of duplex low-density steel containing 5mass% aluminum[J]. Scripta Materialia, 2013, 68(6): 365-369.

DOI: 10.1016/j.scriptamat.2012.09.030

[6] I Cai Z, Ding H, Ying Z, et al. Microstructural Evolution and Deformation Behavior of a Hot-Rolled and Heat Treated Fe-8Mn-4Al-0. 2C Steel[J]. Journal of Materials Engineering & Performance, 2014, 23(4): 1131-1137.

DOI: 10.1007/s11665-014-0866-2

[7] Li Y P, Song R B, Wen E D, et al. Hot Deformation and Dynamic Recrystallization Behavior of Austenite-Based Low-Density Fe–Mn–Al–C Steel[J]. Acta Metallurgica Sinica, 2016, 29(5): 1-9.

DOI: 10.1007/s40195-016-0406-1

[8] Gottstein G, Frommert M, Goerdeler M, et al. Prediction of the critical conditions for dynamic recrystallization in the austenitic steel 800H[J]. Materials Science & Engineering A, 2004, s 387–389(1): 604-608.

DOI: 10.1016/j.msea.2004.02.098

[9] Cai D, Xiong L, Liu W, et al. Development of processing maps for a Ni-based superalloy[J]. Materials Characterization, 2007, 58(10): 941-946.

DOI: 10.1016/j.matchar.2006.09.004

[10] Xiao X, Liu G Q, Hu B F, et al. A comparative study on Arrhenius-type constitutive equations and artificial neural network model to predict high-temperature deformation behaviour in 12Cr3WV steel[J]. Computational Materials Science, 2012, 62(11): 227-234.

DOI: 10.1016/j.commatsci.2012.05.053

[11] Meysami M, Mousavi S A A A. Study on the behavior of medium carbon vanadium microalloyed steel by hot compression test[J]. Materials Science & Engineering A, 2011, 528(7): 3049-3055.

DOI: 10.1016/j.msea.2010.11.093

[12] Wei H L, Liu G Q, Zhao H T, et al. Hot deformation behavior of two C–Mn–Si based and C–Mn–Al based microalloyed high-strength steels: A comparative study[J]. Materials & Design, 2013, 50(17): 484-490.

DOI: 10.1016/j.matdes.2013.03.043

[13] Momeni A, Dehghani K. Hot working behavior of 2205 austenite–ferrite duplex stainless steel characterized by constitutive equations and processing maps[J]. Materials Science & Engineering A, 2011, 528(3): 1448-1454.

DOI: 10.1016/j.msea.2010.11.020
