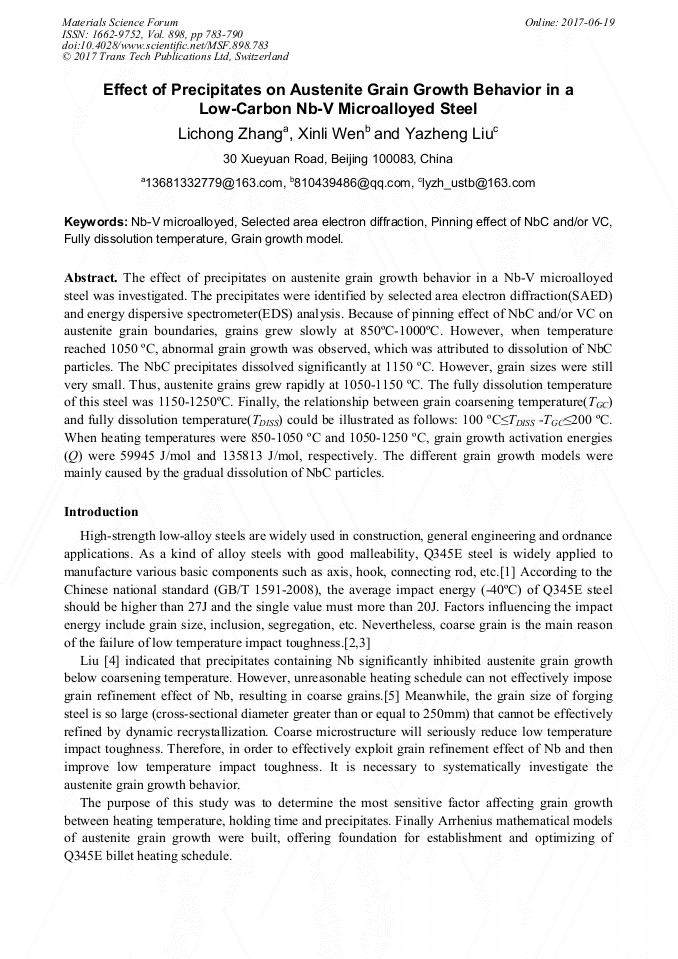

Effect of Precipitates on Austenite Grain Growth Behavior in a Low-Carbon Nb-V Microalloyed Steel

Abstract:

The effect of precipitates on austenite grain growth behavior in a Nb-V microalloyed steel was investigated. The precipitates were identified by selected area electron diffraction (SAED) and energy dispersive spectrometer (EDS) analysis. Because of pinning effect of NbC and/or VC on austenite grain boundaries, grains grew slowly at 850oC-1000oC. However, when temperature reached 1050 oC, abnormal grain growth was observed, which was attributed to dissolution of NbC particles. The NbC precipitates dissolved significantly at 1150 oC. However, grain sizes were still very small. Thus, austenite grains grew rapidly at 1050-1150 oC. The fully dissolution temperature of this steel was 1150-1250oC. Finally, the relationship between grain coarsening temperature (T_GC) and fully dissolution temperature (T_DISS) could be illustrated as follows: 100 oC≤T_DISS -T_GC≤200 oC. When heating temperatures were 850-1050 oC and 1050-1250 oC, grain growth activation energies (Q) were 59945 J/mol and 135813 J/mol, respectively. The different grain growth models were mainly caused by the gradual dissolution of NbC particles.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 783-790
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.783
• Online since: June 2017
• Authors: Li Chong Zhang, Xin Li Wen, Ya Zheng Liu
• Keywords: Fully Dissolution Temperature, Grain Growth Model, Nb-V Microalloyed, Pinning Effect of NbC and/or VC, Selected Area Electron Diffraction

References

[1] D. S. Qian, Y. Y. Peng, Mathematical Modeling for Microstructural Evolution in Multi-pass Hot Compression of Q345E Alloy Steel, J. Mater. Eng. Perform. 24 (2015) 1906-(1917).

DOI: 10.1007/s11665-015-1473-6

[2] J. W. Zhao, Z. Y. Jiang, C. S. Lee, Enhancing impact fracture toughness and tensile properties of a microalloyed cast steel by hot forging and post-forging heat treatment processes, Mater. Des. 47 (2013) 227-233.

DOI: 10.1016/j.matdes.2012.11.051

[3] J. W. Zhao, J. H. Lee, Y. W. Kim, Z.Y. Jiang, C. S. Lee, Enhancing mechanical properties of a low-carbon microalloyed cast steel by controlled heat treatment, Mater. Sci. Eng. A 559 (2013) 427-435.

DOI: 10.1016/j.msea.2012.08.122

[4] X. Liu, F. Zhao, Z. Q. Dong, C. L. Zhang, Y. S. Kou, Y. Z. Liu, Effect of Niobium Additions on Austenite Grain Coarsening Behavior of GCr15 Bearing Steel, Mater. Sci. Forum 817 (2015) 121-126.

DOI: 10.4028/www.scientific.net/msf.817.121

[5] Q.Y. Yu, Y. Sun, Abnormal growth of austenite grain of low-carbon steel, Mater. Sci. Eng. A 420 (2006) 34-38.

[6] S. K. Mishra, S. Das, S. Ranganathan, Precipitation in high strength low alloy (HSLA) steel: a TEM study, Mater. Sci. Eng. A 323 (2002) 285-292.

DOI: 10.1016/s0921-5093(01)01382-x

[7] R. Staśko, H. Adrian, A. Adrian, Effect of nitrogen and vanadium on austenite grain growth kinetics of a low alloy steel, Mater. Charact. 56 (2006) 340-347.

DOI: 10.1016/j.matchar.2005.09.012

[8] L. N. Duan, J. M. Wang, Q. Y. Liu, X. J. Sun, J. C. Cao, Austenite grain growth behavior of X80 pipeline steel in heating process, J. Iron Steel Res. Int. 17 (2010) 62-66.

DOI: 10.1016/s1006-706x(10)60074-x

[9] S. Maropoulos, S. Karagiannis, N. Ridley, The effect of austenitising temperature on prior austenite grain size in a low-alloy steel, Mater. Sci. Eng. A 483 (2008) 735-739.

DOI: 10.1016/j.msea.2006.11.172

[10] Q. Y. Sha, Z. Q. Sun, Prediction of grain growth of coarse-grained austenite in Nb-V-Ti microalloyed steel, Mater Sci and Technol. 27 (2011) 1408-1411.

DOI: 10.1179/026708310x12701149768214

[11] M. Chapa, S. F. Medina, V. López, B. Fernández1, Influence of Al and Nb on Optimum Ti/N Ratio in Controlling Austenite Grain Growth at Reheating Temperatures, ISIJ int. 42 (2002) 1288-1296.

DOI: 10.2355/isijinternational.42.1288

[12] P. A. Manohar, M. Ferry, T. Chandra, Five Decades of the Zener Equation, ISIJ int. 38 (1998) 913-924.

DOI: 10.2355/isijinternational.38.913

[13] J. Rudnizki, B. Zeislmair, U. Prahl, W. Bleck, Prediction of abnormal grain growth during high temperature treatment, Comput. Mater. Sci. 49 (2010) 209-216.

DOI: 10.1016/j.commatsci.2010.04.015

[14] J. S. Park, Y. K. Lee, Determination of Nb(C, N) dissolution temperature by electrical resistivity measurement in a low-carbon microalloyed steel, Scr. Mater. 56 (2007) 225-228.

DOI: 10.1016/j.scriptamat.2006.10.007

[15] J. S. Park, Y. S. Ha, S. J. Lee, Y. K. Lee, Dissolution and precipitation kinetics of Nb (C, N) in austenite of a low-carbon Nb-microalloyed steel, Metall. Mater. Trans. A 40 (2009) 560-568.

DOI: 10.1007/s11661-008-9758-0

[16] E. J. Palmiere, C. I. Garcia, A. J. Deardo, Compositional and Microstructural Changes Which Attend Reheating and Grain Coarsening in Steels Containing Niobium, Metall. Mater. Trans. A 25 (1994) 277-286.

DOI: 10.1007/bf02647973

[17] S. S. Zhang, M. Q. Li, Y. G. Liu, J. Luo, T. Q. Liu, The growth behavior of austenite grain in the heating process of 300M steel, Mater. Sci. Eng. A 528 (2011) 4967-4972.

DOI: 10.1016/j.msea.2011.02.089

[18] S. J. Lee, Y. K. Lee, Prediction of austenite grain growth during austenitization of low alloy steels, Mater. Des. 29 (2008) 1840-1844.

DOI: 10.1016/j.matdes.2008.03.009

[19] S. S. Li, Y. H. Liu, Y. L. Song, L. N. Kong, T. J. Li, R. H. Zhang, Austenitic Grain Growth Behavior during Austenization in an Aluminum-Alloyed 5% Cr-Mo-V Steel, Steel Res. Int. 87 (2016) 1.

DOI: 10.1002/srin.201500427

[20] H. Hu, B. B. Rath, On the time exponent in isothermal grain growth, Metall. Trans. 1(1970) 3181-3184.

DOI: 10.1007/bf03038435

[21] J. E. Burke, Some factors affecting the rate of grain growth in metals, Trans. AIME. 180 (1949) 73-91.

[22] C. S. Smith, Grains, phases, and interphases: an interpretation of microstructure, Trans. Metall. Soc. AIME. 175 (1948) 15-51.
