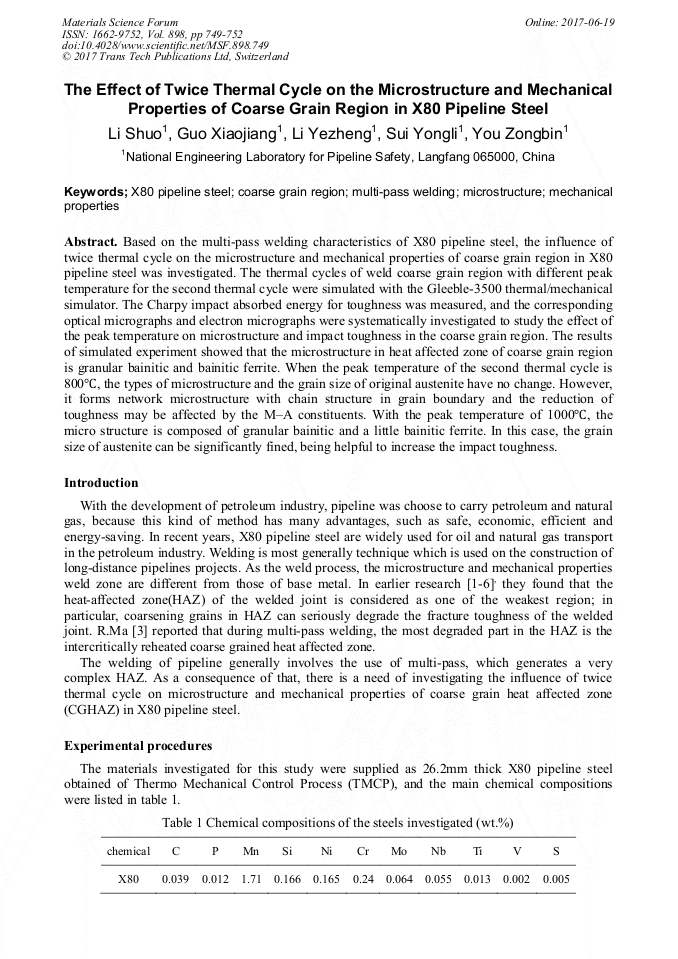

The Effect of Twice Thermal Cycle on the Microstructure and Mechanical Properties of Coarse Grain Region in X80 Pipeline Steel

Abstract:

Based on the multi-pass welding characteristics of X80 pipeline steel, the influence of twice thermal cycle on the microstructure and mechanical properties of coarse grain region in X80 pipeline steel was investigated. The thermal cycles of weld coarse grain region with different peak temperature for the second thermal cycle were simulated with the Gleeble-3500 thermal/mechanical simulator. The Charpy impact absorbed energy for toughness was measured, and the corresponding optical micrographs and electron micrographs were systematically investigated to study the effect of the peak temperature on microstructure and impact toughness in the coarse grain region. The results of simulated experiment showed that the microstructure in heat affected zone of coarse grain region is granular bainitic and bainitic ferrite. When the peak temperature of the second thermal cycle is 800°C, the types of microstructure and the grain size of original austenite have no change. However, it forms network microstructure with chain structure in grain boundary and the reduction of toughness may be affected by the M–A constituents. With the peak temperature of 1000°C, the micro structure is composed of granular bainitic and a little bainitic ferrite. In this case, the grain size of austenite can be significantly fined, being helpful to increase the impact toughness.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 749-752
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.749
• Online since: June 2017
• Authors: Shuo Li*, Xiao Jiang Guo, Ye Zheng Li, Yong Li Sui, Zong Bin You
• Keywords: Coarse Grain Region, Mechanical Properties, Microstructure, Multi-Pass Welding, X80 Pipeline Steel

References

[1] M. Zhang, Li. Yang, J.H. Li, et al, Submerged arc welding X100 pipeline steels, Mater Manu Proc. 29 (2014) 64-68.

[2] S. Moeinifar, A. H. Kokabi, H.R. Madaah Hosseini, Influence of peak temperature during simulation and real thermal cycles on microstructure and fracture properties of the reheat zones, Mater. Des. 31 (2010) 2948-2955.

DOI: 10.1016/j.matdes.2009.12.023

[3] R. M, K. Fang, J.G. Yang, et al, Grain refinement of HAZ in multi-pass welding, J. Mater Proc Tech. 214 (2014) 1131-1135.

DOI: 10.1016/j.jmatprotec.2013.12.017

[4] Hui Li, Jing-Long Liang, Yun-Li Feng, et al, Microstructure transformation of X70 pipeline steel welding heat-affected zone, Rare Met. 33 (2014) 493-498.

DOI: 10.1007/s12598-014-0344-x

[5] R. M, K. Fang, J.G. Yang, et al, Effect of simulated weld thermal cycle on microstructure and mechanical properties of X90 pipeline steel, Mater Sci Eng A. 528 (2011) 7417-7422.

DOI: 10.1016/j.msea.2011.06.046

[6] Rrahim Maksuti1, Hamit Mehmeti, Hartmut Baum, et al, Correlation of microstructure and toughness of the welded joint of pipeline steel X65, T. Boukharouba et al. (eds. ), Damage and fracture mechanics: failure analysis of engineering materials and structures, Springer Science + Business Media B.V. (2009).

DOI: 10.1007/978-90-481-2669-9_33

[7] E Bonnevie, G. Ferriere, A. Ikhlef, et al, Morphological aspects of martensite/ austenite(M/A) in intercritical and coarse grain heat affected zones of structural steels, Mater. Sci Eng A. 385 (2004) 352-358.

DOI: 10.1016/s0921-5093(04)00859-7

[8] Chen Xiao wei, Liao Bo, Qiao Gui ying, et al, Effect of Nb on mechanical properties of HAZ for high-Nb X80 pipeline steels, J. Iron and steel research international. 20 (2013) 53-60.

DOI: 10.1016/s1006-706x(13)60216-2
