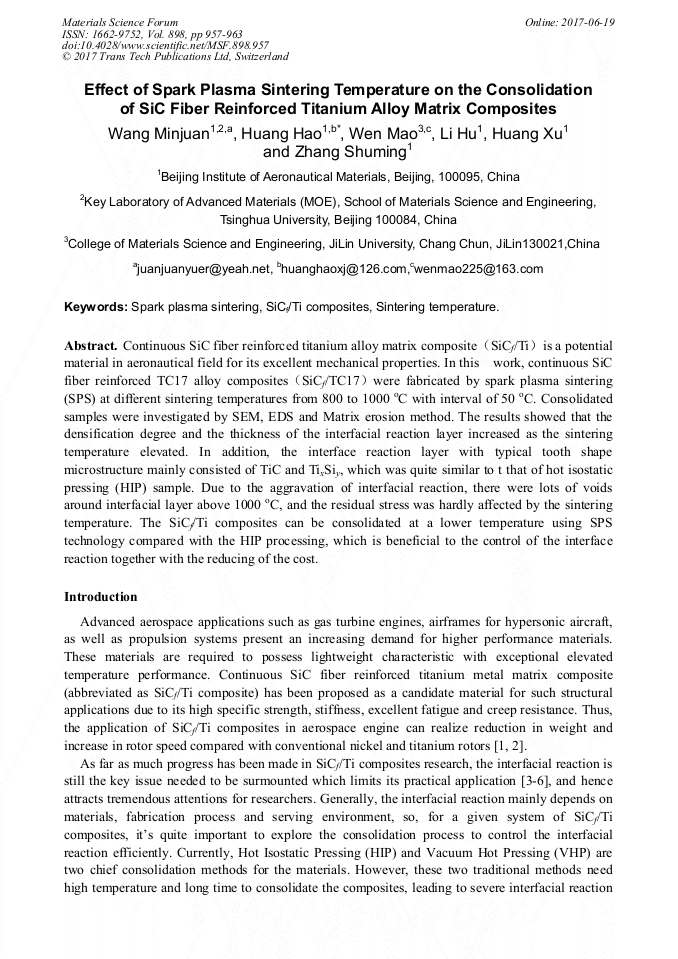

Effect of Spark Plasma Sintering Temperature on the Consolidation of SiC Fiber Reinforced Titanium Alloy Matrix Composites

Abstract:

Continuous SiC fiber reinforced titanium alloy matrix composite (SiC_f/Ti) is a potential material in aeronautical field for its excellent mechanical properties. In this work, continuous SiC fiber reinforced TC17 alloy composites (SiC_f/TC17) were fabricated by spark plasma sintering (SPS) at different sintering temperatures from 800 to 1000 ^oC with interval of 50 ^oC. Consolidated samples were investigated by SEM, EDS and Matrix erosion method. The results showed that the densification degree and the thickness of the interfacial reaction layer increased as the sintering temperature elevated. In addition, the interface reaction layer with typical tooth shape microstructure mainly consisted of TiC and Ti_xSi_y, which was quite similar to t that of hot isostatic pressing (HIP) sample. Due to the aggravation of interfacial reaction, there were lots of voids around interfacial layer above 1000 ^oC, and the residual stress was hardly affected by the sintering temperature. The SiC_f/Ti composites can be consolidated at a lower temperature using SPS technology compared with the HIP processing, which is beneficial to the control of the interface reaction together with the reducing of the cost.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 957-963
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.957
• Online since: June 2017
• Authors: Min Juan Wang, Hao Huang*, Mao Wen, Hu Li, Xu Huang, Shu Ming Zhang
• Keywords: SiC_f/Ti Composites, Sintering Temperature, Spark Plasma Sintering

References

[1] Y.G. Zhou, Y.Q. Yang. Progress in the study of titanium matrix composites reinforced by SiC fibers. Acta Metallurgica Sinica. 38 ( 2002) 461-465.

[2] Michael G. Castelli, John Gayda. An overview of elevated temperature damage mechanisms and fatigue behavior of unidirectional SCS-6/Ti-15-3 composite. NASA Technical Memorandum 106131, (1993).

DOI: 10.1016/0142-1123(94)90278-x

[3] William D. Brewer, Jalaiah Unnam. Interface control and mechanical property improvements in silicon carbide/Titanium composites, NASA Technical paper 2066, (1982).

[4] Constantin Vahlas, Ian W. Hall, etc. Investigation of interfacial reactivity in composite materials, Materials Science and Engineering A 259 (1999) 269-278.

DOI: 10.1016/s0921-5093(98)00905-8

[5] C. Banlnl, M. Ferraris, F. Marchetti, Thermal stability of interfaces in Ti-6Al-4V reinforced by SiC Sigma fibers, Journal of materials science 29 (1994) 4840-4846.

DOI: 10.1007/bf00356531

[6] S. Mukherjee, C. R. Ananth, etc. Effects of interface chemistry on the fracture properties of titanium matrix composites, Composites Part A 29A (1998) 1213-1219.

DOI: 10.1016/s1359-835x(97)00129-2

[7] S. Q. Guo, Y. Kagawa, etc. Microstructural characterization of interface in SiC fiber-reinforced Ti-15V-3Cr-3Al-3Sn matrix composite, Materials Science and Engineering A, 246 (1998) 25-35.

DOI: 10.1016/s0921-5093(97)00737-5

[8] H. Li, H. Huang, etc. Investigation of interface reaction in continuous SiC fiber reinforced titanium comoposites, Forging and stamping technology, Vol. 41, No. 4, (2016) 103-108.

[9] S. Q. Guo, Y. Kagawa, etc. Microstructural characterization of interface in SiC fiber-reinforced Ti-15V-3Cr-3Al-3Sn matrix composite, Materials Science and Engineering A246 (1998) 25-35.

DOI: 10.1016/s0921-5093(97)00737-5

[10] I. W. Hall, J.L. Lirn, etc. Interfacial reactions in titanium matrix composites, Journal of materials science letters 10 (1991) 263-366.

[11] X. H. Lu, Y. Y. Yang, etc. Influence of Alloying Element Diffusion on Fabricating Ti Matrix Composites, Rare metal materials and engineering, Vol. 37, No. 8, 2008, 1329-1335.

[12] S. M. Jeng, W. Kal, etc. Interface Reaction studies of B4C/B and SiC/B fiber-reinforced Ti3Al matrix composites, Materials Science and Engineering A, 114 (1989) 189-196.

DOI: 10.1016/0921-5093(89)90858-7

[13] R. Verma, A. K. Ghosh, etc. Measurement of interfacial shear properties of composites of Ti-1100 alloy reinforced with SCS-6 SiC monofilament fiber, Materials Science and Engineering A, 191 (1995) 151-163.

DOI: 10.1016/0921-5093(94)09622-4

[14] U Ramamurty, F C Dary, etc. A method for measuring residual strains in fiber-reinforced titanium matrix composites. Acta Mater, 1996, 44(8): 3397-3406.

DOI: 10.1016/1359-6454(95)00407-6

[15] S. Gu¨ngo¨r . Residual stress measurements in fibre reinforced titanium alloy composites. Acta Materialia 50 (2002) 2053–(2073).

DOI: 10.1016/s1359-6454(02)00050-2

[16] H. Huang, M. Wen, etc. The investigation of interface in SiC fiber reinforced TC17 titanium alloy matrix composites, Special and High performance structural materials, (2015).

DOI: 10.4028/www.scientific.net/msf.849.391
