Effect of Primer's Elastic Modulus on the Response of Multi Layer Bonded Steel Butt Joint under Izod Impact Test

Abstract:

The effect of the elastic modulus of the adhesive for primer on the impact response of the steel butt joint bonded by multi-layer under the Izod impact test is investigated using the elasto-plastic finite element method (FEM). The results obtained from numerical simulation show that both the elastic strain and plastic strain occurred at the point 0.5 mm away from the upper or lower surface after a certain time is increased significantly when the elastic modulus of the primer is decreased from 2.875 GPa to 0.825 GPa. The absolute value of the stress Sx response at these to nodes is decreased when the elastic modulus of the primer is decreased. The value of the stress Seqv is the highest one after 0.1 ms at the points 0.5 mm away from the upper or lower surface when the butt joint is bonded by the multi layer consisted of Epoxy-Phenolic-Epoxy adhesives.

You might also be interested in these eBooks

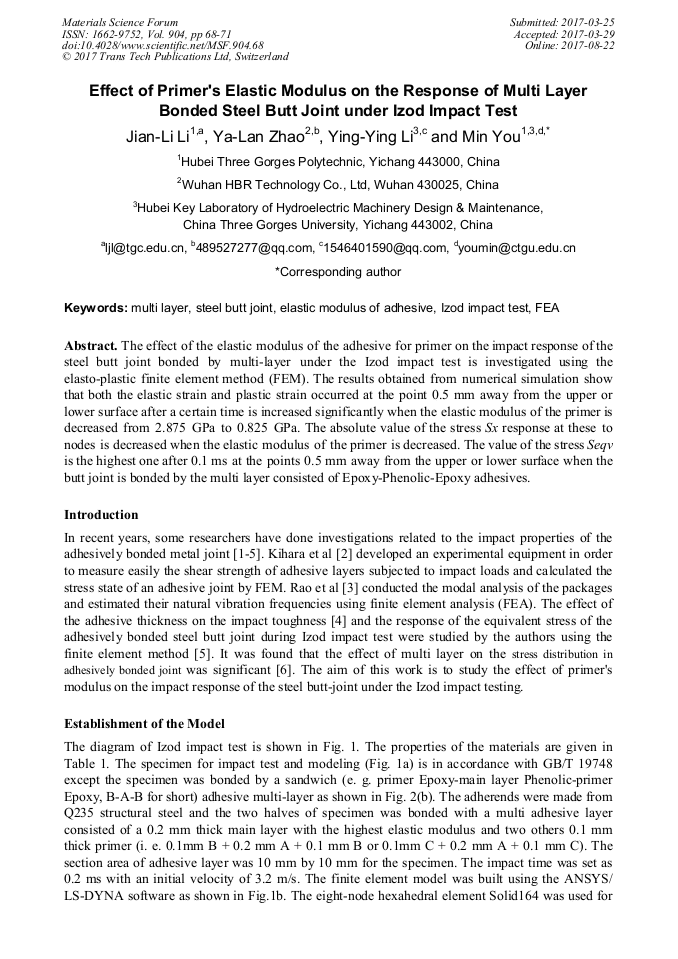

View Preview

Info:

Periodical:

Materials Science Forum (Volume 904)

Pages:

68-71

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.904.68

Citation:

Cite this paper

Online since:

August 2017

Authors:

Jian Li Li, Ya Lan Zhao, Ying Ying Li, Min You*

Keywords:

Elastic Modulus of Adhesive, Finite Element Analysis (FEA), Izod Impact Test, Multi Layer, Steel Butt Joint

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R. D. Adams, J. A. Harris, A critical assessment of the block impact test for measuring the impact strength of adhesive bonds, Int. J. Adhesion and Adhesives, 16 (1996) 61-71.

DOI: 10.1016/0143-7496(95)00050-x

Google Scholar

[2] K. Kihara, H. Isono, H. Yamabe, et al, A study and evaluation of the shear strength of adhesive layers subjected to impact loads, Int. J. Adhesion & Adhesives 23 (2003) 253-259.

DOI: 10.1016/s0143-7496(03)00004-6

Google Scholar

[3] Y. Rao, D. -Q. Lu, C. P. Wong, A study of impact performance of conductive adhesives, Int. J. Adhesion & Adhesives 24 (2004) 449-45.

DOI: 10.1016/j.ijadhadh.2003.12.003

Google Scholar

[4] X. -L Zheng, L. Wu, M. You, et al, Numerical analysis on the butt-joint under Izod impact test, Advanced Materials Research, 602-604 (2013) 2279-82.

DOI: 10.4028/www.scientific.net/amr.602-604.2279

Google Scholar

[5] M. You, K. Liu, X. Li, et al, On the stress responses in butt joint under Izod impact testing, Applied Mechanics and Materials, 488-489 (2014) 542-545.

DOI: 10.4028/www.scientific.net/amm.488-489.542

Google Scholar

[6] M. You, Y. -L Zhao, J. -L Li, et al, Numerical Analysis of Multi-layer on the stress distribution in adhesively bonded Single Lap Aluminum Joint. Advanced Materials Research. 1061-1062 (2015) 471-474.

DOI: 10.4028/www.scientific.net/amr.1061-1062.471

Google Scholar
