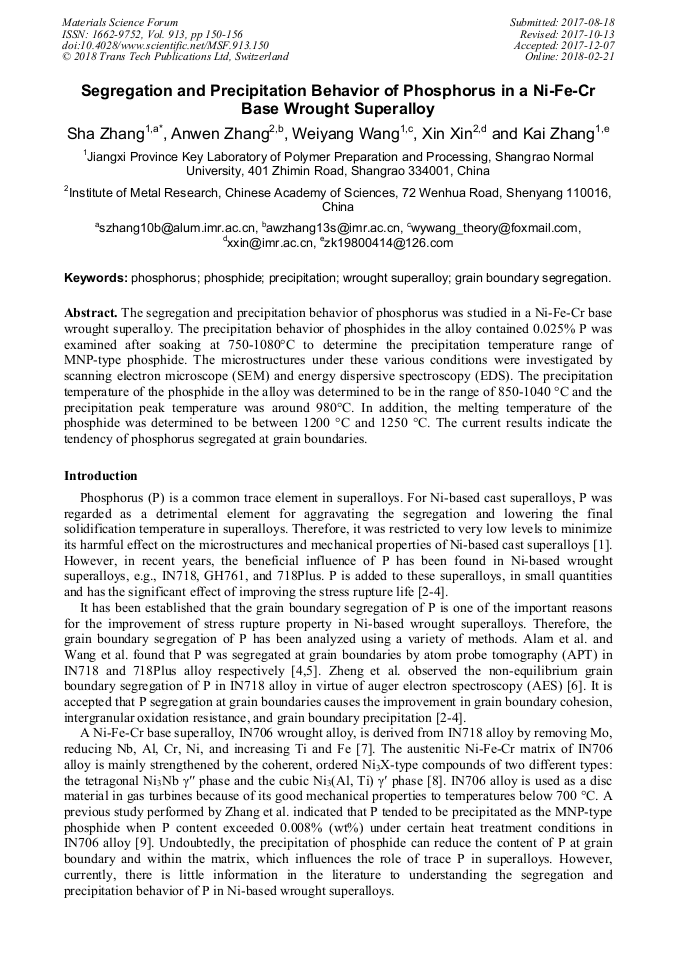

Segregation and Precipitation Behavior of Phosphorus in a Ni-Fe-Cr Base Wrought Superalloy

Abstract:

The segregation and precipitation behavior of phosphoruswas studied in aNi-Fe-Cr base wroughtsuperalloy. The precipitation behavior of phosphides in the alloy contained 0.025% Pwas examined after soaking at 750-1080°C to determine the precipitation temperature range of MNP-type phosphide. The microstructuresunder these various conditions wereinvestigated by scanning electron microscope(SEM) and energy dispersive spectroscopy (EDS). The precipitation temperature of the phosphide in the alloy was determined to be in the range of 850-1040 °C and the precipitation peak temperature was around 980°C.In addition, the melting temperatureof the phosphide was determined to be between 1200 °C and 1250 °C. The current results indicate the tendency of phosphorus segregated at grain boundaries.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 150-156
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.150
• Online since: February 2018
• Authors: Sha Zhang*, An Wen Zhang, Wei Yang Wang, Xin Xin, Kai Zhang
• Keywords: Grain Boundary Segregation, Phosphide, Phosphorus, Precipitation, Wrought Superalloy

References

[1] Y. X. Zhu, S. N. Zhang, L. Y. Xu, B. Jing, Z. Q. Hu, C. X. Shi, Superalloys with low segregation, Superalloys 1988. TMS, Warrendale, PA. (1988) 703-712.

[2] W. R. Sun, S. R. Guo, D .Z. Lu, Z. Q. Hu, Effect of phosphorus on the microstructure and stress rupture properties in an Fe-Ni-Cr base superalloy, Metall. Mater. Trans. A. 28 (1997) 649-654.

DOI: 10.1007/s11661-997-0050-5

[3] W. D. Cao, R. L. Kennedy, The effect of phosphorus on mechanical properties of alloy 718, Superalloys 718, 625, 706 and Various Derivatives 1994. TMS, Warrendale, PA. (1994) 463-477.

DOI: 10.7449/1994/superalloys_1994_463_477

[4] M. Q. Wang, J. H. Du, Q. Deng, Z. L. Tian, J. Zhu, The effect of phosphorus on the microstructure and mechanical properties of ATI 718Plus alloy, Mater. Sci. Eng. A. 626 (2015) 382-389.

DOI: 10.1016/j.msea.2014.12.094

[5] T. Alam, P. J. Felfer, M. Chaturvedi, L. T. Stephenson, M. R. Kilburn, J. M. Cairney, Segregation of B, P, and C in the Ni-based superalloy Inconel 718, Metall. Mater. Trans. A. 43 (2012) 2183-2191.

DOI: 10.1007/s11661-012-1085-9

[6] L. Zheng, T. D. Xu, Q. Deng, J. X. Dong, Experimental study on the characteristic of grain-boundary segregation of phosphorus in Ni-base superalloy, Mater. Lett. 62 (2008) 54-56.

DOI: 10.1016/j.matlet.2007.04.082

[7] P. W. Schilke, J. J. Pepe, R. C. Schwant, Alloy 706 metallurgy and turbine wheel application, Superalloys 718, 625, 706 and Various Derivatives 1994. TMS, Warrendale, PA. (1994) 1-12.

DOI: 10.7449/1994/superalloys_1994_1_12

[8] K. A. Heck, The time-temperature-transformation behavior of alloy 706, Superalloys 718, 625, 706 and Various Derivatives 1994. TMS, Warrendale, PA. (1994) 393-404.

DOI: 10.7449/1994/superalloys_1994_393_404

[9] S. Zhang, L. J. Huang, A. W. Zhang, L. X. Yu, X. Xin, W. R. Sun, X. F. Sun, Segregation of phosphorus and precipitation of MNP-type phosphide at the grain boundary of IN706 superalloy, J. Mater. Sci. Technol. 33 (2017) 187-191.

DOI: 10.1016/j.jmst.2016.09.010

[10] S. Zhang, X. Xin, L. X. Yu, A. W. Zhang, W. R. Sun, X. F. Sun, Effect of phosphorus on the grain boundary cohesion and g¢ precipitation in IN706 alloy, Metall. Mater. Trans. A. 47 (2016) 4092-4103.

DOI: 10.1007/s11661-016-3495-6

[11] M. Q. Wang, J. H. Du, Q. Deng, Z. L. Tian, J. Zhu, Effect of the precipitation of the η-Ni3Al0. 5Nb0. 5 phase on the microstructure and mechanical properties of ATI 718Plus, J. Alloy Compd. 701 (2017) 635-644.

DOI: 10.1016/j.jallcom.2017.01.145
