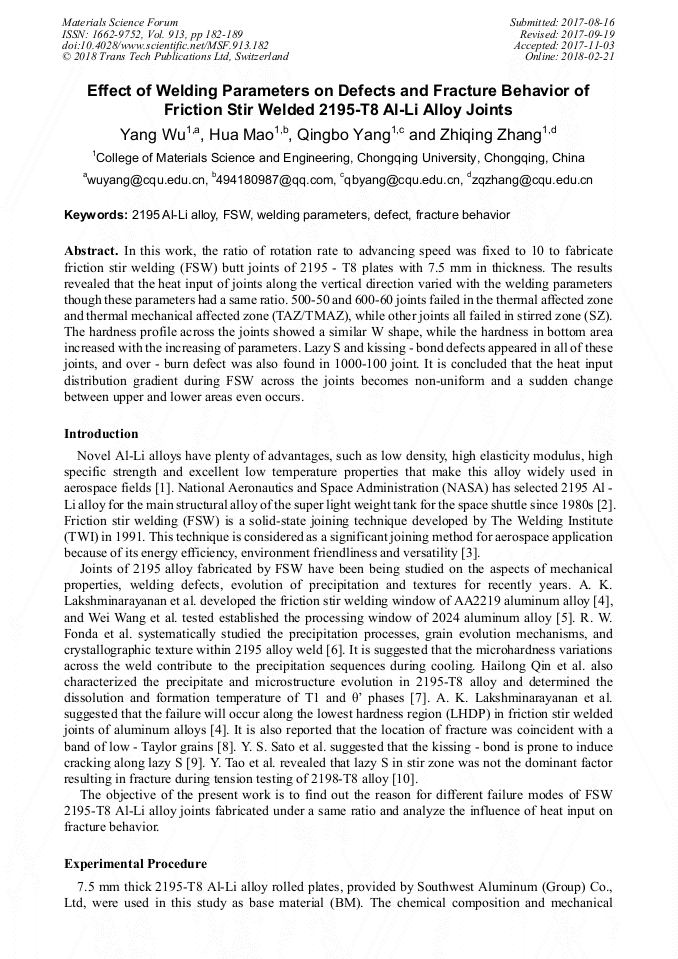

Effect of Welding Parameters on Defects and Fracture Behavior of Friction Stir Welded 2195-T8 Al-Li Alloy Joints

Abstract:

In this work, the ratio of rotation rate to advancing speed was fixed to 10 to fabricate friction stir welding (FSW) butt joints of 2195 - T8 plates with 7.5 mm in thickness. The results revealed that the heat input of joints along the vertical direction varied with the welding parameters though these parameters had a same ratio. 500-50 and 600-60 joints failed in the thermal affected zone and thermal mechanical affected zone (TAZ/TMAZ), while other joints all failed in stirred zone (SZ). The hardness profile across the joints showed a similar W shape, while the hardness in bottom area increased with the increasing of parameters. Lazy S and kissing - bond defects appeared in all of these joints, and over - burn defect was also found in 1000-100 joint. It is concluded that the heat input distribution gradient during FSW across the joints becomes non-uniform and a sudden change between upper and lower areas even occurs.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 182-189
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.182
• Online since: February 2018
• Authors: Yang Wu, Hua Mao, Qing Bo Yang, Zhi Qing Zhang*
• Keywords: 2195 Al-Li Alloy, Defect, Fracture Behavior, FSW, Welding Parameters

References

[1] Zheng Ziqiao, Li Jinfeng, Chen Zhiguo, et al. Alloying and Microstructural Evolution of Al-Li Alloys. The Chinese Journal of Nonferrous Metals, 10 (2011) 2337-2351.

[2] P.S. Chen, A.K. Kuruvilla, T.W. Malone, et al. The Effects of Artificial Aging on the Microstructure and Fracture Toughness of Al-Cu-Li Alloy 2195. Journal of Materials Engineering and Performance, 7 (1998) 682-690.

DOI: 10.1361/105994998770347576

[3] Z.Y. MA. Friction Stir Processing Technology: A Review. Metallurgical and Materials Transactions A, 39A (2008) 642-658.

[4] A.K. Lakshminarayanan, S. Malarvizhi, V. Balasubramanian. Developing Friction Stir Welding Window for AA2219 Aluminium Alloy. Transactions of Nonferrous Metals Society of China, 21 (2011) 2339-2347.

DOI: 10.1016/s1003-6326(11)61018-2

[5] Wang Wei, Shi Qingyu, Li Ting, et al. Mechanical Properties and Welding Parameters Window of Friction Stir Welding. Transactions of the China Welding Institution, 05 (2008) 77-80.

[6] R.W. Fonda, J.F. Bingert. Precipitation and Grain Refinement in a 2195 Al Friction Stir Weld. Metallurgical and Materials Transactions A-physical Metallurgy and Materials Science, 37A (2006) 3593-3604.

DOI: 10.1007/s11661-006-1054-2

[7] Hailong, Qin, Hua Zhang, Huiqiang Wu. The Evolution of Precipitation and Microstructure in Friction Stir Welded 2195-T8 Al–Li Alloy. Materials Science and Engineering A, 626 (2015) 322-329.

DOI: 10.1016/j.msea.2014.12.026

[8] Wesley A. Tayon, Marcia S. Domack, Eric K. Hoffman. Texture Evolution within the Thermomechanically Affected Zone of an Al-Li Alloy 2195 Friction Stir Weld. Metallurgical and Materials Mransactions A, 44A (2013) 4906-4913.

DOI: 10.1007/s11661-013-1802-z

[9] Y.S. Sato, H. Takauchi, S.H.C. Park. Characteristics of the kissing-bond in friction stir welded Al alloy 1050. Materials Science and Engineering A, 405 (2005) 333-338.

DOI: 10.1016/j.msea.2005.06.008

[10] Y. Tao, D.R. Ni, B.L. Xiao, et al. Origin of unusual fracture in stirred zone for friction stir welded 2198-T8 Al-Li alloy joints. Materials Science and Engineering A, 693 (2017) 1-13.

DOI: 10.1016/j.msea.2017.03.079

[11] Gadakh, Vijay S.; Kumar, Adepu. Friction stir welding window for AA6061-T6 aluminium alloy. Proceedings of the Institution of Mechanical Engineers Part B, 228 (2014) 1172-1181.

DOI: 10.1177/0954405413510289

[12] Wang Dong, Dong Chunlin, Xiao Bolv, et al. Effect of Welding parameters on microstructure and mechanical properties of friction stir welded AlCuLi alloy joints. Acta Metallurgica Sinica, 9 (2012) 1109-1115.

DOI: 10.3724/sp.j.1037.2012.00163

[13] Y. Tao, Z. Zhang, D.R. Ni. Influence of welding parameter on mechanical properties and fracture behavior of friction stir welded Al–Mg–Sc joints. Materials Science and Engineering A, 612 (2014) 236-245.

DOI: 10.1016/j.msea.2014.06.051

[14] Zhang Hua, Qin Hailong, Wu Huiqiang. Effect of process parameters on mechanical properties of friction stir welded 2195 Al-Li alloy joints. Transactions of the China Welding Institution, 04 (2016) 19-23, 129-130.

[15] Wang Weibing, Dong Cunlin, Luan Guohong, et al. Model for S-Line Characteristics in FSW. Aeronautical Manufacturing Technology, S1 (2015) 7-10.
