Effect of Planar Anisotropy and Tension-Compression Asymmetry of CP-Ti on its Deep Drawing Behavior at Room Temperature

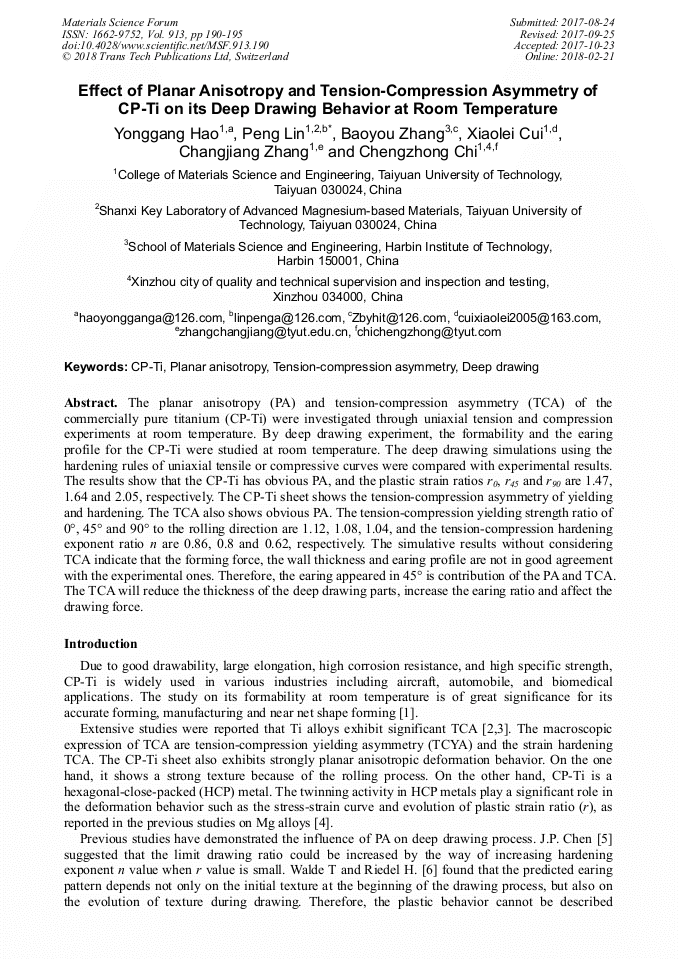

Abstract:

The planar anisotropy (PA) and tension-compression asymmetry (TCA) of the commercially pure titanium (CP-Ti) were investigated through uniaxial tension and compression experiments at room temperature. By deep drawing experiment, the formability and the earing profile for the CP-Ti were studied at room temperature. The deep drawing simulations using the hardening rules of uniaxial tensile or compression curves were compared with experimental results. The results show that the CP-Ti has obvious PA, and the plastic strain ratios r₀, r₄₅ and r₉₀ are 1.47, 1.64 and 2.05, respectively. The CP-Ti sheet shows the tension-compression asymmetry of yielding and hardening. The TCA also shows obvious PA. The tension-compression yield strength ratio of 0°, 45° and 90° to the rolling direction are 1.12, 1.08, 1.04, and the tension-compression hardening exponent ratio are 0.86, 0.8 and 0.62, respectively. The simulative results without considering TCA indicate that the forming force, the wall thickness and earing profile are not in good agreement with the experimental ones. Therefore, the earing appeared in 45° is contribution of the PA and TCA. The TCA will reduce the thickness of the deep drawing parts, increase the earing ratio and affect the drawing force.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 190-195
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.190
• Online since: February 2018
• Authors: Yong Gang Hao, Peng Lin*, Bao You Zhang, Xiao Lei Cui, Chang Jiang Zhang, Cheng Zhong Chi
• Keywords: Cp-Ti, Deep Drawing, Planar Anisotropy, Tension-Compression Asymmetry

References

[1] K. Shi, D.B. Shan, W.C. Xu, et al., Near net shape forming process of a titanium alloy impeller, J. Mater. Process. Technol. 12 (2007) 582-585.

DOI: 10.1016/j.jmatprotec.2006.11.033

[2] V Tuninetti, G Gilles, O Milis, et al., Anisotropy and tension-compression asymmetry modeling of the room temperature plastic response of Ti-6A1-4V, Int. J. Plast. 67 (2015) 53-68.

DOI: 10.1016/j.ijplas.2014.10.003

[3] Q.W. Zhang, J. Zhang, Y. Wang, Effect of strain rate on the tension-compression asymmetric responses of Ti-6.6Al-3.3Mo-1.8Zr-0.29Si, Mater. Des. 61 (2014) 281-285.

DOI: 10.1016/j.matdes.2014.05.004

[4] T. Hama, H. Takuda, Crystal plasticity finite-element simulation of work hardening behavior in a magnesium alloy sheet under biaxial tension, Comput. Mater. Sci. 51 (1) (2012) 156-164.

DOI: 10.1016/j.commatsci.2011.07.026

[5] J.P. Chen ,J.Q. Qian, L.I. Sheng-Zhi, Influence of hardening index on drawing performance of cylinder cup, Heavy Mach. 1 (2012) 22-25.

[6] Walde T, Riedel H, Simulation of earing during deep drawing of magnesium alloy AZ31, Acta mater. 55 (2007) 867-874.

DOI: 10.1016/j.actamat.2006.09.007

[7] C. Ghosh, V.V. Basabe, J.J. Jonas, Steel Res. Int. 84 (2013) 490-494.

[8] Y.Q. Song, Z.P. Guan, M.A. Pinkui, Theoretical and experimental standardization of strain hardening index in tensile deformation, Acta Metall. Sin. 42 (2006) 673-680.

[9] S. Yi, J. Bohelen, F. Heinemann, D. Letzig, Mechanical anisotropy and deep drawing behavior of AZ31 and ZE10 magnesium alloy sheets, Acta Mater. 58 (2010) 592-605.

DOI: 10.1016/j.actamat.2009.09.038

[10] T. Ohwue, Y. Kobayashi, Analysis of earing in circular-shell deep-drawing of bcc and hcp sheet metals, Procedia Eng. 81 (2014) 887-892.

DOI: 10.1016/j.proeng.2014.10.093

[11] W.F. Hosford, R.M. Caddell, Metal Forming: Mechanics and Metallurgy. Cambridge, (2007).

[12] W. Tang, S. Huang, D. Li, et al., Mechanical anisotropy and deep drawing behaviors of AZ31 magnesium alloy sheets produced by unidirectional and cross rolling, J. Mater. Process. Technol. 215 (2015) 320-326.

DOI: 10.1016/j.jmatprotec.2014.08.020

[13] P.D. Barros, J.L. Alves, M.C. Oliveira, et al., Modeling of tension-compression asymmetry and orthotropy on metallic materials: Numerical implementation and validation, Int. J. Mech. Sci. 114 (2016) 217-232.

DOI: 10.1016/j.ijmecsci.2016.05.020

[14] N. Kotkunde, A.D. Deole, A.K. Gupta, et al., Experimental and numerical investigation of anisotropic yield criteria for warm deep drawing of Ti-6Al-4V alloy, Mater. Des. 63 (2014) 336-344.

DOI: 10.1016/j.matdes.2014.06.017

[15] M. Vrh, M. Halilovič, B. Starman, et al., Capability of the BBC2008 yield criterion in predicting the earing profile in cup deep drawing simulations, Eur. J. Mech. 45 (2014) 59-74.

DOI: 10.1016/j.euromechsol.2013.11.013

[16] N. Kotkunde, G. Krishna, S. K. Shenoy, et al., Experimental and theoretical investigation of forming limit diagram for Ti-6Al-4V alloy at warm condition, Int. J. Mater. Form. (2015) 1-12.

DOI: 10.1007/s12289-015-1274-3
